Home Relay & Sensor High quality electric 12v jideco relays

High quality electric 12v jideco relays

China supplier High quality electric 12v jideco relays

  • Brand:

    Gangyuan
  • Item NO.:

    HRS1KH3
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    yellow
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

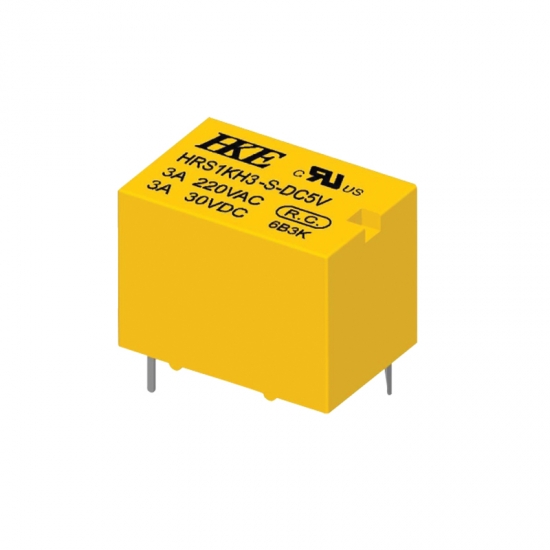

China supplier High quality electric 12v jideco relays

Product Description:

  • Microminiature relay
  • Dimensions: 15.6×10.6×11.8 (mm) High sensitivity
  • Contact: 1 Form C
  • Max. Switching capacity 3A

Contact Form

1 Form A

Contact Material

Ag Alloy

Contact Rating

3A 220VAC/30VDC

Contact Resistance

Max. 50mΩ (6VDC 1A)





Load

Max. Switching Voltage

220VAC/30VDC

Max. Switching Current

3A

Max. Switching Power

660VA, 90W

Min. Switching Load

5VDC, 100mA



Life

Electrical

100,000 operations

Mechanical

10,000,000 operations



Insulation Resistance

Min. 100MΩ 500VDC

Dielectric Strength

Between open contacts

750VAC, 1min



Between coil and contacts

1,000VAC, 1min

Operate Time

Max. 6ms

Release Time

Max. 5ms

Operating Temperature

-25℃ to +70

Humidity

35~95 RH, +40

Shock Resistance

Endurance

1,000m/s2



Misoperation

100m/s2

Vibration Resistance

Endurance

10~55Hz, 1.5mm double amplitude



Misoperation

10~55Hz, 1.5mm double amplitude

Weight

Approximately 4.0g

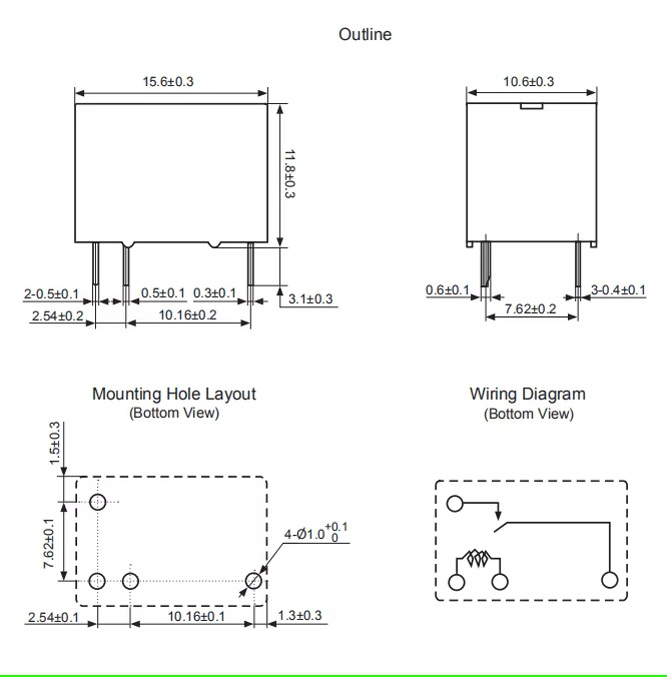

jideco 12v relay Dimension:

HRS1KH3 Outline.png
