Wenzhou Gangyuan Electronics Co.,Ltd.

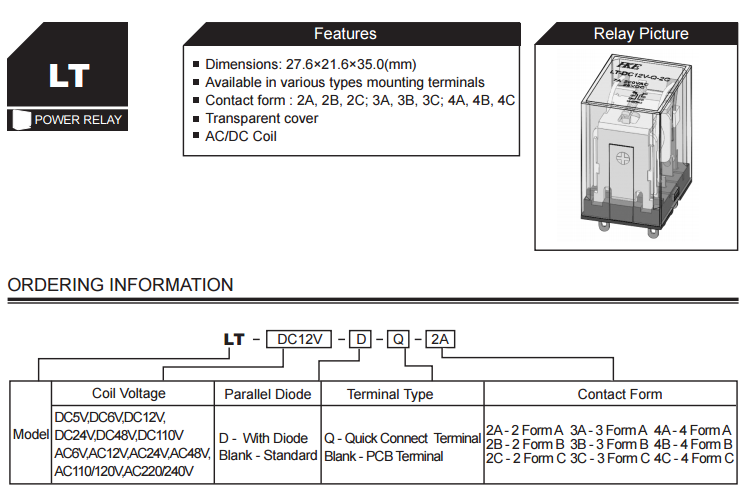

Dimensions: 27.6×21.6×35.0(mm)
Available in various types mounting terminals
Contact form : 2A, 2B, 2C, 3A, 3B, 3C, 4A, 4B, 4C
Transparent cover
AC/DC Coil
Item NO.:
LTOrder(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
ZhejiangColor:
YellowShipping Port:
Ningbo/ShenzhenLead Time：

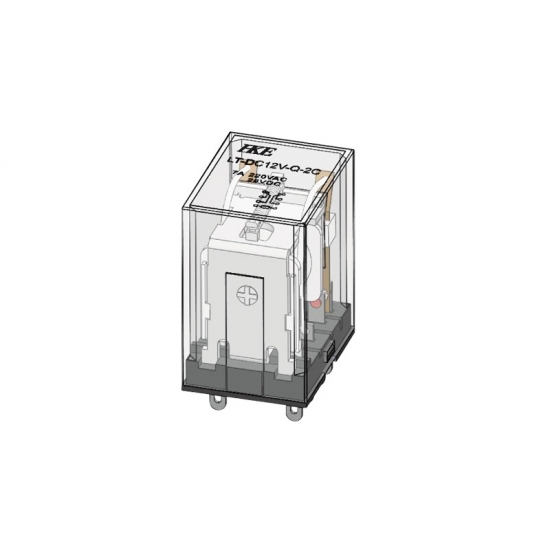

20 working days after paymentProduct Item: Transparent Cover Power Relay
Datasheet
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Microminiature relay Dimensions: 15.6×10.6×11.8 (mm) High sensitivity Contact: 1 Form C Max. Switching capacity 3A
Miniature relay Dimensions: 19.0×15.5×15.8(mm) Contact: 1 Form A, 1 Form B, 1 Form C TV-5 rating UL Class F insulation
High contact capacity, up to 30A/250VAC Dielectric strength of 2500V between coil and contacts Available in both PCB and quick connect terminals Exposed or concealed quick connect terminals Applications: industrial and home appliances, HVAC, etc
Miniature automotive relay Available in both open frame and plastic sealed package Sealed: 17.3×14.8×19.5(mm) Open: 15.7×12.7×17.7(mm) Numerous contact arrangements High switching capacity 20A
Generl automotive relay. Dimension:27.8*27.8*24.6mm 40A switching current Bracket type installtion can be adopted. A set normal open,a set normal closed,a set of transformation.
1.Power relay. 2.Dimension:31.8*27.4*14mm 3.PCB type 4.Class F insulation system
Microminiature relay Dimensions: 15.6×10.6×11.8 (mm) High sensitivity Contact: 1 Form C Max. Switching capacity 3A
CMP8 Series SPTD Power Reply 12V dc relay
