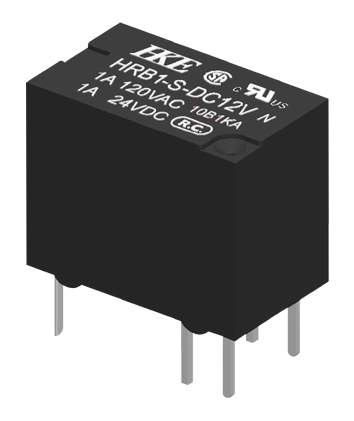

Miniature General Purpose Low power 3V, 5V, 6V, 9V, 12V, 24V DC relay

  • Microminiature relay
  • Dimensions: 15.6×10.6×11.8 (mm) High sensitivity
  • Contact: 1 Form C
  • Max. Switching capacity 3A

  • Brand:

    Gangyuan
  • Item NO.:

    HRB1
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang
  • Color:

    Black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

 Relay Features:

  • Microminiature relay
  • Dimensions: 15.6×10.6×11.8 (mm) High sensitivity
  • Contact: 1 Form C
  • Max. Switching capacity 3A
Relay Specification:

Contact Form

1 Form C

Contact Material

AuAg overlay

Contact Rating

1A 125VAC/24VDC

2A 125VAC/24VDC

Contact Resistance

Max. 50mΩ (6VDC 0.1A)





Load

Max. Switching Voltage

125VAC/30VDC



Max. Switching Current

2A



Max. Switching Power

250VA, 48W



Min. Switching Load

5VDC, 10mA



Life

Electrical

100,000 operations



Mechanical

5,000,000 operations


Insulation Resistance

Min. 1,000MΩ 500VDC

Dielectric

Strength

Between open contacts

500VAC, 1min



Between coil and contacts

1,000VAC, 1min

Operate Time

Max. 5ms

Release Time

Max. 5ms

Operating Temperature

-40 to +70

Humidity

35~95 RH, +40

Shock

Resistance

Endurance

1,000m/s2



Misoperation

100m/s2

Vibration Resistance

Endurance

10~55Hz, 1.5mm double amplitude



Misoperation

10~55Hz, 1.5mm double amplitude

Weight

Approximately 2.2g



OUTLINE, WIRING DIAGRAM, MOUNTING HOLE LAYOUT (UNIT: mm)

HRB1 outline.png
