Wenzhou Gangyuan Electronics Co.,Ltd.
They are a type of momentary switch designed to be used in electronic circuits and devices to provide tactile feedback to the user when pressed.
Brand:
GangyuanItem NO.:
KAN0611 SeriesOrder(MOQ):
10pcs samplePayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-15 working days for paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

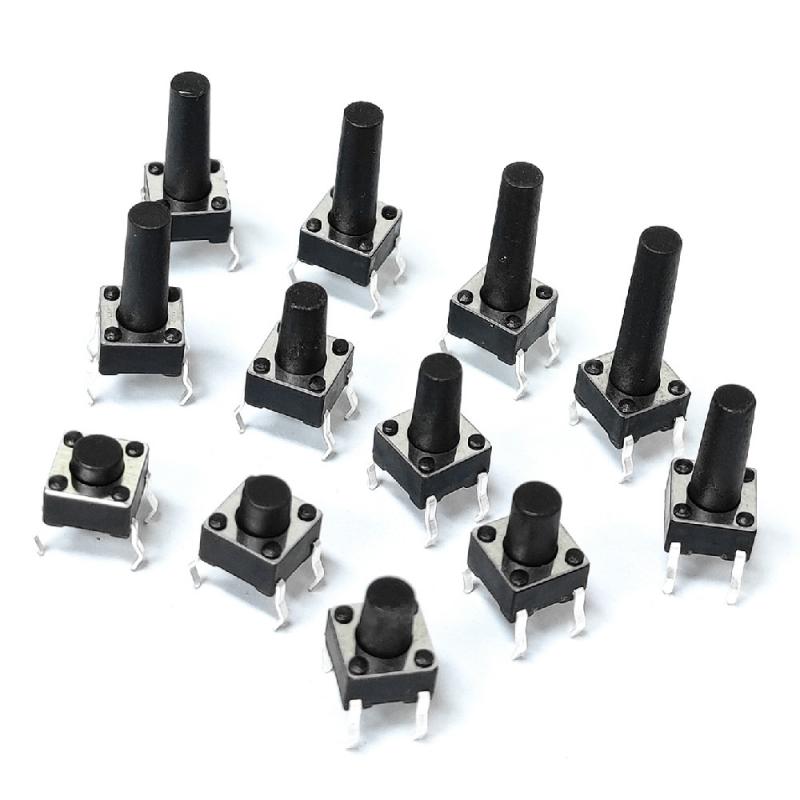

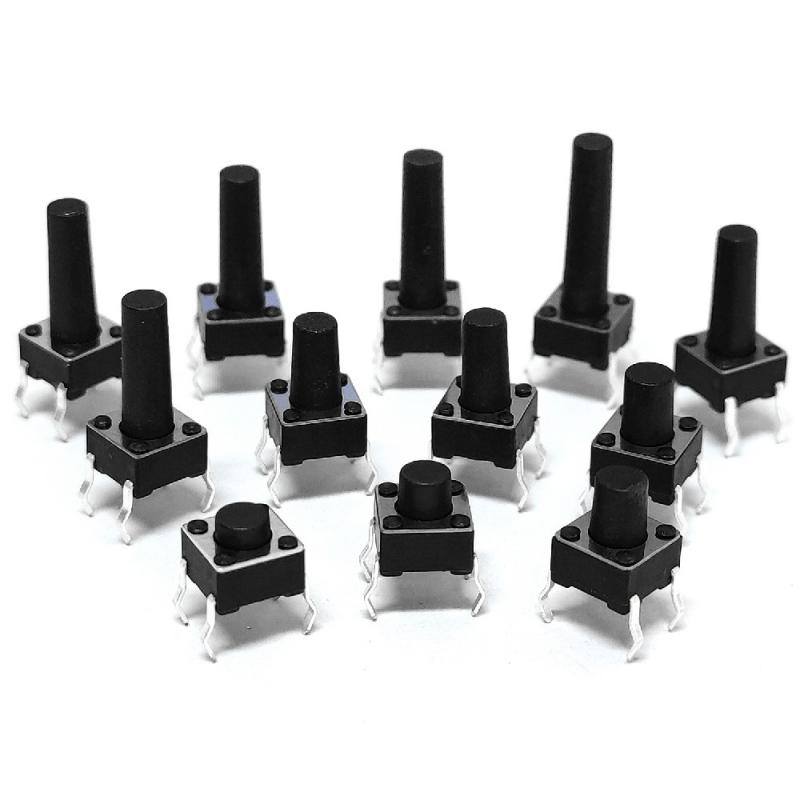

IP4XVariety actuator height 6x6mm mini panel pcb tact switch for dip
Basic Information
Type:Straight micro 6mm tact switches
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Life: 100,000cycles

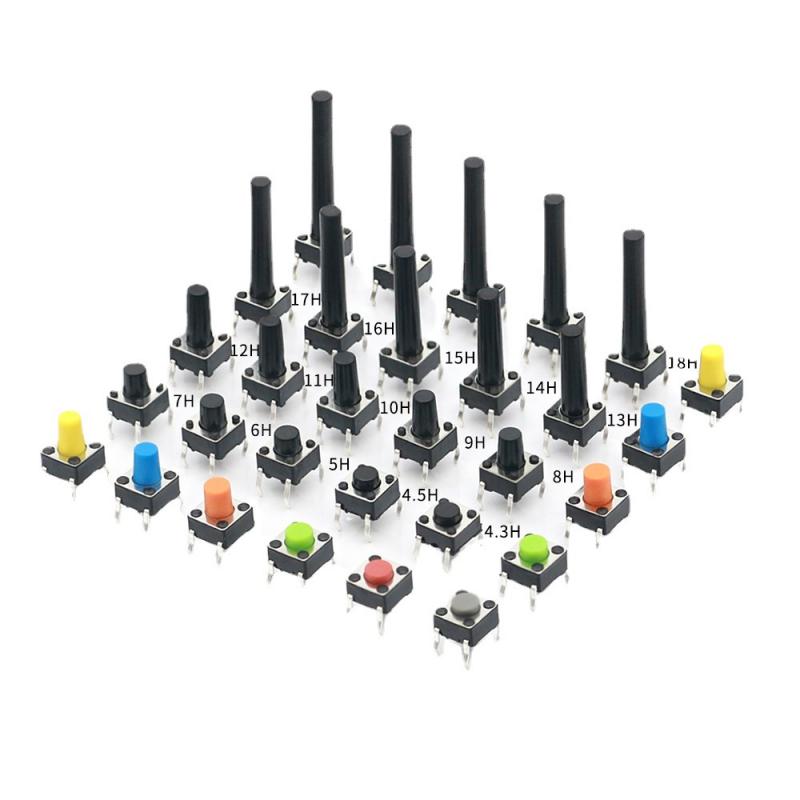

Product height: 4.3mm- 28mm
Benefits
• Compact size 6x6mm
• Various operating heights
• Multiple options for operating force
• Button color customization
• Rohs Compliant and compatible

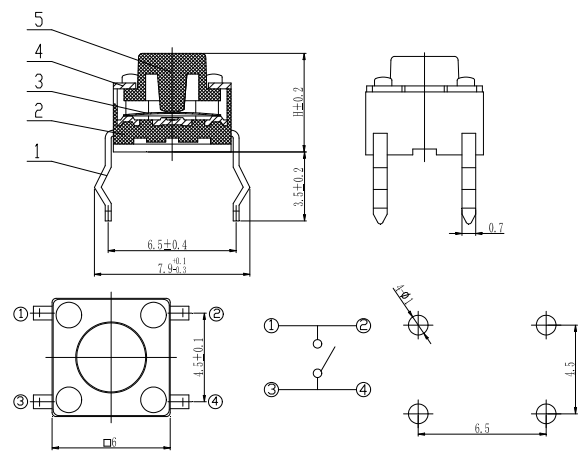

Tact Switch Dimension
Function: Momentary action tact switch
Packing
| Product Number | Inner Packing | Carton Size | Quantity(PCS) | N.W | G.W |
| KAN0611 (4.3H-5.5H) | 1000pcs/bag, 20box/carton | 45*35*28CM | 60000 | 18KG | 20KG |
|
KAN0611 (6H-17H) |
1000pcs/bag, 20box/carton |
45*35*28CM |
40000 | 13KG | 15KG |
|
KAN0611 (18H-21H) |
1000pcs/bag, 20box/carton |
45*35*28CM |
20000 | 9KG | 14KG |
More Category matching, fine workmanship, product are more than 2000 specification

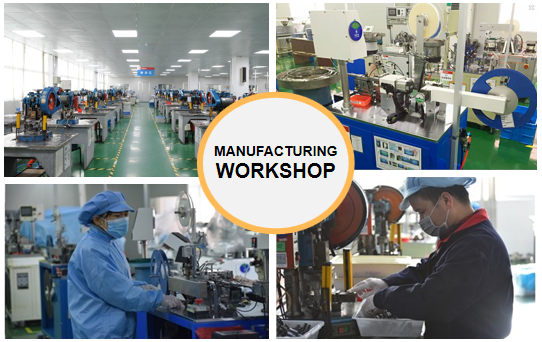

Company strength （Tact Switch Manufacturer）
Gangyuan Electronics was established in 1994 and has 30 years of manufacturing experience. For 30 years, it has been focusing on
the research and development and manufacture of tact switches, micro switches and other electronic switches.More than 2000 products.
The company's registered capital is 34.48 million RMB,and it has 3 modern standard workshops. Coversa total area of 63148㎡
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
KAN0656: DC 12v 50mA, smd, water resistance type tact switch.
KAN0616: Dip switch, water resistance IP67, 6*6mm mini tact switch.
KAN0611: DC 12v 50mA, 6*6mm, 4 pins tact switch.
6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch.
12V IP67 waterproof switch push button tact switch china, 4pin dip tact switch, 100,000/200,000 cycles for optional,use for Kitchen appliances, smart toilet covers. Small appliances, white electricity, black electricity require a variety of operational switches for waterproof construction.
This kind of switch is silent, often used in car industry.
Item: KAN0641 Size: 6*6*H (4.3-18mm) Rating: 12VDC 50mA Operating life: 60,000/ 80,000/ 100,000 cycles Operating force: 100gf, 160gf, 260gf MOQ: 1000
KAN0673: 6×6mm, side horizontal type tact switch.
For inquiries about our products or pricelist, please leave to us and we will be in touch within 24 hours.
