Home Relay & Sensor HKE Miniature Automotive Relay CMA2
Automotive Relay

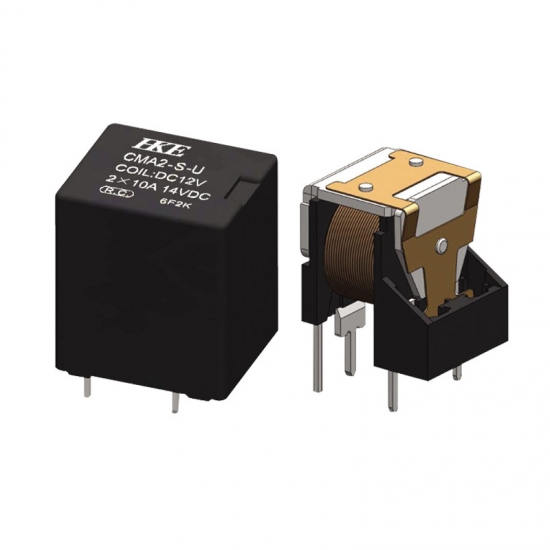

HKE Miniature Automotive Relay CMA2

Miniature automotive relay

Available in both open frame and plastic sealed package

Sealed: 17.3×14.8×19.5(mm)

Open: 15.7×12.7×17.7(mm)

Numerous contact arrangements

High switching capacity 20A


  • Item NO.:

    CMA2

  • Order(MOQ):

    1000pcs

  • Payment:

    100% T/T Before Production

  • Product Origin:

    Zhejiang

  • Color:

    Black

  • Shipping Port:

    Ningbo/Shenzhen

  • Lead Time：

    20 working days after payment
Contact Us

  • Product Detail

Product Item: HKE Miniature Automotive Relay CMA2

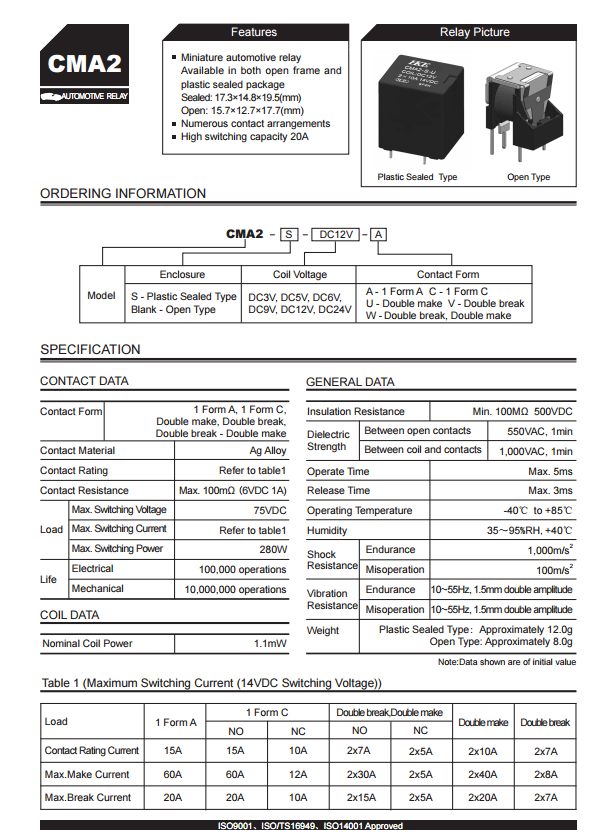

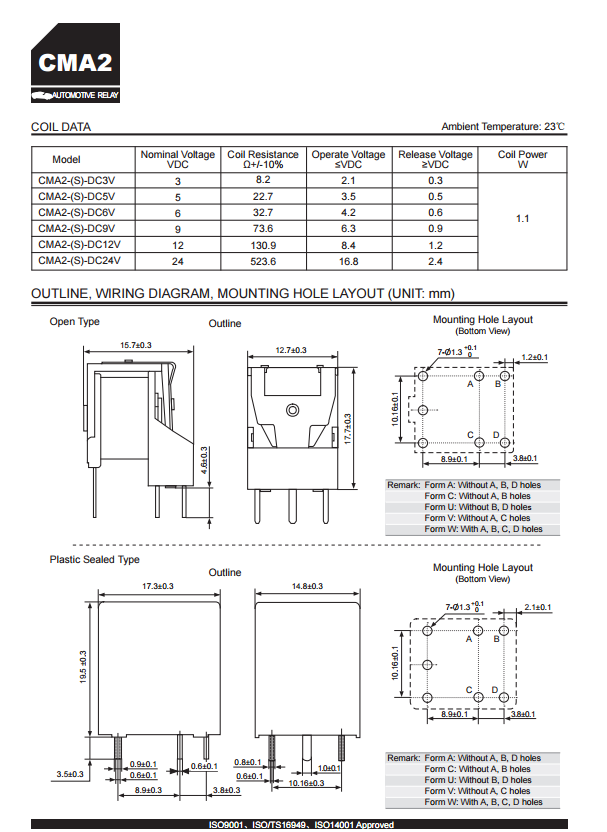

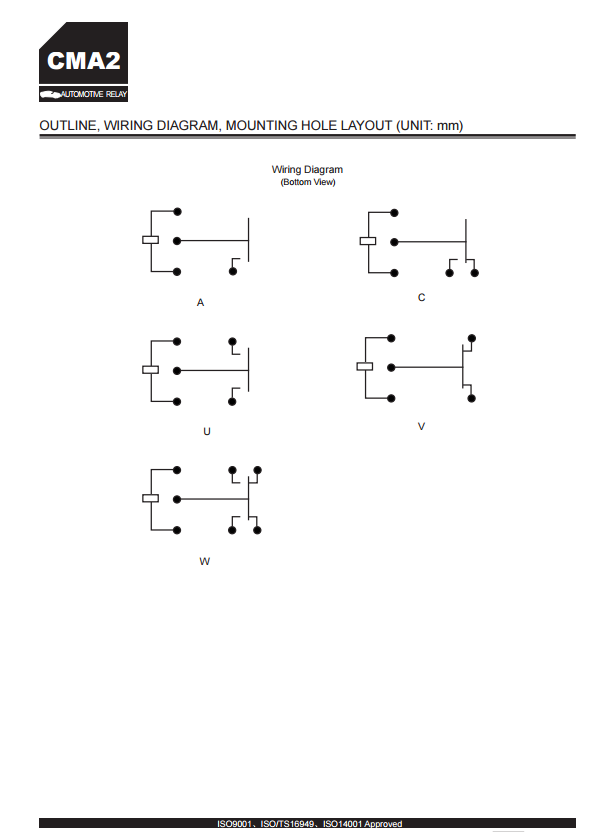

Datasheet


Related Tags :

Relay 12V Auto Relay PCB Relay Electrical Relay Solid State Relay Latching Relay
