Micro SMT Right Angle Tactile Switch

The Mini touch switch is a miniaturized electronic switch commonly used where a small, lightweight switching solution is required. They can be widely used in a variety of electronic products and equipment, such as remote controls, toys, household appliances, medical equipment and so on.

Brand:
Gangyuan
Item NO.:
KAN1542-0291B0201
Order(MOQ):
3000
Payment:
100% before production
Product Origin:
Wenzhou
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7-15 working days

lllumination
No
Length
Width
IP Rating
No IP Rating
Series
KAN
Mounting Type
Surface Mount
Actuator Height:

Product Detail

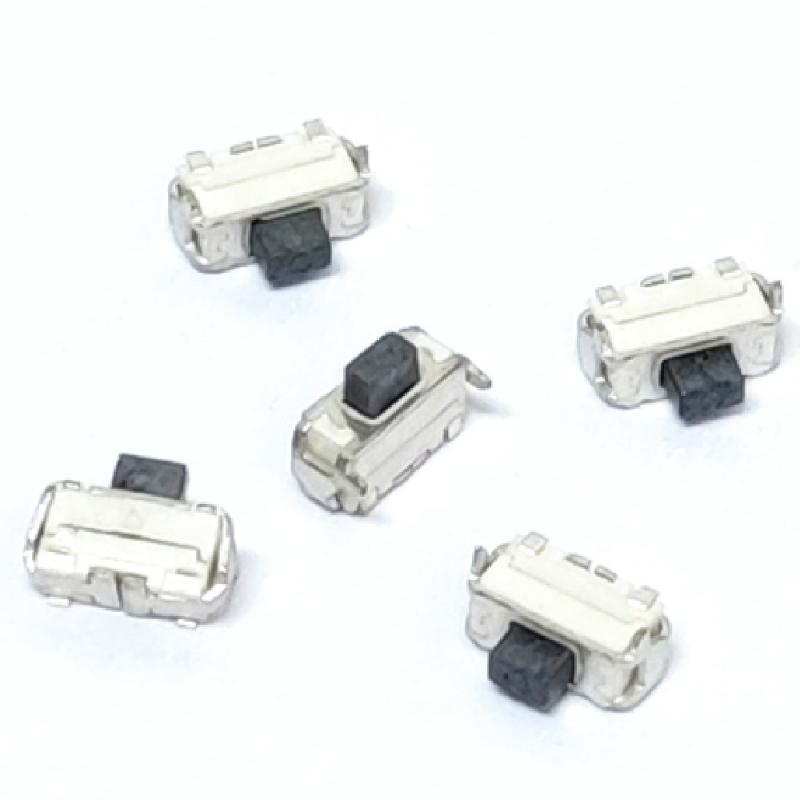

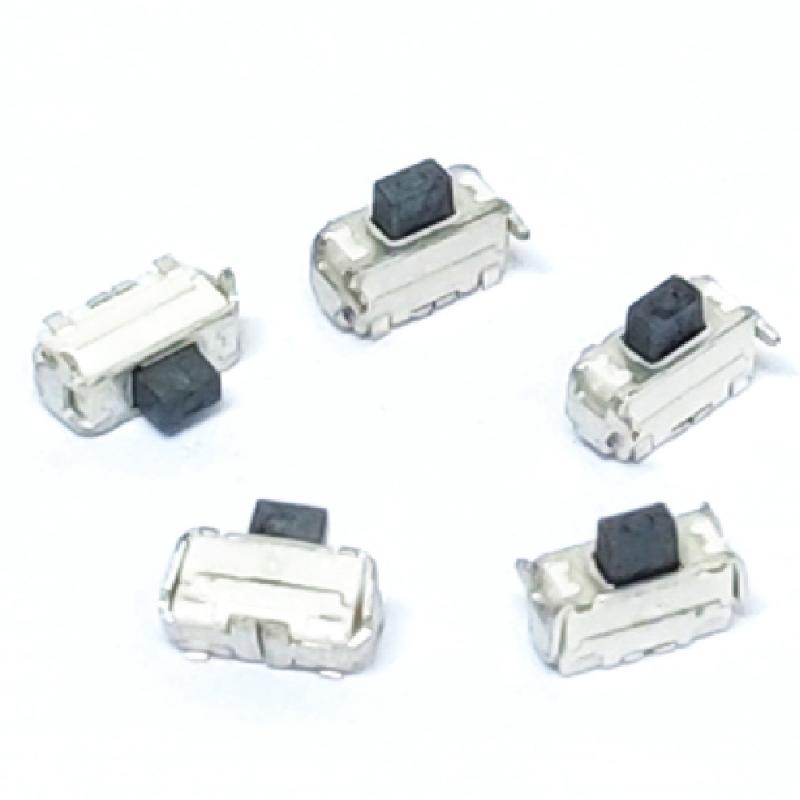

3.5mm height mobile photo switch SPST normally open mini tact switch

Characteristics

Type: Right angle surface mount tact switch

Ratings: DC 12V 50mA（Max）DC 1V 10μA （Min）

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Operating Force: 160±50 gf

Product height: 2.9mm

Full Travel: 0.25±0.1mm

Operation life: 200,000 cycles

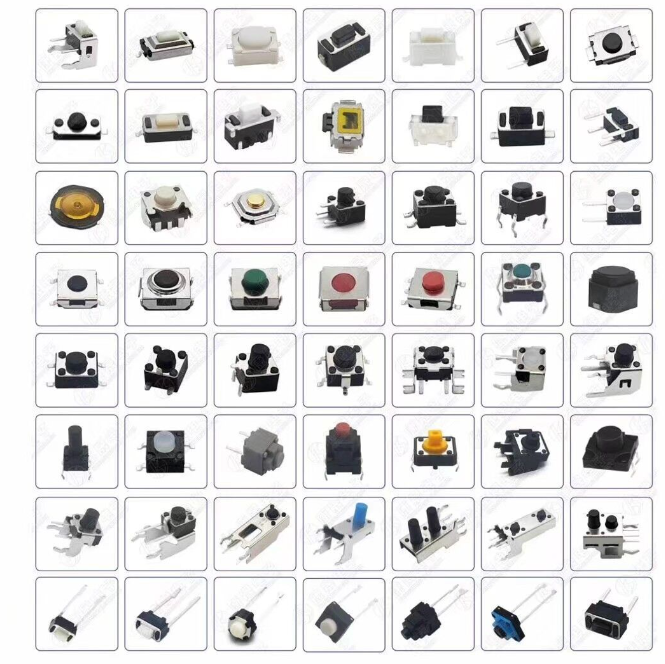

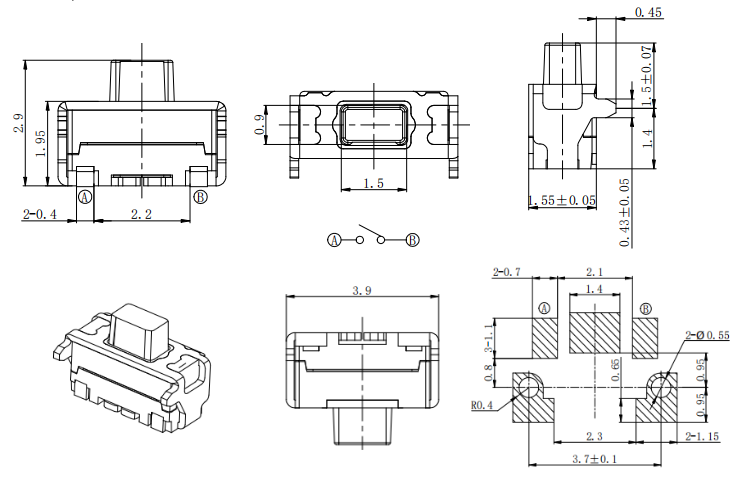

Tactile switch sizes

Feature & Benefits

Small size: Mini tact switches are usually small, which makes them easy to integrate into compact spaces.

Easy operation: They can be operated with just a light push, without requiring a lot of force.

Durability: Although small in size, they are usually designed to be durable and can withstand a certain number of presses.

Low power consumption: Tact switches usually consume low power when operating.

Various types: There are many types to choose from, including single-pole single-throw (SPST), single-pole double-throw (SPDT), etc.

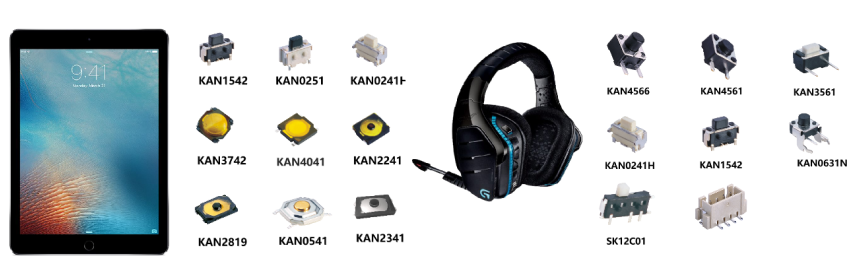

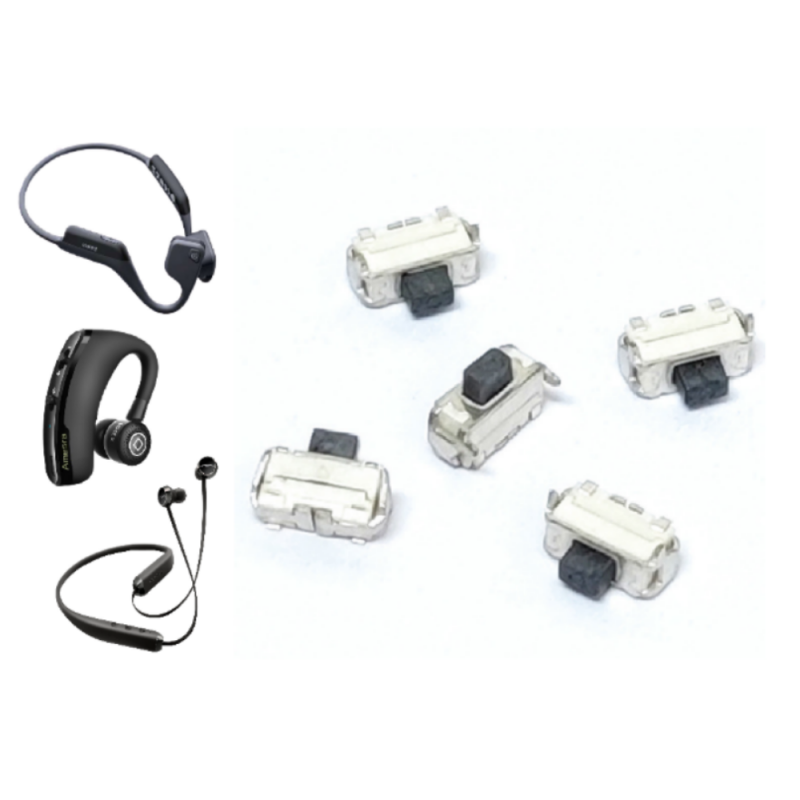

Tactile switch application

Tact switch for consumer electronics

Wearable Electronics / Telecommunication / Computer Peripherals
