Wenzhou Gangyuan Electronics Co.,Ltd.

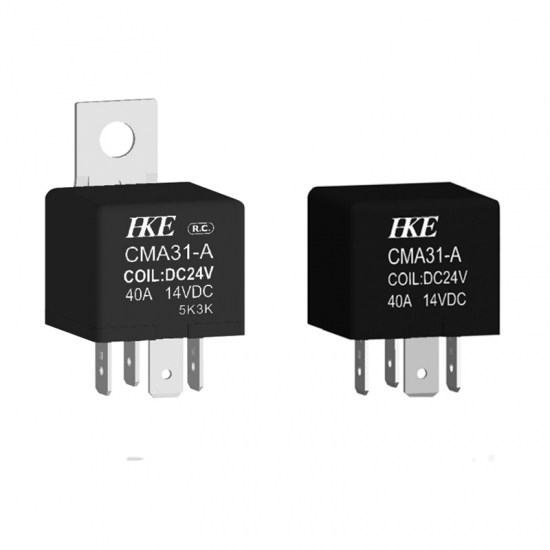

Generl automotive relay.

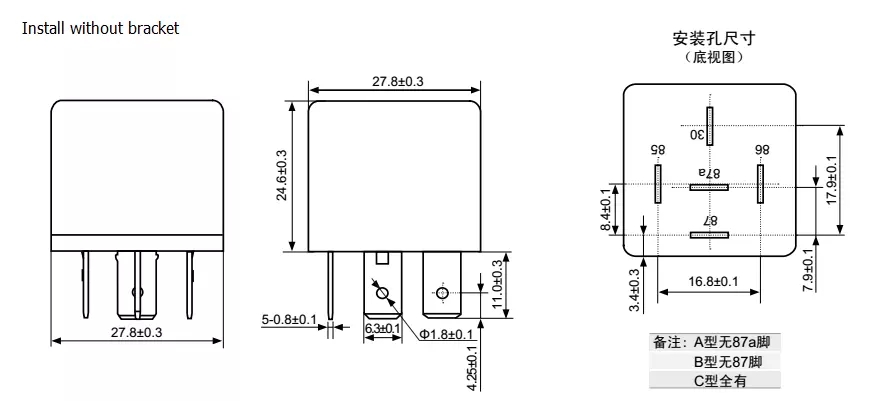

Dimension:27.8*27.8*24.6mm
40A switching current

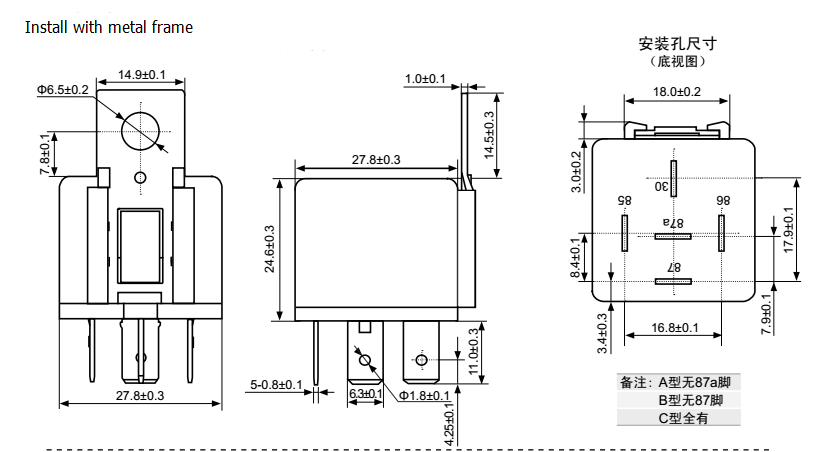

Bracket type installtion can be adopted.

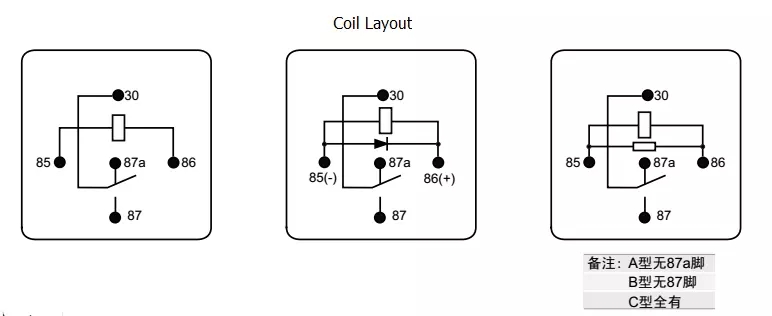

A set normal open,a set normal closed,a set of transformation.
Item NO.:
CMA31-24V-COrder(MOQ):
50Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
20 working days after paymentHKE Brand Auto Relay 12v 40a Power Reply in Stock
1.Generl automotive relay.
2.Dimension:27.8*27.8*24.6mm
3.40A switching current
4.Bracket type installtion can be adopted.
5.A set normal open,a set normal closed,a set of transformation.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Dimensions: 27.6×21.6×35.0(mm) Available in various types mounting terminals Contact form : 2A, 2B, 2C, 3A, 3B, 3C, 4A, 4B, 4C Transparent cover AC/DC Coil
Microminiature relay Dimensions: 15.6×10.6×11.8 (mm) High sensitivity Contact: 1 Form C Max. Switching capacity 3A
Miniature relay Dimensions: 19.0×15.5×15.8(mm) Contact: 1 Form A, 1 Form B, 1 Form C TV-5 rating UL Class F insulation
High contact capacity, up to 30A/250VAC Dielectric strength of 2500V between coil and contacts Available in both PCB and quick connect terminals Exposed or concealed quick connect terminals Applications: industrial and home appliances, HVAC, etc
Miniature automotive relay Available in both open frame and plastic sealed package Sealed: 17.3×14.8×19.5(mm) Open: 15.7×12.7×17.7(mm) Numerous contact arrangements High switching capacity 20A
1.Power relay. 2.Dimension:31.8*27.4*14mm 3.PCB type 4.Class F insulation system
Microminiature relay Dimensions: 15.6×10.6×11.8 (mm) High sensitivity Contact: 1 Form C Max. Switching capacity 3A
CMP8 Series SPTD Power Reply 12V dc relay
