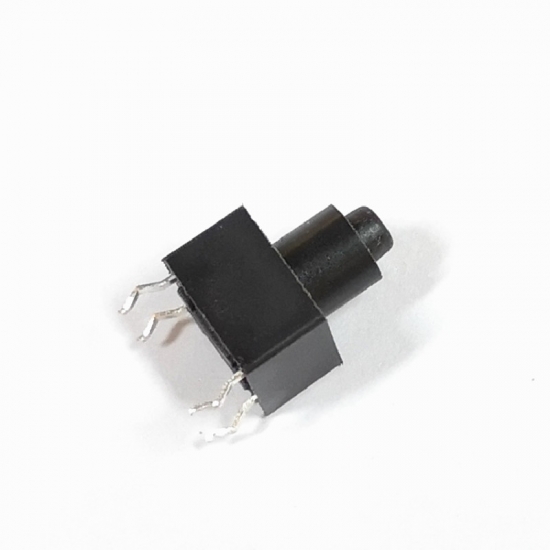

6x6 tact switch with protective shell

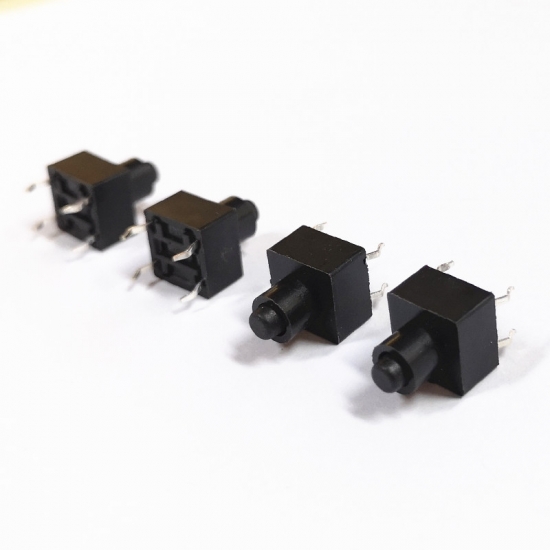

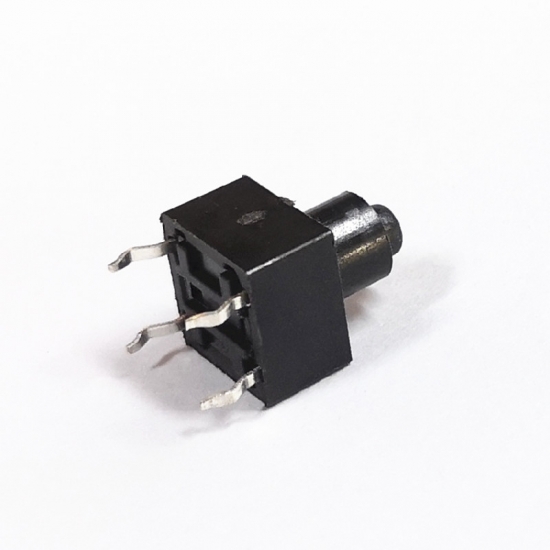

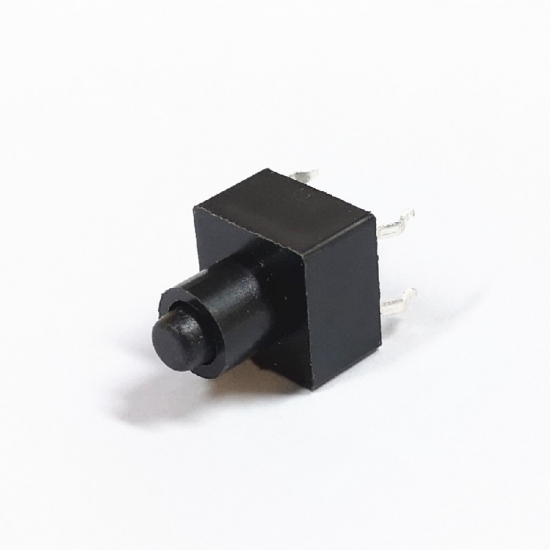

6x6 dip pcb mount 4 pin tactile switch

The size of tact switch product is 6x6mm, and the product has a shell cover. So the overall size is 8x8mm.

 Tactile switch datasheet

Type: Push button tact switch

Height: 4.3~19.5mm

Operating force: 100/130/160/260gf/500gf

Rating: 12VDC,50mA

Contact resistance:≤100mΩ

Insulation resistance: ≥100MΩ

Life: 100000/200000/500000/1000000/2000000 cycles

Soldering temperature: 350℃ Max.

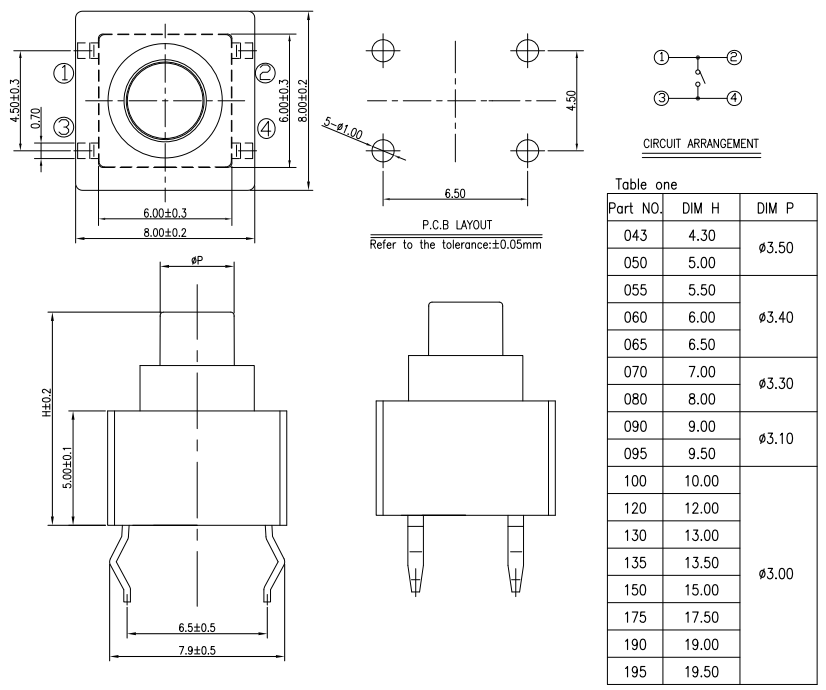

 Tactile switch diagram

 Tactile switch symbol

The tact switch is also called a sensitive switch. When in use, it can meet the conditions of operating force and apply pressure to the switch operation direction. The switch function is closed and connected. When the pressure is removed, the switch is opened. Its internal structure depends on the force of the metal shrapnel. Realize on-off. The tact switch is composed of: insert, base, shrapnel, button, and cover. The waterproof tact switch adds a layer of polyimide film on the shrapnel.

 Precautions

• 1. When using through-hole printed circuit boards and non-recommended circuit boards, the effects of thermal stress will change, so please fully confirm the soldering conditions in advance.

• 2. When welding twice, please do it after the first welding part returns to normal temperature. Continuous heating may deform the periphery, loosen terminals, fall off, and reduce electrical characteristics.

• 3. When the tact switch is operated, if a load above the specified value is applied, the switch may be damaged. Be careful not to apply more than the specified force on the switch.
