High quality Reley module 125VAC/30VDC electronics 8 pin power relay 24v
Item NO.:
HRS2H-S-DC12V-TOrder(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
yellowShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentProduct Description:
|
Product name |
Relay |
|
Contact Form |
2 Form C |
|
Contact Material |
AuAg overlay |
|
Contact Rating |
1A 2A 120VAC/24VDC |
|
Contact Resistance |
Max. 50mΩ (6VDC 0.1A) |
|
Max. Switching Voltage |
125VAC/30VDC |
|
Max. Switching Current |
2A |
|
Mechanical |
15,000,000 operations |
|
Insulation Resistance |
Min. 1000MΩ 500VDC |
|
Operating Temperature |
-25℃ to +70℃ |
Dimension:

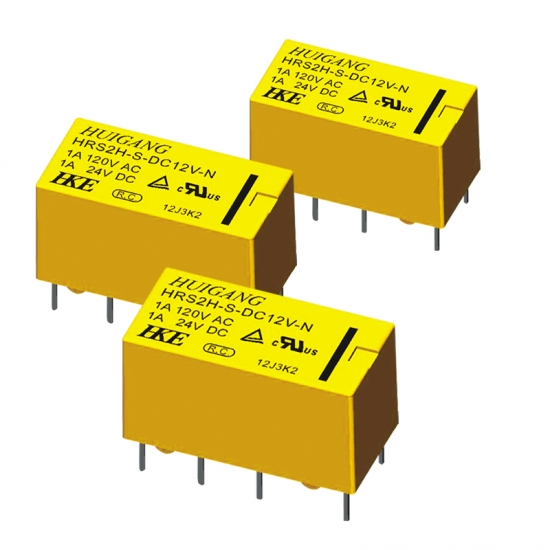

Products photos:
