New Design 12x12mm IP67 Tact Switch - 1 million times, to meet the needs of customers with long product life cycle.
Brand:
GangyuanItem NO.:
KAN1241F-0739B1001-BOrder(MOQ):
100Payment:
100% before ProductionProduct Origin:
China, ZhejiangColor:
MetalShipping Port:
NingboLead Time：
7-15 working daysOutline (mm)
12.00mm x 12.00mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating

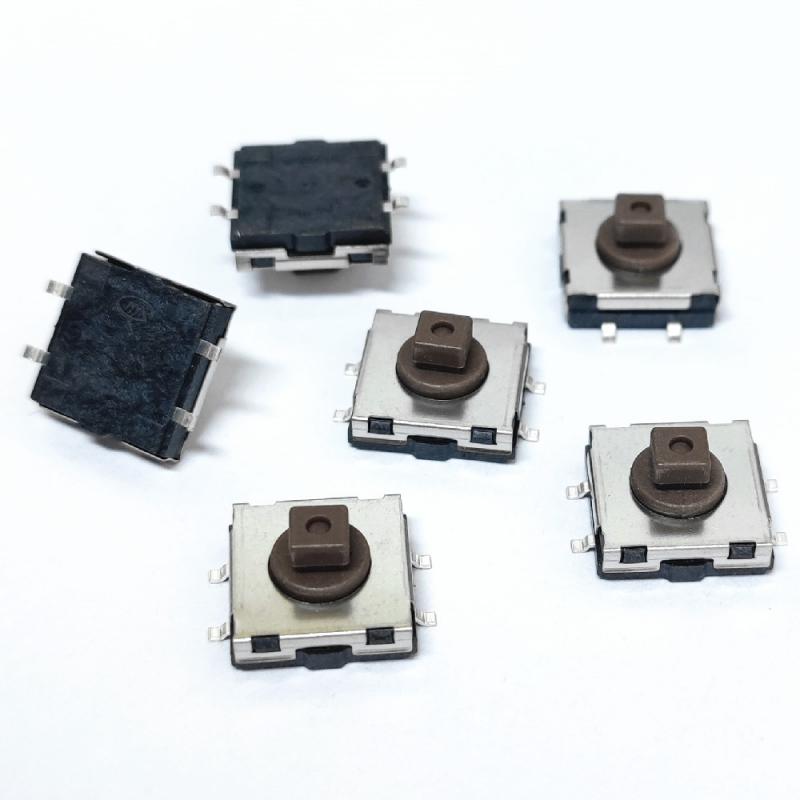

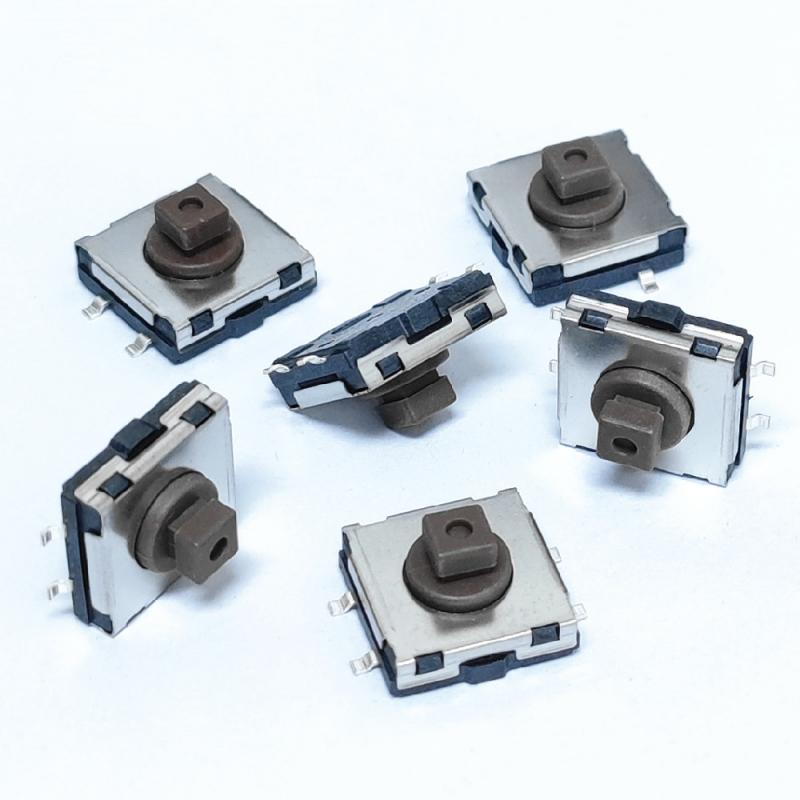

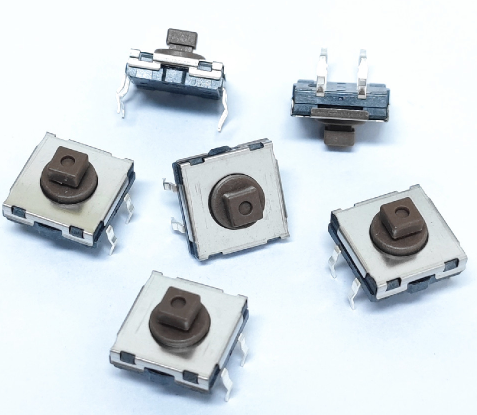

IP67Original SMD mount type 12*12 Waterproof tact switch for Industrial equipment
Specification
Type:Square brown waterpoof Tact Switch
Ratings: DC 12V 50mA（Max） DC 1V 10μA （Min）
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating Force: 160±50gf
Life: 1000,000 cycles
Product height: 7.3mm

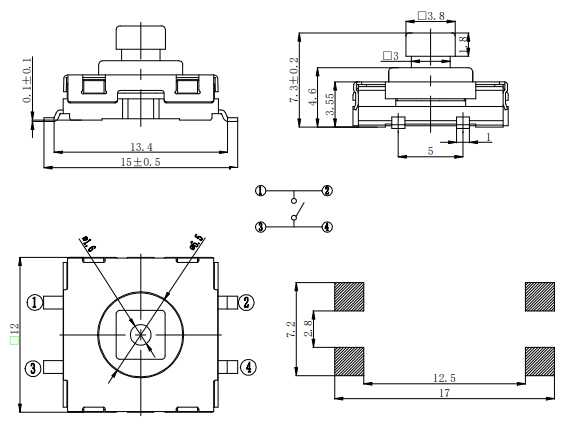

Dimention
New design

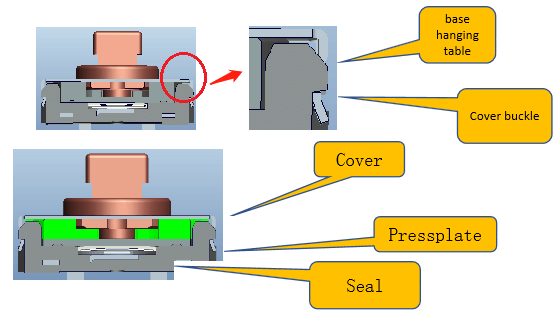

Appearance: The cover and the base adopt a snap-fit design - improving the reliability of the assembly and use of the switch.
Structure: Waterproof and dustproof - IP67, Solve the problem that when the customer's product is used in a harsh environment, it is easy
for foreign objects such as water or dust to enter the inside of the switch, causing its conduction failure and making it unusable.
Performance: High life - 1 million times, to meet the needs of customers with long product life cycle

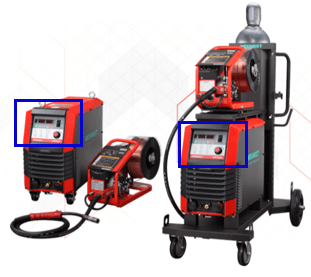

Application: Industrial equipment - Electric welding machine ( function adjustment switch)
THT Type choose
12*12 IP67 DIP tact switch

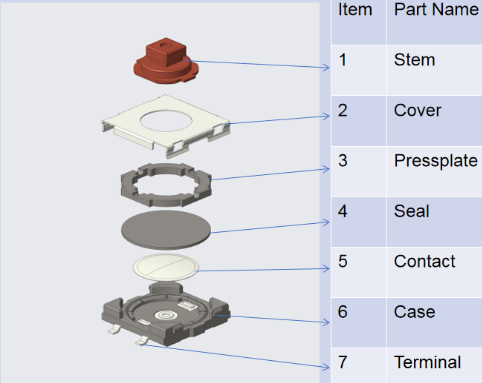

Tact Switch disassembly diagram
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
