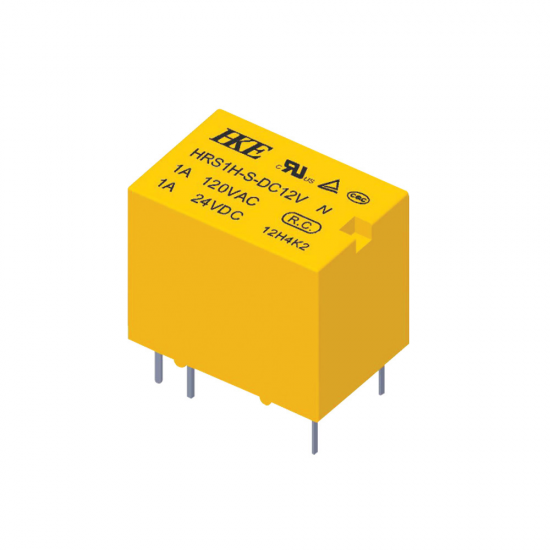

dc Signal relay

Nice Quality Signal Relay electronic 3v 5v 6v 9v 12v 24vdc 3v dc volt relay

Brand:
Gangyuan
Item NO.:
HRS1
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
yellow
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Product Detail

Nice Quality Signal Relay electronic 3v 5v 6v 9v 12v 24vdc 3v dc volt relay

Product Description:

Product name	Relay
Contact Form	1 Form C
Contact Material	AuAg overlay
Contact Rating	1A 120VAC/24VDC 3A 120VAC/24VDC
Contact Resistance	Max. 50mΩ (6VDC 0.1A)
Max. Switching Voltage	220VAC/30VDC
Max. Switching Current	3A
Mechanical	10,000,000 operations
Insulation Resistance	Min. 100MΩ 500VDC
Operating Temperature	-25℃ to +70℃

Dimension:
