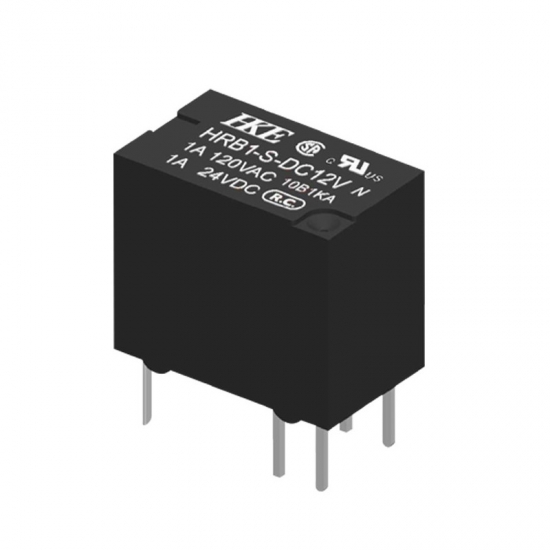

12vdc 1a pcb Relay

Signal Relay High Sensitivity 150mW Relay 12vdc 1a pcb Relay model

Brand:
Gangyuan
Item NO.:
HRB1
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Product Detail

Signal Relay High Sensitivity 150mW Relay 12vdc 1a pcb Relay model

Product Description:

Product name	Relay
Contact Form	1 Form C
Contact Material	AuAg overlay
Contact Rating	1A 125VAC/24VDC 2A 125VAC/24VDC
Contact Resistance	Max. 50mΩ (6VDC 0.1A)
Max. Switching Voltage	125VAC/30VDC
Max. Switching Current	2A
Mechanical	5,000,000 operations
Insulation Resistance	Min. 1000MΩ 500VDC
Operating Temperature	-40℃ to +70℃

Dimension:
