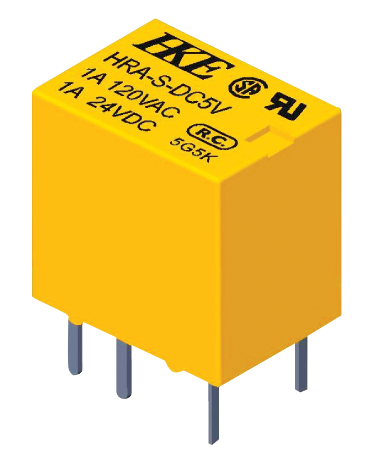

PCB Usage Miniature relay

General Purpose Sealed Protect Feature and PCB Usage Miniature relay

Brand:
HKE
Item NO.:
HRA
Order(MOQ):
50
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
yellow
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Product Detail

General Purpose Sealed Protect Feature and PCB Usage Miniature relay

Basic Information

Insulation Resistance		Min. 100MΩ 500VDC
Dielectric Strength	Between open contacts		500VAC, 1min
	Between coil and contacts		500VAC, 1min
Operate Time		Max. 6ms
Release Time		Max. 4ms
Operating Temperature		-25℃ to +70℃
Humidity		35~95 RH, +40℃
Shock Resistance	Endurance	1,000m/s2
	Misoperation	100m/s2
Vibration Resistance	Endurance	10~55Hz, 1.5mm double amplitude
	Misoperation	10~55Hz, 1.5mm double amplitude
Weight		Approximately 1.7g

Dimension

OUTLINE, WIRING DIAGRAM, MOUNTING HOLE LAYOUT (UNIT: mm)

HRA outline.png
