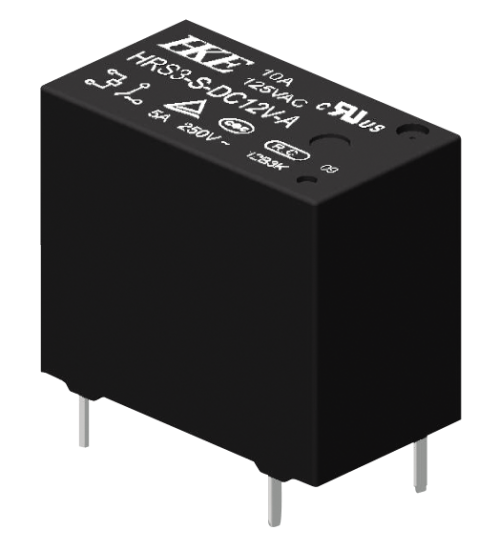

4 Pin 5a 10a 28VDC Sealed Protect Feature and Mini Power relay
Basic Information
|
Contact Form |
1 Form A, 1 Form C |
||
|
Contact Material |
Ag Alloy |
||
|
Contact Rating |
A: 10A 125VAC, 5A 250VAC/28VDC C: NO/NC: 5A/3A 250VAC/28VDC |
||
|
Contact Resistance |
Max. 100mΩ (6VDC 1A) |
||
|
Load |
Max. Switching Voltage |
250VAC/28VDC |
|
|
|
Max. Switching Current |
10A |
|
|
|
Max. Switching Power |
1,250VA, 280W |
|
|
|
Min. Switching Load |
5VDC, 100mA |
|
|
Life |
Electrical |
100,000 operations |
|
|
|
Mechanical |
10,000,000 operations |
|
|
Insulation Resistance |
Min. 1000MΩ 500VDC |
|||
|
Dielectric Strength |
Between open contacts |
1,000VAC, 1min |
||
|
|
Between coil and contacts |
A: 3,500VAC, 1 min C: 2,500VAC, 1 min |
||
|
Operate Time |
Max. 10ms |
|||
|
Release Time |
Max. 5ms |
|||
|
Operating Temperature |
-40℃ to +85℃ |
|||
|
Humidity |
35~95 RH, +40℃ |
|||
|
Shock |
|
Endurance |
1,000m/s2 |
|
|
Resistance |
Misoperation |
100m/s2 |
||
|
Vibration |
|
Endurance |
10~55Hz, 1.5mm double amplitude |
|
|
Resistance |
Misoperation |
10~55Hz, 1.5mm double amplitude |
||
|
Weight |
Approximately 6.0g |
|||
