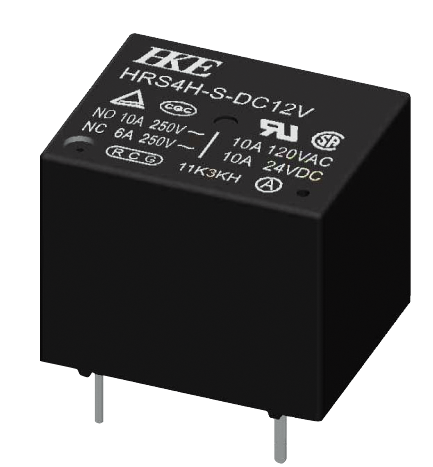

General Purpose Usage Sealed Protect Feature low Voltage Relay
Brand:
HKEItem NO.:
HRS4Order(MOQ):
50Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after payment
Basic Information
|
Contact Form |
1 Form A, 1 Form B, 1 Form C |
||
|
Contact Material |
Ag Alloy |
||
|
Contact Rating |
A: 15A 125VAC, 10A 250VAC C: NO: 10A 250VAC/24VDC NC: 6A 250VAC/24VDC TV-5 125VAC |
||
|
Contact Resistance |
Max. 100mΩ (6VDC 1A) |
||
|
Load |
Max. Switching Voltage |
250VAC/28VDC |
|
|
|
Max. Switching Current |
15A |
|
|
|
Max. Switching Power |
2,500VA, 280W |
|
|
|
Min. Switching Load |
5VDC, 100mA |
|
|
Life |
Electrical |
100,000 operations |
|
|
|
Mechanical |
10,000,000 operations |
|
|
Insulation Resistance |
Min. 1000MΩ 500VDC |
|||
|
Dielectric Strength |
Between open contacts |
750VAC, 1 min |
||
|
Between coil and contacts |
1,500VAC, 1min |
|||
|
Operate Time |
Max. 10ms |
|||
|
Release Time |
Max. 5ms |
|||
|
Operating Temperature |
-40℃ to +85℃ |
|||
|
Humidity |
35~95 RH, +40℃ |
|||
|
Shock Resistance |
Endurance |
1,000m/s2 |
||
|
Misoperation |
100m/s2 |
|||
|
Vibration Resistance |
Endurance |
10~55Hz, 1.5mm double amplitude |
||
|
Misoperation |
10~55Hz, 1.5mm double amplitude |
|||
|
Weight |
Approximately 10.0g |
|||
