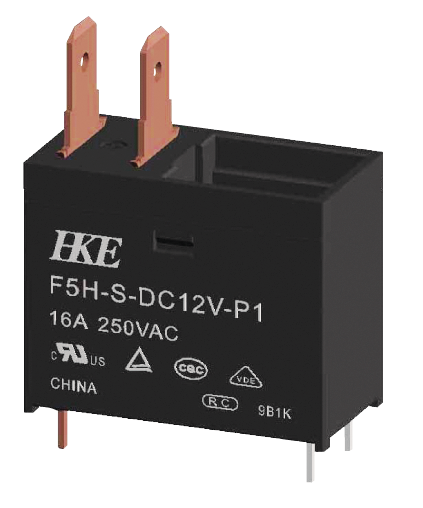

Good price wholesale 20A 4 Pin Sealed Protect Feature and PCB Usage Power Relay
Brand:
HKEItem NO.:
F5Order(MOQ):
50Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after payment
Good price wholesale 20A 4 Pin Sealed Protect Feature and PCB Usage Power Relay
Basic Information
|
Contact Form |
1 Form A |
||
|
Contact Material |
Ag Alloy |
||
|
Contact Rating |
16A 250VAC, 20A 125VAC |
||
|
Contact Resistance |
Max. 100mΩ (24VDC 1A) |
||
|
Load |
Max. Switching Voltage |
250VAC/30VDC |
|
|
|
Max. Switching Current |
20A |
|
|
|
Max. Switching Power |
4,000VA, 480W |
|
|
|
Min. Switching Load |
5VDC, 100mA |
|
|
Life |
Electrical |
100,000 operations (16A 250VAC) |
|
|
|
Mechanical |
2,000,000 operations |
|
|
Insulation Resistance |
Min. 1000MΩ 500VDC |
||
|
Dielectric Strength |
Between open contacts |
1,000VAC, 1min |
|
|
|
Between coil and contacts |
5,000VAC, 1min |
|
|
Operate Time |
Max. 10ms |
||
|
Release Time |
Max. 10ms |
||
|
Operating Temperature |
-40℃ to +85℃ |
||
|
Humidity |
35~95 RH,+40℃ |
||
|
Shock Resistance |
Endurance |
1,000m/s2 |
|
|
|
Misoperation |
150m/s2 |
|
|
Vibration Resistance |
Endurance |
10~55Hz, 1.5mm double amplitude |
|
|
|
Misoperation |
10~55Hz, 1.5mm double amplitude |
|
|
Weight |
Approximately 10.00g |
||
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
