auto overload relay

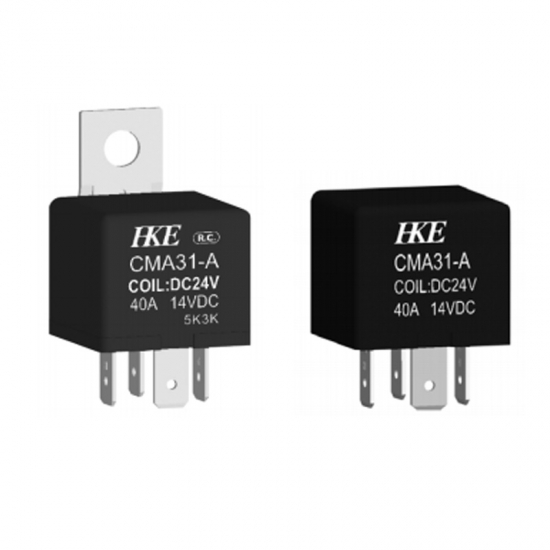

12V 40a Sealed Protect solid state relay auto overload relay

Brand:
Gangyuan
Item NO.:
CMA31
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Product Detail

12V 40a Sealed Protect solid state relay auto overload relay

Basic Information

Contact Form			1 Form A, 1 Form B, 1 Form C
Contact Material					Ag Alloy
Contact Rating (Resistive)		12VDC: 40A14VDC (A)			24VDC: 20A28VDC (A)
		30A14VDCc (B)			10A28VDC (B) NO/NC:20A/10A28VDC(C)
		30A14VDC (C)
Contact Resistance				Max. 100mΩ (6VDC 1A)
	Max. Switching Voltage			75VDC
Load
	Max. Switching Current			Refer to table1
	Max. Switching Power			420W(C), 560W(A)
	Electrical			100,000 operations
Life
	Mechanical			10,000,000 operations

Insulation Resistance			Min.100MΩ 500VDC
Dielectric Strength	Between open contacts			550VAC,1min
	Between coil and contacts			550VAC,1min
Operate Time			Max.10ms
Release Time			Max.10ms
			Max.20ms(With Diode)
Operating Temperature			-40℃ to +85℃,-40℃ to +125℃(T)
Humidity			35~95 RH,+40℃
Shock		Endurance	1,000m/s2
Resistance		Misoperation	100m/s2
Vibration		Endurance	10~55Hz, 1.5mm double amplitude
Resistance		Misoperation	10~55Hz, 1.5mm double amplitude
Weight		Approximately 37.0g (Bracket)
		Approximately 32.0g (Without Bracket)

Dimension

powertrain relay.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
