Home Relay & Sensor SPTD Power Reply 12V dc

SPTD Power Reply 12V dc

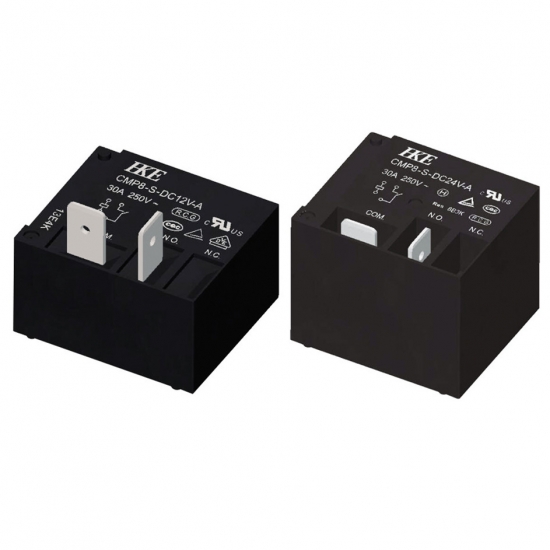

CMP8 Series SPTD Power Reply 12V dc relay

  • Brand:

    Gangyuan
  • Item NO.:

    CMP8
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

CMP8 Series SPTD Power Reply 12V dc relay

 12v relay,12v dc relay,12v 15a relay

Product Description:



product type power relay
Dimension: 31.8*27.4*19.8mm
Contact form A,C
Coil Voltage 6-24VDC
Opeartion Temperature -40~85℃
Contact and coil medium withstand voltage  2.5kv
shell type high or low
specification  PCB type and quick connection type
Storage conditions:

(1)Storage Temperature: -40 to +85℃

(2)Environments:Store in locations where the product is not exposed to corrosive gas such as hydrogen sulfide gas or salty air.Store in locations where the product is not exposed to the direct ray of the sun and rain,snow.



Dimension:
