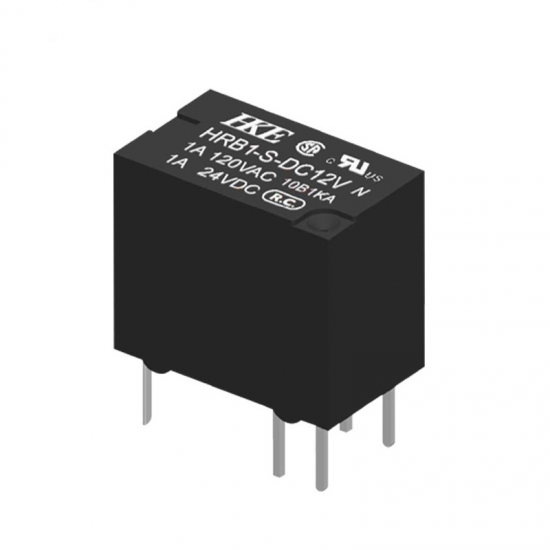

Factory sale 1A 2A 125VAC/24VDC miniature size reed power relay
Brand:
HKEItem NO.:
HRB1Order(MOQ):
10pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for payment
Factory sale 1A 2A 125VAC/24VDC miniature size reed power relay
Basic Information
| Type | Microminiature relay |
| Dimensions | 12.3×7.3×10.2 (mm) |
| Coil Voltage |
DC3V, DC5V, DC6V DC9V, DC12V, DC24V |
| Contact Rating |
1A 125VAC/24VDC 2A 125VAC/24VDC |
| Contact Resistance | Max. 50mΩ (6VDC 0.1A) |
| Insulation Resistance | Min. 1,000MΩ 500VDC |
| Nominal Coil Power | 150mW |
| Mechanical Life | 5,000,000 operations |
| Weight |
Approximately 2.2g |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
