pcb mount reed power relay

4 pin 125VAC 28VDC pcb mount reed power relay jqc 3ff

Brand:
HKE
Item NO.:
CMA-4
Order(MOQ):
10pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
3 working days for payment

Product Detail

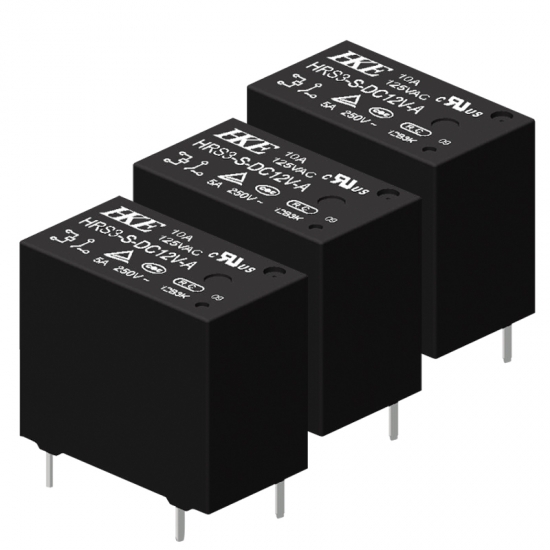

4 pin 125VAC 28VDC pcb mount reed power relay jqc 3ff

Basic Information

Contact Form		1 Form A, 1 Form C
Contact Material		Ag Alloy
Contact Rating		A: 10A 125VAC, 5A 250VAC/28VDC C: NO/NC: 5A/3A 250VAC/28VDC
Contact Resistance		Max. 100mΩ (6VDC 1A)
Load	Max. Switching Voltage		250VAC/28VDC
	Max. Switching Current		10A
	Max. Switching Power		1,250VA, 280W
	Min. Switching Load		5VDC, 100mA
Life	Electrical		100,000 operations
	Mechanical		10,000,000 operations

Insulation Resistance			Min. 1000MΩ 500VDC
Dielectric Strength	Between open contacts			1,000VAC, 1min
	Between coil and contacts			A: 3,500VAC, 1 min C: 2,500VAC, 1 min
Operate Time			Max. 10ms
Release Time			Max. 5ms
Operating Temperature			-40℃ to +85℃
Humidity			35~95 RH, +40℃
Shock		Endurance	1,000m/s2
Resistance		Misoperation	100m/s2
Vibration		Endurance	10~55Hz, 1.5mm double amplitude
Resistance		Misoperation	10~55Hz, 1.5mm double amplitude
Weight			Approximately 6.0g

Dimension

4 pin relay.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact s

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
