Home Relay & Sensor electromechanical relay
without bracket relay without bracket relay without bracket relay without bracket relay

electromechanical relay

The contact form is a set of normally open relays with resistance.

  • Brand:

    HKE

  • Item NO.:

    CMA32-DC12V-A-R-NS

  • Order(MOQ):

    100PCS

  • Payment:

    100% T/T Before Production

  • Product Origin:

    Zhejiang, China (Mainland)

  • Color:

    Blue

  • Shipping Port:

    Ningbo/Shenzhen

  • Lead Time：

    7-14 working days for payment
Contact Us

  • Product Detail

12v 5pin whirpool fridge start relay


  Basic Information


Product name
Car relay
Dimensions
27.8×27.8×24.6(mm)
Coil Voltage
 DC12V
Max. Switching Voltage
75VDC
Max. Switching Current
30A
Nominal Coil Power
1.8W
Mechanical Life
10,000,000 operations
Operating Temperature
-40℃ to +85℃
Contact Form
A - 1 Form A

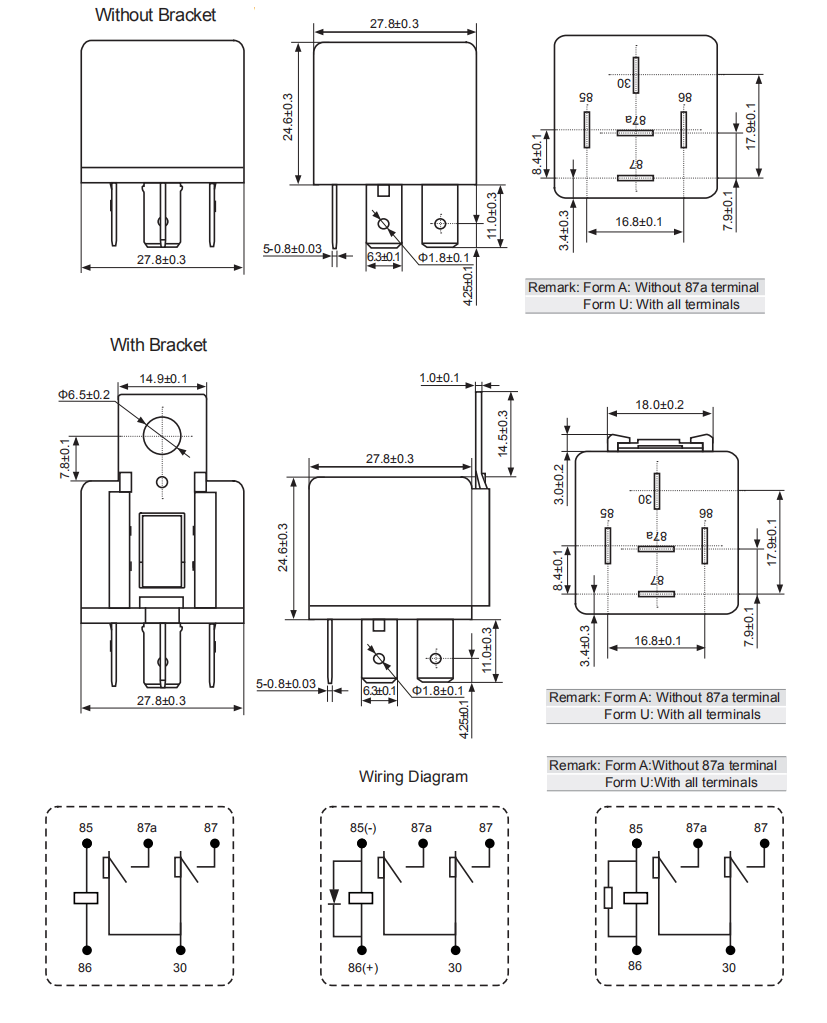

  Dimension


  Product features


1. Type: Auto relay

2. Wide operating voltage range：Up to ±40% of rated voltage

3. High environmental adaptability：The highest ambient temperature can reach 125℃

4. Maximum switching current：50A (24VDC)

5. Terminal treatment：Anti-corrosion treatment for terminals

6. Popular application scenarios： Automobile automatic doors and windows, anti-theft devices, wipers, oil pump motors, etc.


  Our advantage


1. The factory has more than 20 years of experience in the field of switch manufacturing.

2. Variety of categories. More than 2000 models.

3. Good quality. Using raw materials imported from Japan and South Korea.

    More than 85% of product automated manufacturing coverage.

4. Excellent R&D team, clients design requests are welcome.

5. Two thousands invention patents and 47 utility model patents.

6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

8. After-sales service team. Global radiation multiple service outlets.


 Relay Application


1. Industrial automation control: manipulator, power control, protection circuit.

2. Household appliances: microwave oven, TV, air conditioner, dishwasher, etc.

3. UPS power supply: protection circuit, switching circuit.

 FAQ


1. Q: Are you manufacture/ factory? Location?

    A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. MOQ1,000pcs.

3. Q: What about the delivery time?
    A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?
    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: How do you proceed order for relay?

   A: First let us know your requirements or application.

       Secondly we quote according to your requirements or our suggestions.

       Thirdly customer confirms the samples and places deposit for formal order.

       Fourthly we arrange the production.
