electric relay

electric bajaj pulsar 180 starter relay switch module

Brand:
HKE
Item NO.:
CMA55
Order(MOQ):
10pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
14 working days for payment

Product Detail

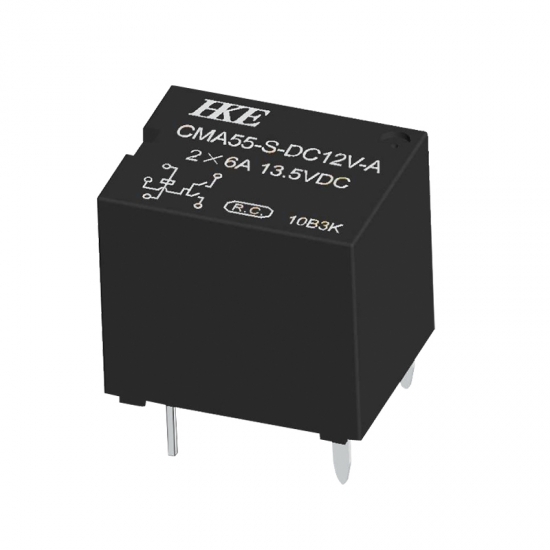

electric bajaj pulsar 180 starter relay switch module

Basic Information

Product name	automotive relay
Dimentions	15.6x12.2x13.7(mm)
Contact Material	Ag Alloy
Contact Rating	2x6A 13.5VDC Resistive
Contact Resistance	Max. 100mΩ (6VDC 1A)
Mechanical	10,000,000 operations
Nominal Coil Power	1.0W
Operating Temperature	-40℃ to +85℃
Insulation Resistance	Min. 100MΩ 500VDC
Dielectric Strength	550VAC, 1min

Dimension

double pole double throw relay.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact s

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
