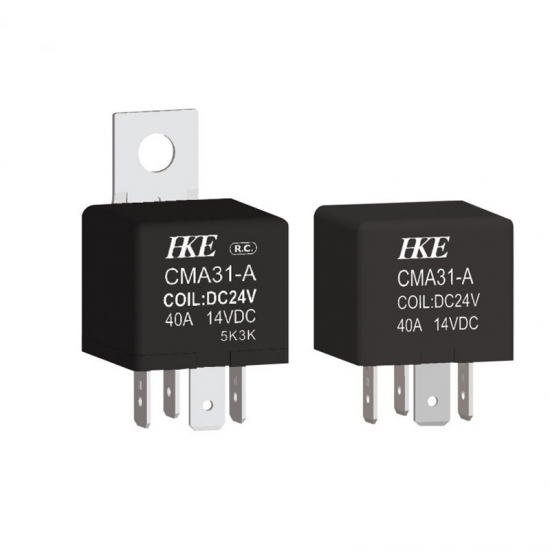

electric HKE relays 12v Auto power Relay 24v 100a
Brand:
HKEItem NO.:
CMA31-24V-COrder(MOQ):
10pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for payment
electric HKE relays 12v Auto power Relay 24v 100a
Basic Information
| product type | Generl automotive relay |
| Dimension: | 27.8*27.8*24.6mm |
| Contact form | 1A,1B,1C |
| Coil Voltage | 6-24VDC |
| Opeartion Temperature | -40~85℃ |
| Contact and coil medium withstand voltage | 2.5kv |
| shell type | high or low |
| specification | PCB type and quick connection type |
| Storage conditions: |
(1)Storage Temperature: -40 to +85℃ (2)Environments:Store in locations where the product is not exposed to corrosive gas such as hydrogen sulfide gas or salty air.Store in locations where the product is not exposed to the direct ray of the sun and rain,snow. |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact s
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
