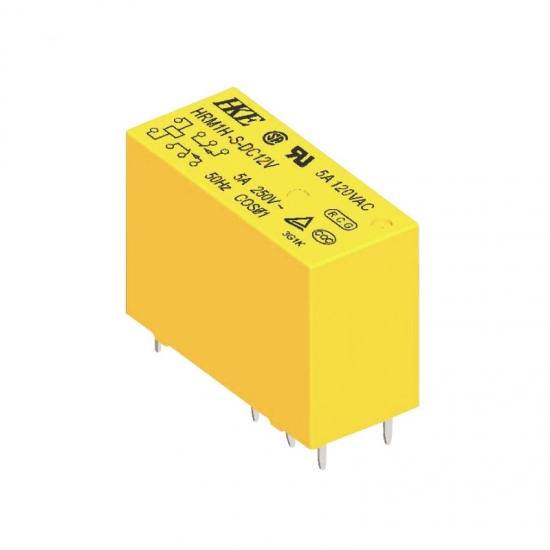

Good quality 5a 250vac power relay 6pin PCB Relay
Brand:
HKEItem NO.:
HRM1Order(MOQ):
10pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
yellowShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for payment
Good quality 5a 250vac power relay 6pin PCB Relay
Basic Information
|
Product name |
Relay |
|
Contact Form |
2 Form A,2 Form C |
|
Contact Material |
Ag Alloy |
|
Contact Rating |
5A 250VAC/24VDC |
|
Contact Resistance |
Max. 100mΩ (6VDC 1A) |
|
Max. Switching Voltage |
220VAC/30VDC |
|
Max. Switching Current |
3A |
|
Mechanical |
10,000,000 operations |
|
Insulation Resistance |
Min. 1000MΩ 500VDC |
|
Operating Temperature |
-30~+55℃ (720mW) |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
