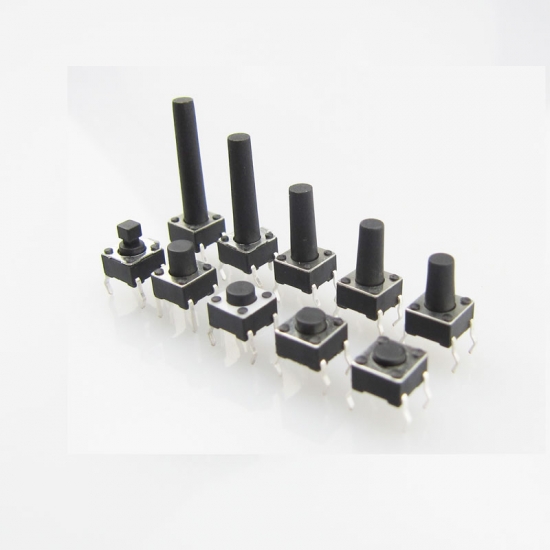

4.3~21mm height and variety colors of knob for choose,100gf,160gf,260gf operation force are available.
Brand:
GangyuanItem NO.:
KAN061*Order(MOQ):
1000pcsPayment:
100% T/T before productionProduct Origin:
ZhejiangColor:
black/redShipping Port:
Ningbo/ShenzhenLead Time：
7 working daysOutline (mm)
6.00mm x 6.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X6*6 Through hole and SMT tactile push button switch
Feature
Snap-in type,which can be directly mounted on PC board.terminal contact with Au plating for better sensitivity.difference quality depending on variety law material.Standard knobs are available.

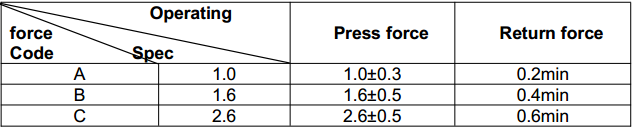

Operating force

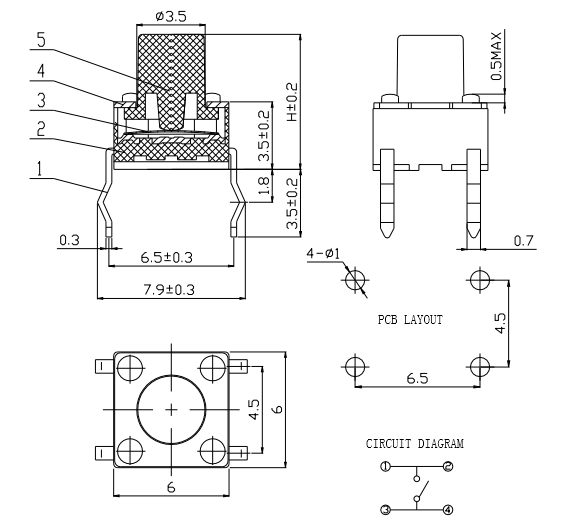

Dimension
NO.
NAME
MATERIAL
QTY.
FINISHING
1
TERMINAL
Brass
1
Silver Plating
2
CASE
PA66
1
Black
3
CONTACT
Phosphor bronze
2
Contact side silver plating
4
COVER
SPCC
1
Cu Sn plating
6
STEM
PA66
1
Red

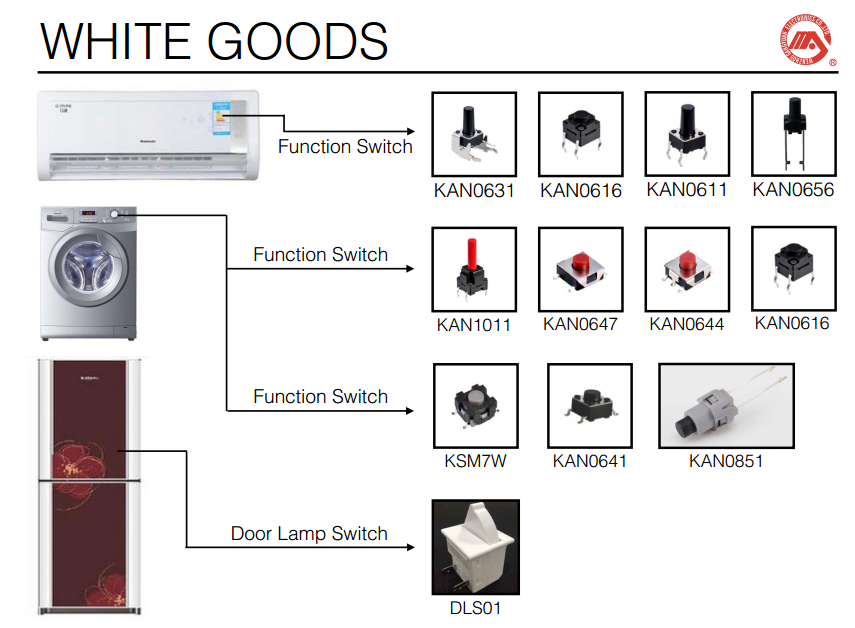

Application
