Wenzhou Gangyuan Electronics Co.,Ltd.

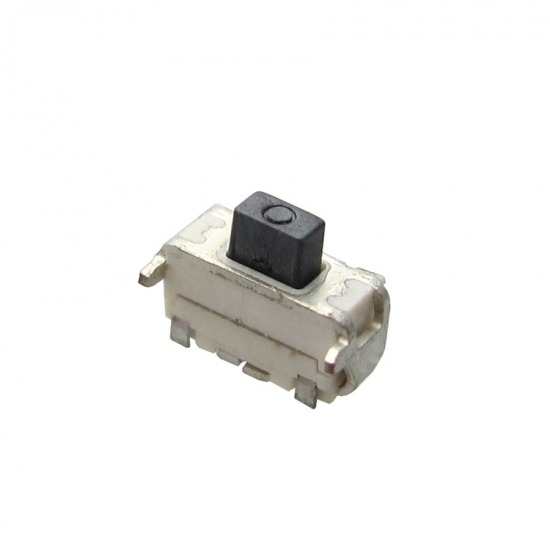

KAN1542 side-press type can be mounted on a substate and used as a side press switch.Automotive production with low price.
Brand:
GangyuanItem NO.:
KAN1542Order(MOQ):
1000pcsPayment:
T/TProduct Origin:
ZhejiangColor:
white，blackShipping Port:
Ningbo/ShenzhenLead Time：
5-7 working daysOutline (mm)
3.90mm x 1.55mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating

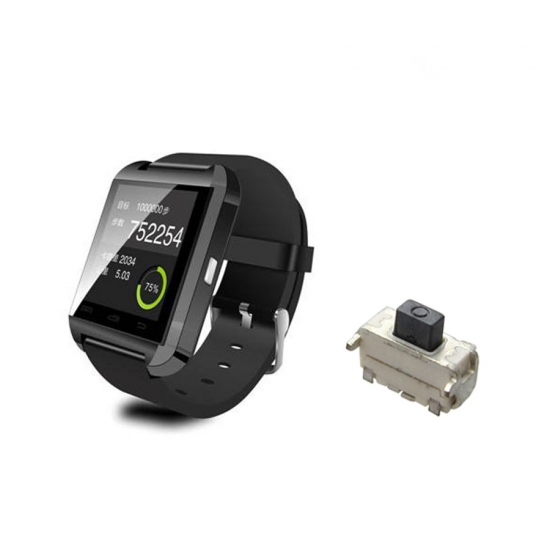

IP4X2×4mm micro tactile switch for smart watch
Feature
Specification
| NO. | NAME | MATERIAL | QTY | FINISHING |
| 1 | FILM | Teflon | 1 | Natural |
| 2 | TERMINAL | C5191 | 2 |
Ag plated |
| 3 | CASE | LCP | 1 | primary colour |
| 4 | STEM | LCP | 1 | primary colour |
| 5 | COVER | LCP | 1 | primary colour |
| 6 | CONTACT | SUS | 3 | Ag plated |
| 7 | COVER | BRASS | 1 | Ag plated |

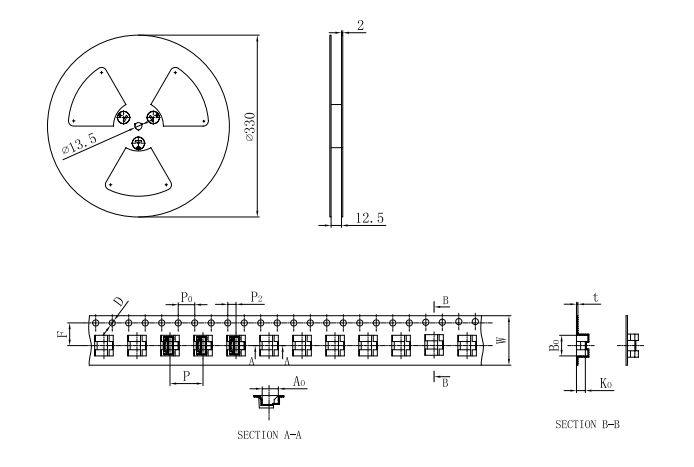

Reel Package

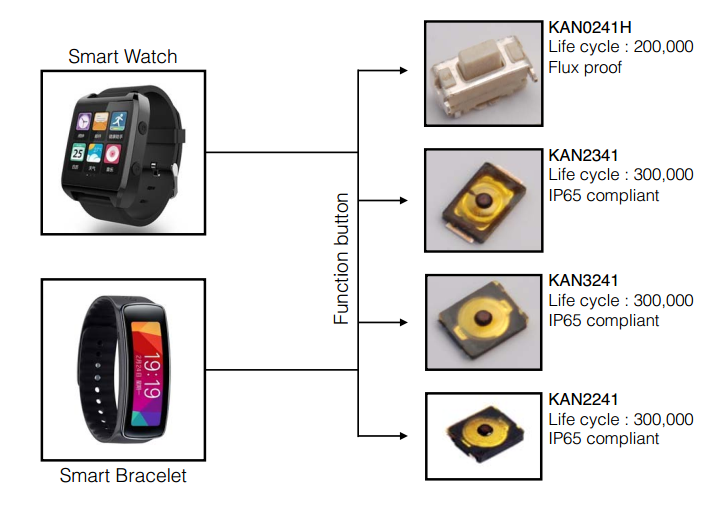

Application
