Top push compact type tactile push button switch for car key

4.2×3.2 mm Compact High Operating Force TACT Switch (SMD) prevent malfunction and meet automotive application requirements.

Brand:
Gangyuan
Item NO.:
KAN3242
Order(MOQ):
1000pcs
Payment:
T/T
Product Origin:
Zhejiang
Color:
white
Shipping Port:
Shenzhen
Lead Time：
7 working days

Outline (mm)
4.20mm x 3.20mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

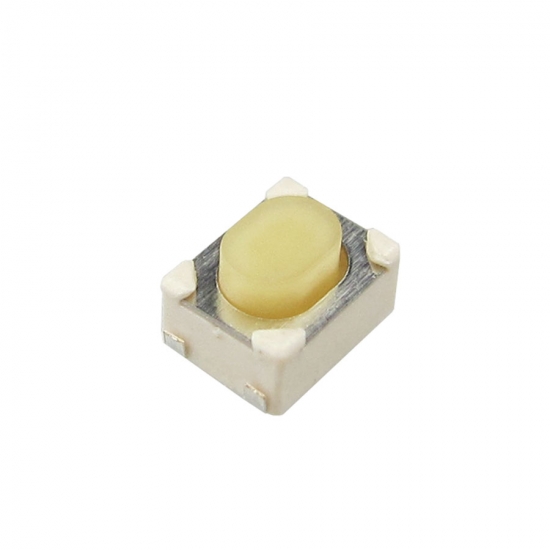

Top push compact type tactile push button switch for car key

Feature

Compact type tact switch with outer dimensions of 4.2*3.2mm and a height of 2.5mm,suitable for high-density mounting.
Its compact size contributes to make application units to be smaller and lighter.
Large stem top surface.Excellence in operationality and mountability.
Switch are supplied in an embossed tape package.

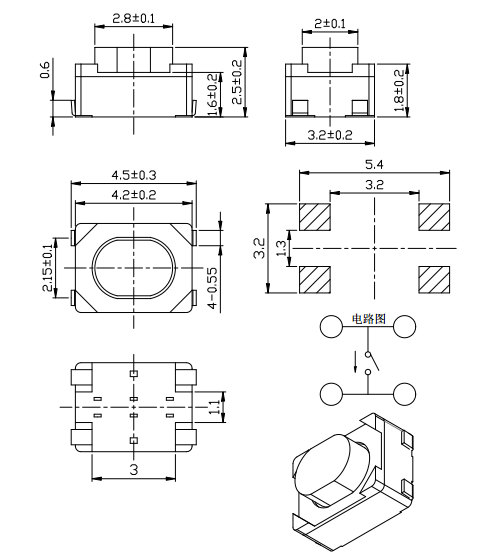

Dimensions

NO.	NAME	MATERIAL	QTY.	FINISHING
1	TERMINAL	Phosphor Copper	1	Sliver plating
2	CASE	LCP	1	White
3	CONTACT	SUS	2	Ag plating
4	COVER	SUS	1
5	STEM	PA46	1	White

SMD switch using attention

1、Please consult us when considering to wash tact switches

2、Please don’t immerse soldering flux into tact switches

3、Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4、The second welding should be done after switches return to normal temperature

Application

Car audio, car navigation systems

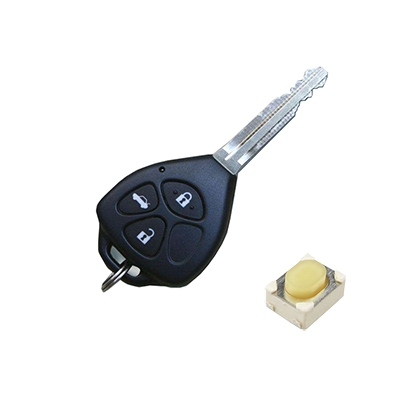

Keyless entry systems

For operating various electronic devices such as audio

devices, automotive units, communication devices,

measuring instruments, etc
