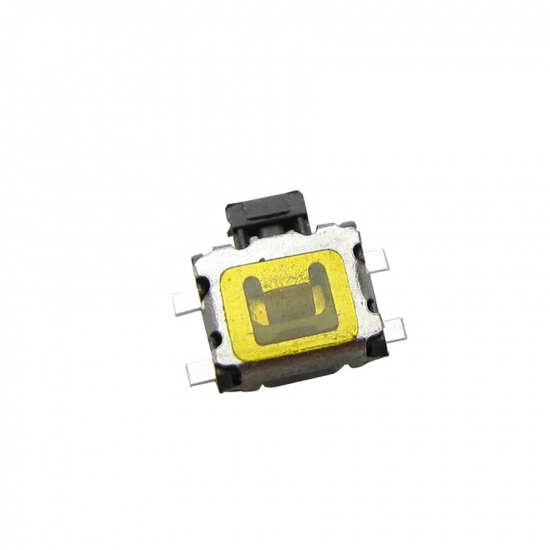

Side push miniature tact switch

3.5×2.9×1.5mm tactile switch,sharp tactile feel good for sport camera.

Item NO.:
KAN0447
Order(MOQ):
1000pcs
Payment:
100% T/T before production
Product Origin:
Zhejiang
Color:
black stem
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 working days

Product Detail

Product item:Side push miniature tact switch

Feature：

Smallest class in the industry for high-density mounting of compact devices.
Surface mounted: Ideal for high-density mounting.
Models with ground terminals are available for protection against static electricity.
Available on embossed tape: Ideal for automatic mounting.

General characteristic：

Operating Temperature	-20℃~70℃
Rating	12V DC,50mA
Contact arrangement	1 pole 1 throw
Contact resistance	50mΩ max
Operation force	2.15±0.65N
Operation life	100,000 cycles

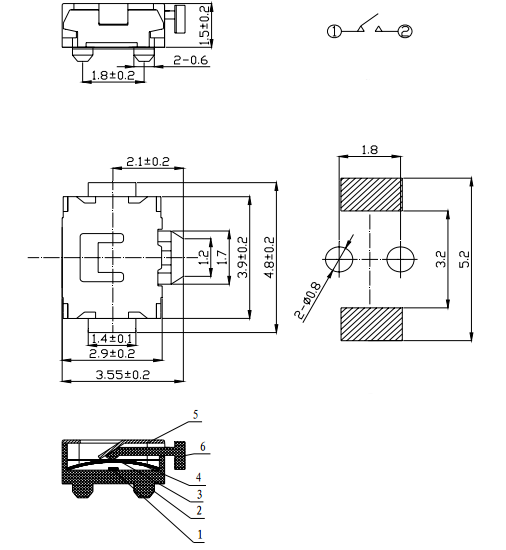

Dimension:

Application

Smartphone
Tablets
Mobile Devices
Cameras
Wearable Electronics
