Wenzhou Gangyuan Electronics Co.,Ltd.

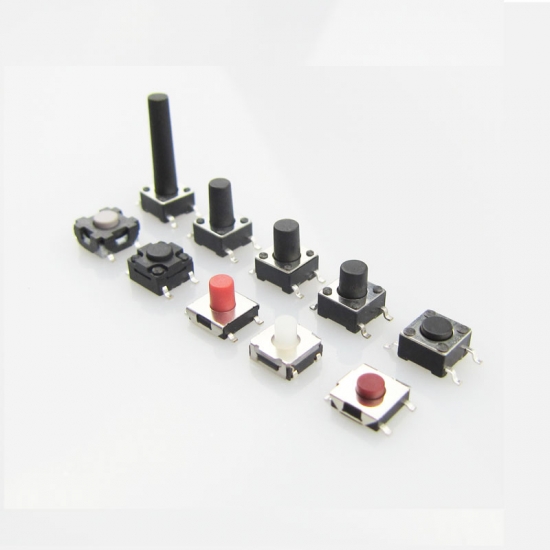

3.4~18mm height and variety colors of knob for choose,100gf,160gf,260gf operation force are available.
Brand:
GangyuanItem NO.:
KAN064*Order(MOQ):
1000pcsPayment:
100% T/T before productionProduct Origin:
ZhejiangColor:
black/red/green/greyShipping Port:
Ningbo/ShenzhenLead Time：
7 working daysOutline (mm)
6.00mm x 6.00mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4X6*6 SMT/SMD tactile switch for household application
Feature
Classic type,waterproof type,dust-resistance type,surface mounted on PC board.terminal contact with Au plating for better sensitivity.difference quality depending on variety law material.Standard knobs are available.
Operating force

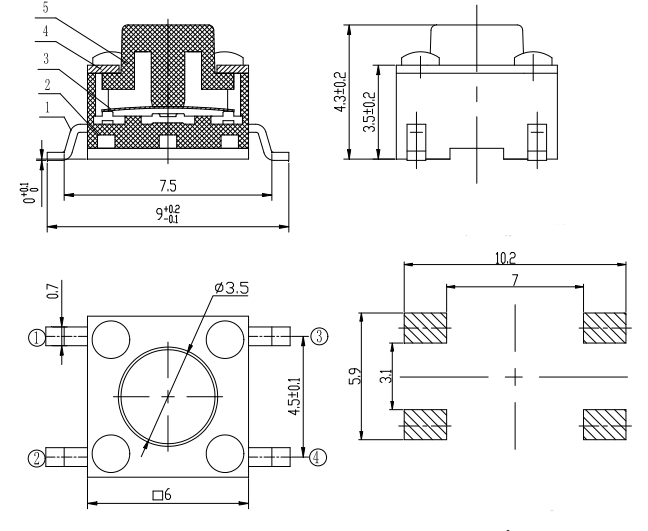

Dimension
NO.
NAME
MATERIAL
QTY.
FINISHING
1
TERMINAL
Brass
1
Silver Plating
2
CASE
PA66
1
Black
3
CONTACT
Phosphor bronze
2
Contact side silver plating
4
COVER
SPCC
1
Cu Sn plating
6
STEM
PA66
1
Red
Application
