24vdc Auto Relay

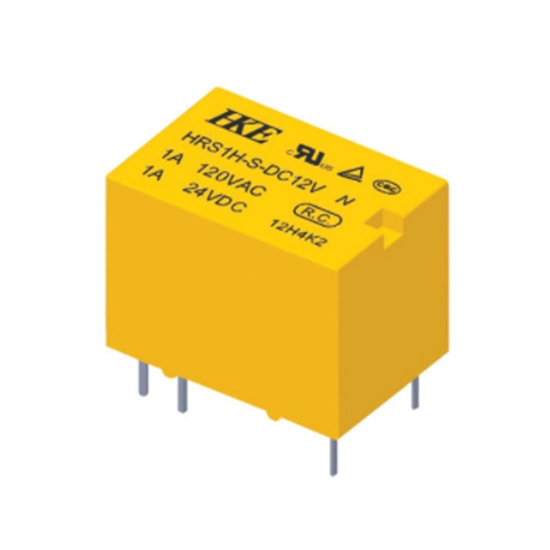

Yellow color Electronic Relay 4 Pin High Sensitive 200mW 24vdc Auto Relay

Brand:
HKE
Item NO.:
HRS1
Order(MOQ):
10pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
yellow
Shipping Port:
Ningbo/Shenzhen
Lead Time：
3 working days for payment

Product Detail

Yellow color Electronic Relay 4 Pin High Sensitive 200mW 24vdc Auto Relay

Basic Information

Type	Microminiature relay
Dimensions	15.6×10.6×11.8 (mm)
Contact Resistance	Max. 50mΩ (6VDC 0.1A)
Insulation Resistance	Min. 100MΩ 500VDC
Contact Rating	1A 120VAC/24VDC 3A 120VAC/24VDC
Operating Temperature	-25℃ to +70℃
Mechanical Life	10,000,000 operations
Coil Voltage	DC3V, DC5V, DC6V DC9V, DC12V, DC24V
Coil Sensitivity	H - High Sensitivity (200mW) Blank - Standard (360mW)

Dimension

24v auto relay.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
