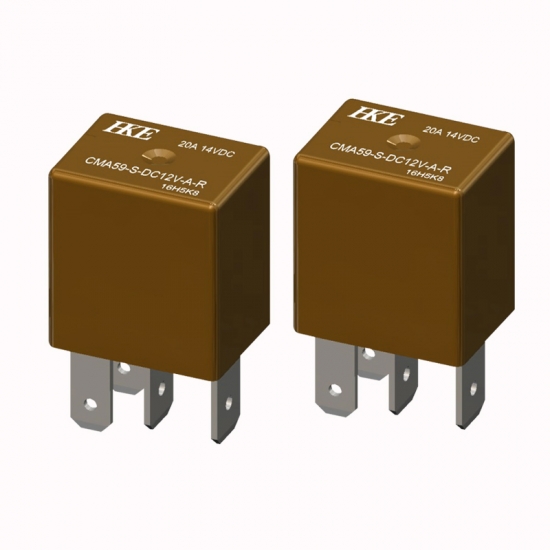

HKE CMA59 4 Pin New and original Silent 14VDC 10A 20A automotive relay
Brand:
GangyuanItem NO.:
CMA59Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
yelowShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after payment
HKE CMA59 4 Pin New and original Silent 14VDC 10A 20A automotive relay
Basic Information
|
Product name |
automotive relay |
|
Dimentions |
20.4x15.1x22.0mm |
|
Contact Material |
Ag Alloy |
|
Contact Rating |
Motor:20A/10A 14VDC |
|
Contact Resistance |
Max. 100mΩ (6VDC 1A) |
|
Insulation Resistance |
Min.100MΩ 500VDC |
|
Operating Temperature |
-40℃ to +125℃ |
|
Operation life |
1,000,000ops(300ops/min) |
|
Dielectric Strength |
550VAC,50/60Hz,1 min |
|
Nominal Coil Power |
0.64W |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
