Home Relay & Sensor 12V 30a automotive relay

12V 30a automotive relay

High contact capacity 4 pin 30amp relay 12V 30a automotive relay

  • Brand:

    Gangyuan
  • Item NO.:

    CMP7-S-DC-12V-A
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

High contact capacity 4 pin 30amp relay 12V 30a automotive relay

Product Description:

Product name Relay
Contact Form 1 Form A, 1 Form C
Contact Material Ag Alloy
Contact Resistance Max.100mΩ(6VDC 1A)
Max. Switching Voltage 250VAC/28VDC
Max. Switching Power 7,500VA,560W
Min. Switching Load 5VDC,100mA
Mechanical 10,000,000
Insulation Resistance Min. 1000MΩ 500VDC
Operating Temperature -40℃ to +85℃

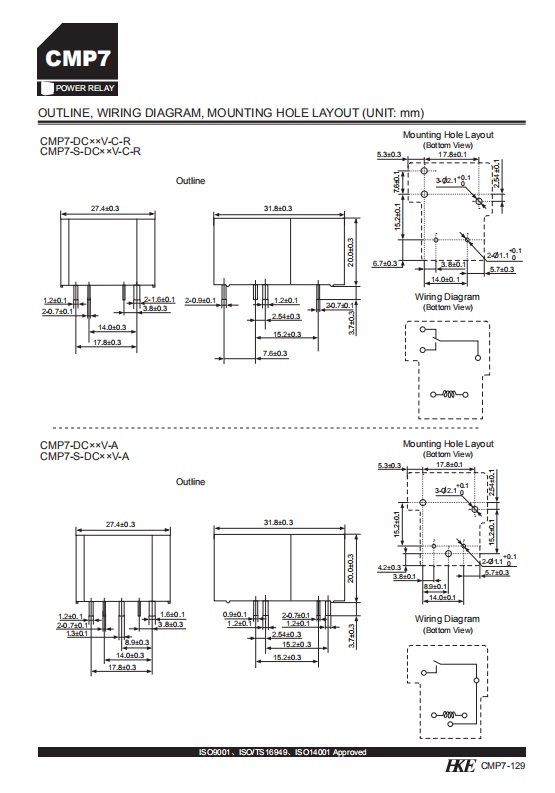

Dimension:

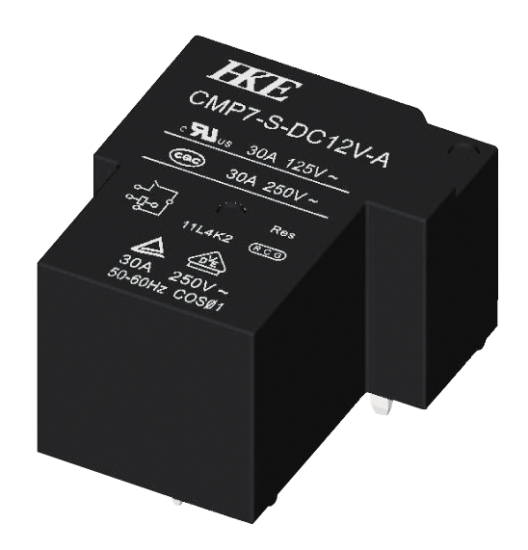

Products photos:

CMP7
