11mm screw shaft SMT rotary eccoder push button switch

A rotary encoder is an electromechanical device that reads the position of a rotating component, such as a motor shaft, and generates an electrical output signal related to that position. Magnetic rotary encoders use a magnetized wheel attached to the shaft.

Brand:
Gangyuan
Item NO.:
GE1103D5K15-3.5-4H10
Order(MOQ):
500
Payment:
100% before production
Product Origin:
Wenzhou
Color:
Black
Shipping Port:
Ningbo or Shenzhen
Lead Time：
7-15 working days

lllumination
No
Length
Width
IP Rating
Series
Mounting Type
Surface Mount
Actuator Height:

Product Detail

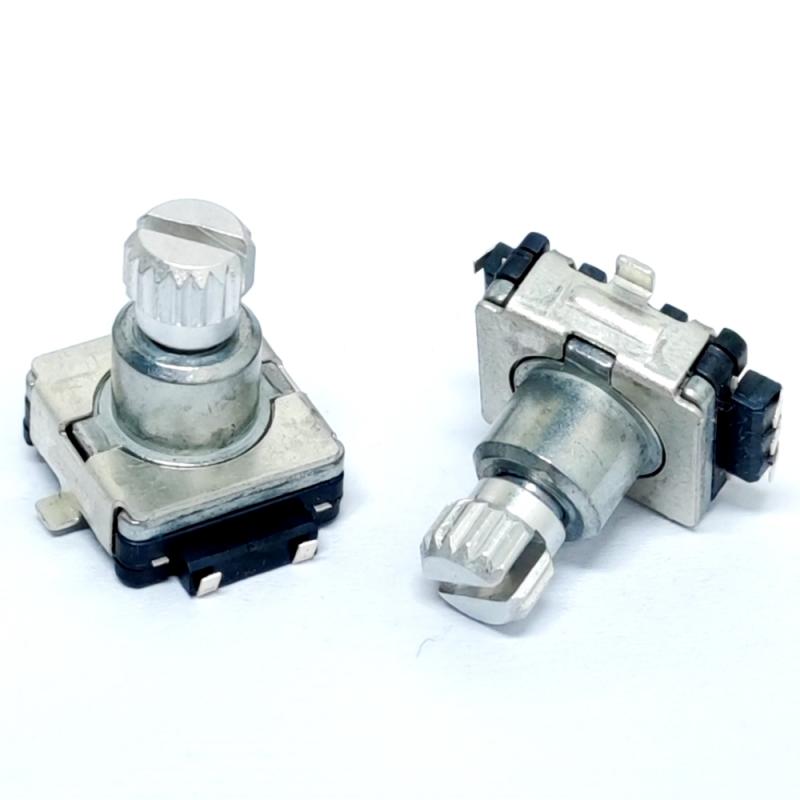

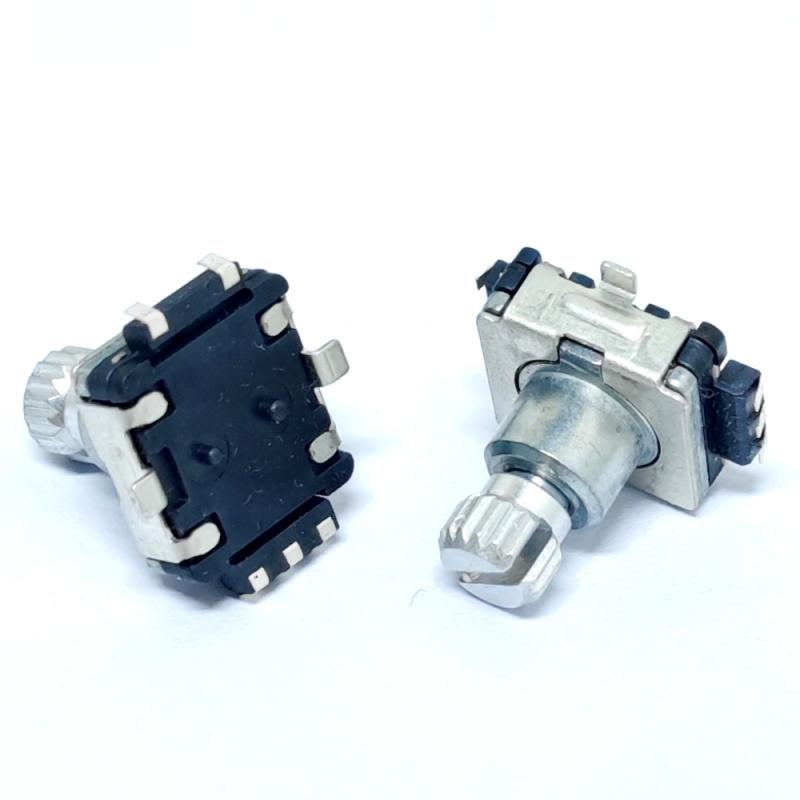

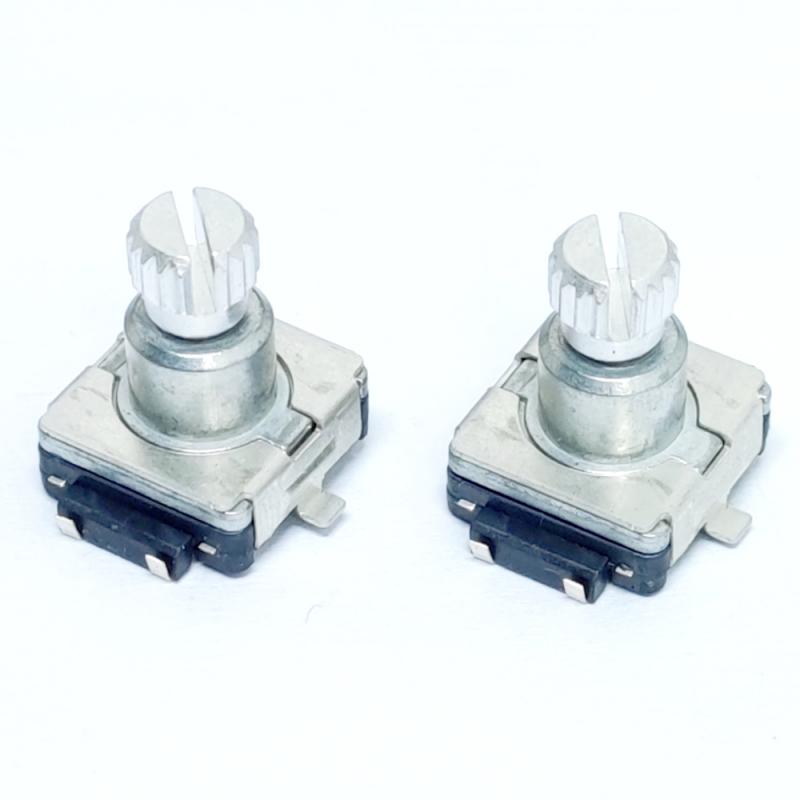

11MM SMD SMT Mechanical Panel Mount Encoders

EC11 optical incremental rotary encoder

Specification

Rated voltage: DC 5V

Resolution: 20 pulses/360°

Detent Torque: 7±3mN.m. (70±30 gf.cm)

Number and position of detent: 20detents(Step angle:18°±2°

Mounting Type: Mounting Type

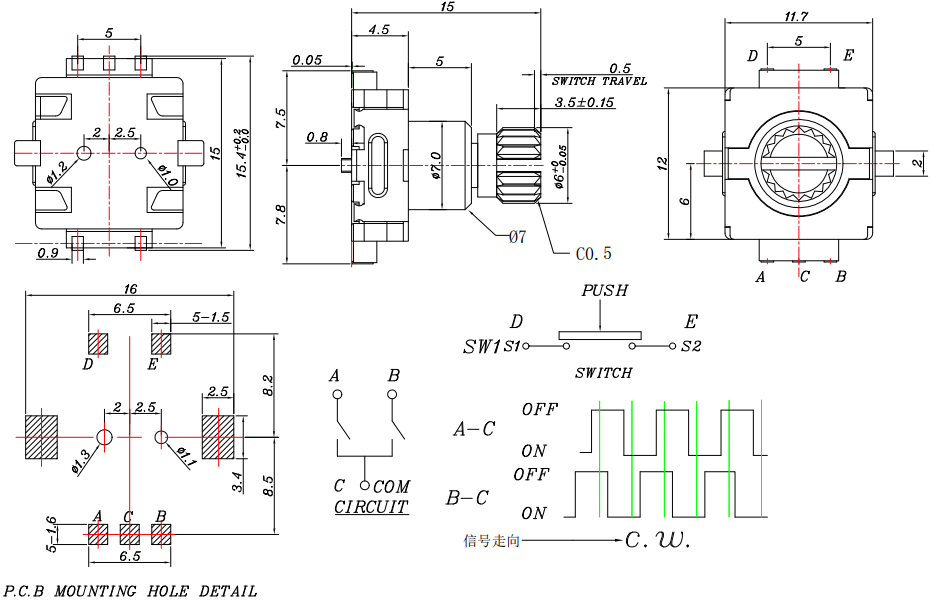

Drawing

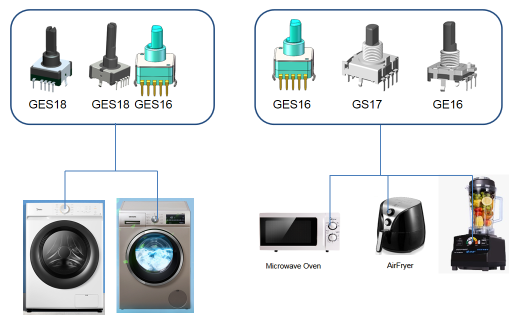

The function and application field of the encoder:

The main function of the encoder: adjustment and control, such as adjusting volume, frequency, temperature, balance, contrast, function switching, etc.,

Encoders have a wide range of applications and are mainly used in digital electronic circuits. Encoders can be used for products that need to be adjusted or

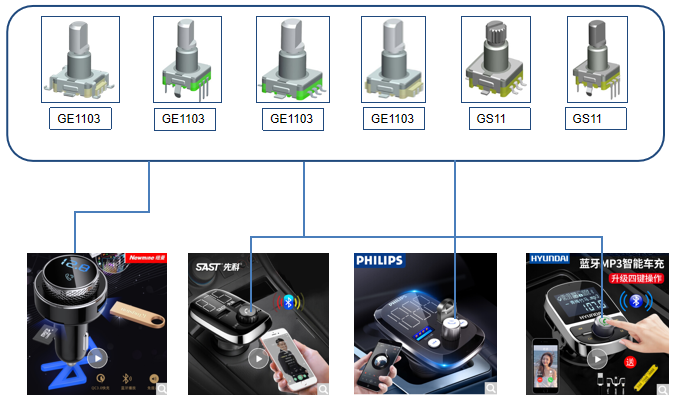

most products that use traditional potentiometers. Currently, they are used in automobiles and small household appliances. , household appliances, white goods,

medical equipment, aerospace, military and other fields are widely used.

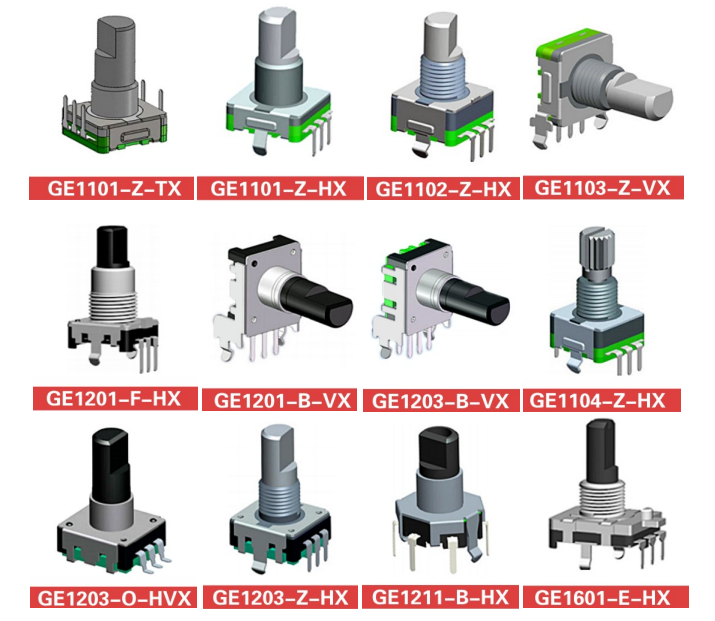

Rotary encoder type: Incremental encoder / Absolute encoder / Middle shaft encoder / Hollow encoder
