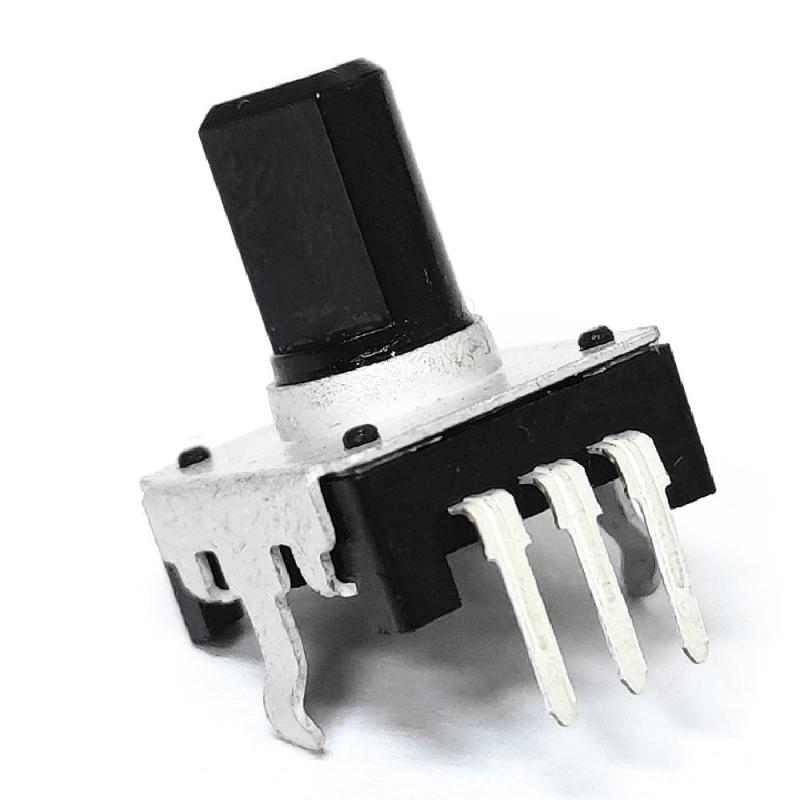

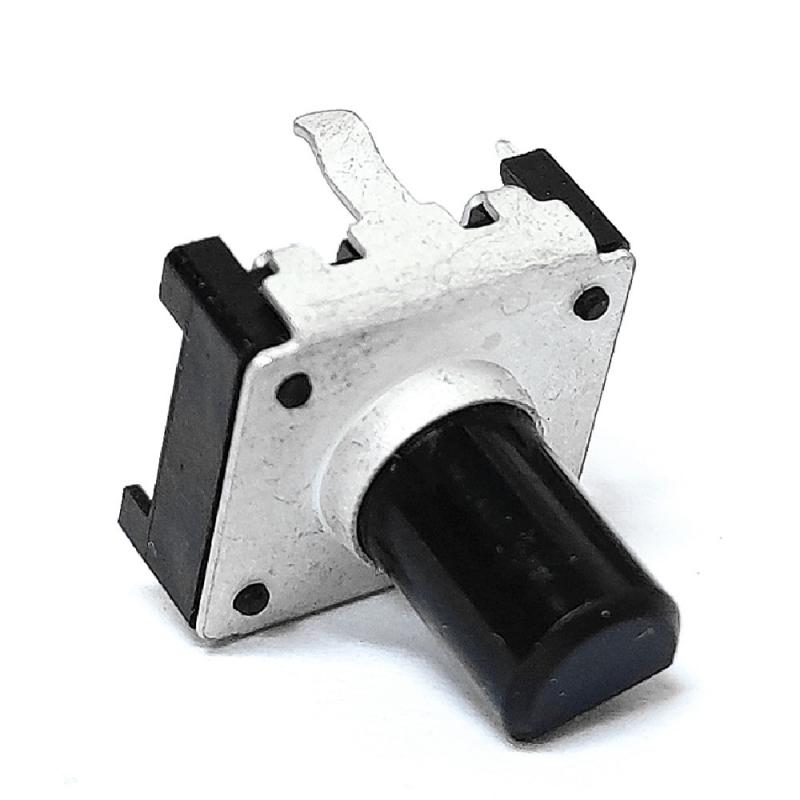

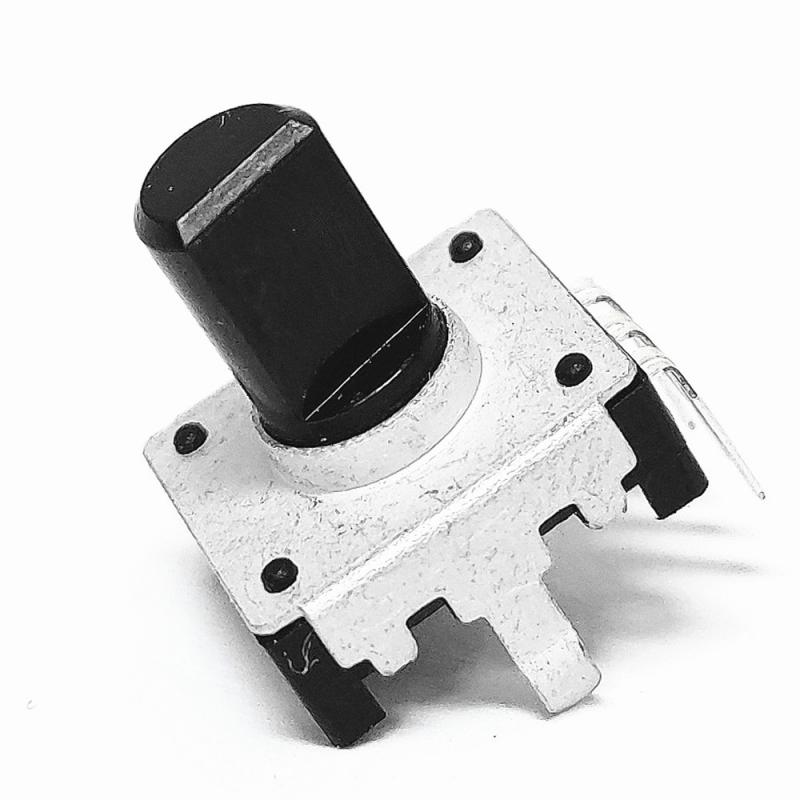

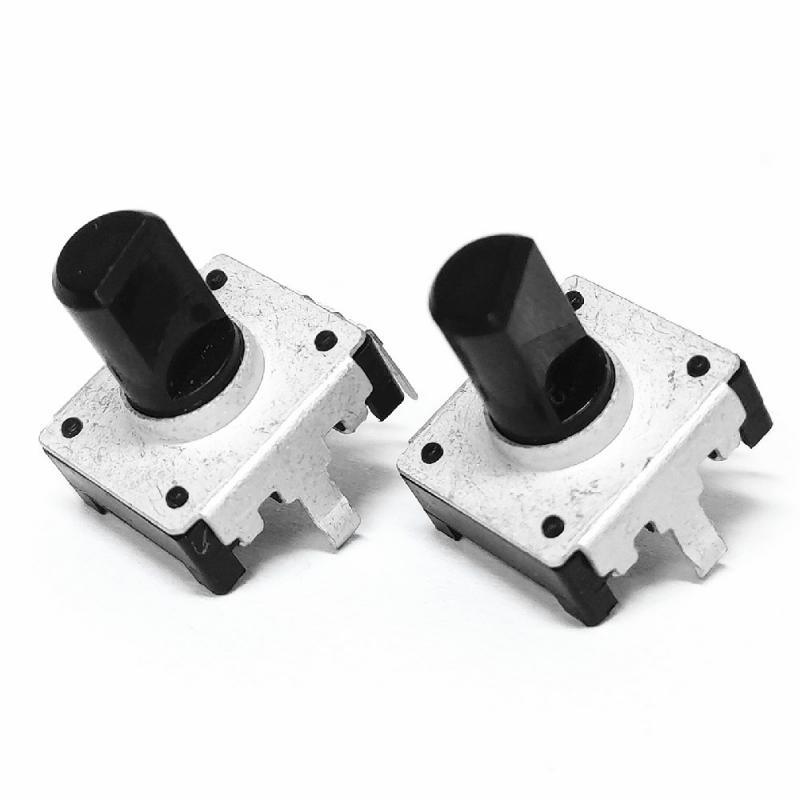

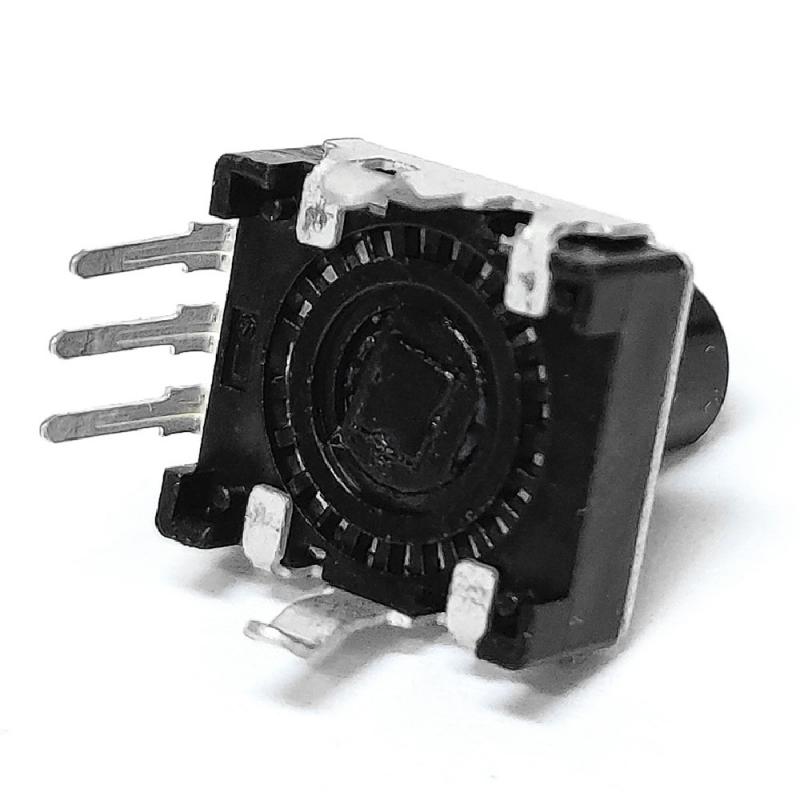

Horizontal mount 24 detents encoder

Multiple configurations available to meet many user requirements.

Brand:
Gangyuan
Item NO.:
GE1201B6-15F7.5-24P2
Order(MOQ):
1000
Payment:
100% T/T Before Production
Product Origin:
China
Color:
Black and White
Shipping Port:
WenZhou/Shenzhen
Lead Time：
7-14 Working Days For Payment

Product Detail

Axial PC Pin No Bushing 24 Pulses per 360 ° Rotation Encoder

SPST 10mA 5VDC mechanical encoder 12 mm Incremental Encoder

Parameters

Operating Temperature Range: -30 °C to +70 °C

Storage Temperature Range: -40 °C to +85 °C

Rotational Life: 30,000 cycles minimum

Switch Life: 20,000 cycles minimum

Switch Travel: 0.5 ± 0.3 mm

Contact Resistance: 100 milliohms @ 5 VDC

Switch Actuation Force: 610 ± 306 gf

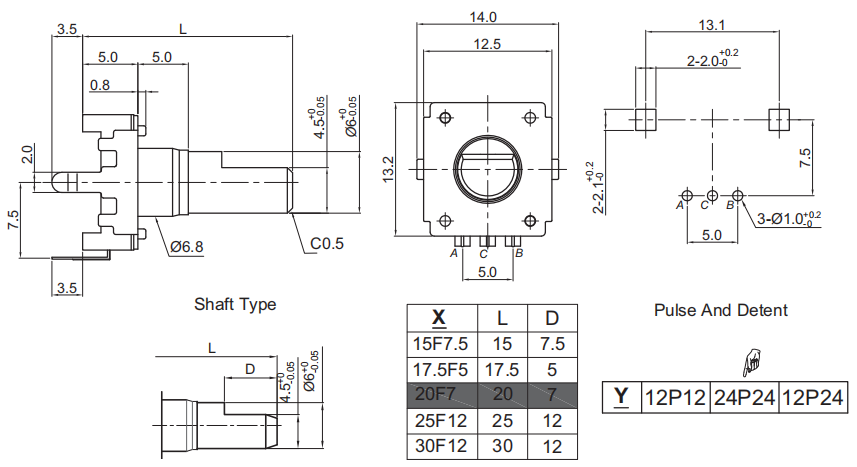

Drawing

Absolute encoder vs Incremental encoder

Positioning work requires precise location data to track and control a dynamic activity. In many applications, positioning sensing is done by rotary encoders, also known as shaft angle encoders or simply encoders. These sensors convert the mechanical angular position of the drive shaft or gear shaft into electrical signals that can be processed by the control system.

Absolute encoder

absolute

Absolute rotary encoders provide unique positioning values at any instant between the moment of switch-on and the moment of power-off. It does so by scanning a coded material. All location information in these systems is associated with a programmed code. Even rotations that occur while the system is powered off can be converted into precise positioning values by the encoder as soon as power is turned back on.

Digital and analog interfaces
Number of revolutions single and multi-turn
Resolution up to 16 bit
Optical and Magnetic Encoders

Incremental encoder

incremental

Incremental encoders can start from any starting point and measure the angle by calculating the periodic rate of change of the pattern on a material. This measurement method cannot generate absolute positioning values of the measurement signal internally, so the starting position must be initialized to the reference point before all positioning tasks are started. This must be done both when switching on the control system and when any encoder operation is interrupted.

Any number of pulses can be set between 0-16384 in a single turn
Flexible and scalable functionality
Compact form factor, diameters as small as 36mm
Magnetic encoder

Application

Level controls, tuning and timer settings:

Audiovisual equipment
Consumer appliances
musical instrument
communication equipment
