GY Rotary encoder is a device that can compile and analyze data signals and convert the data signals into storage, transmission, communication and other signals. To get an understanding, rotary encoder converts the rotatation of the angular displacement of the encoder and the linear displacement of the yardstick into electrical signals.
Brand:
GangyuanItem NO.:
GE1116N5-F25.5-7-4H2Order(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Metal/GreenShipping Port:
Ningbo/ShenzhenLead Time：

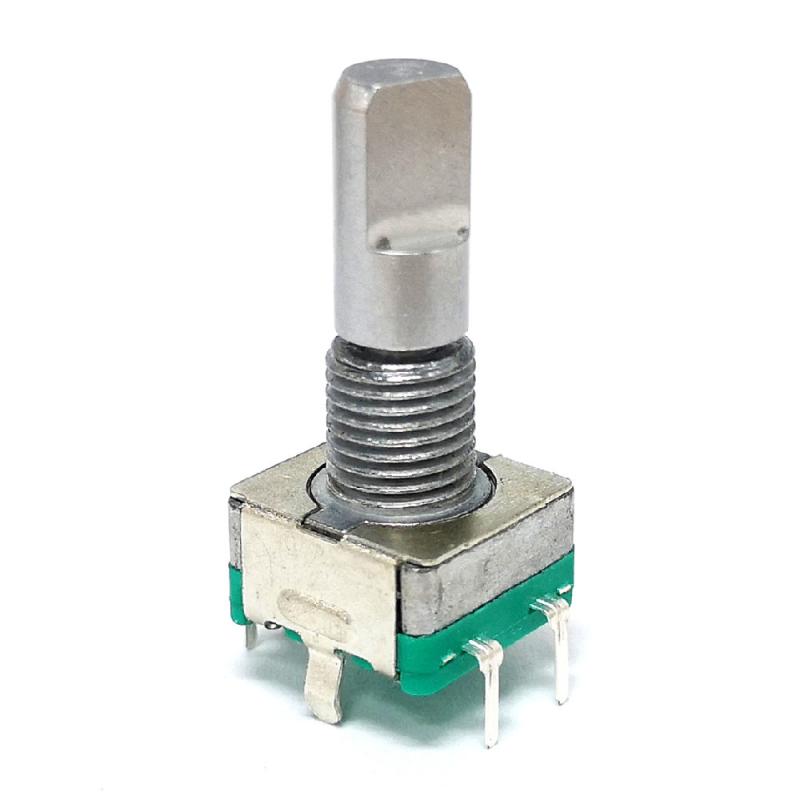

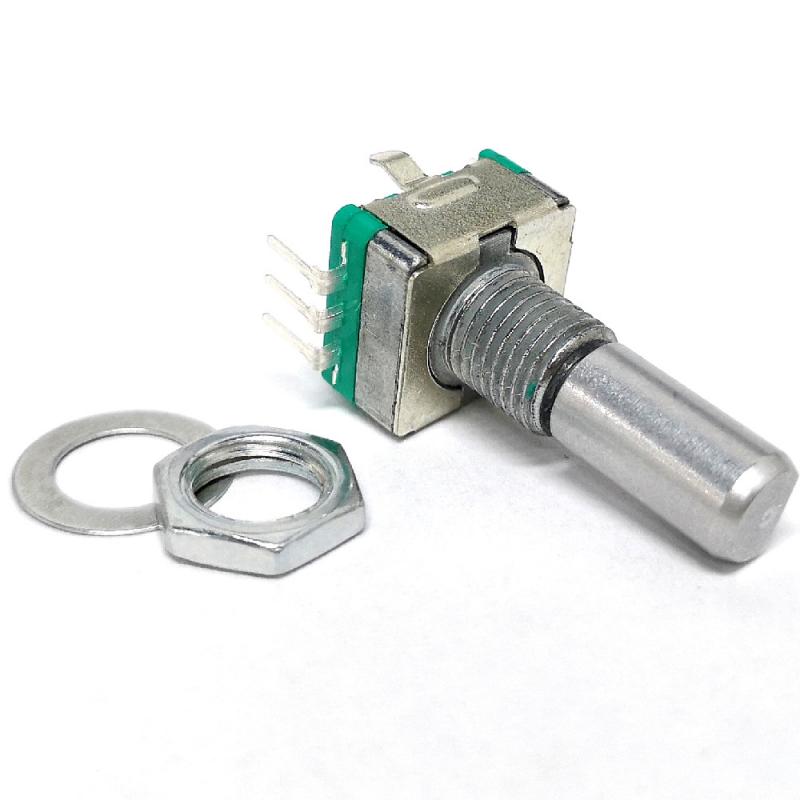

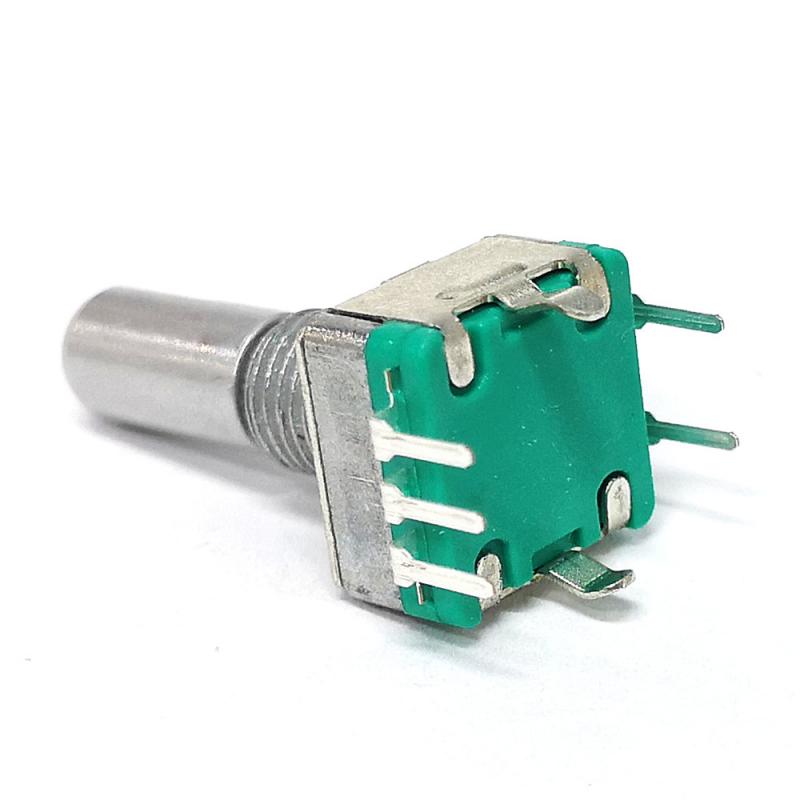

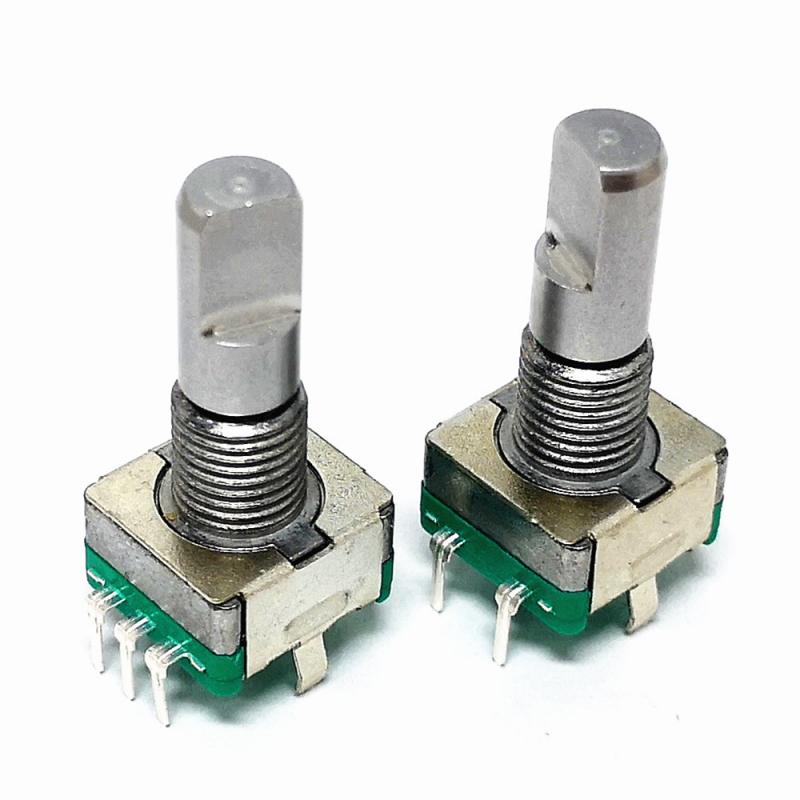

7-14 working days for paymentMetal shell 12x12mm pcb audio rotary digital encoder
Encoders function are adjustment and control of device,such as adjusting volume, frequency, temperature, balance, contrast, function switching, etc.
Product parameter
Size: 12x12mm
Max current: 10mA
Output: 20CC positioning 20 pulses
Rotary life: 30000 times,min
Height: 25.5±0.3mm
Actuator type: Flat shaft
Rotational torque: 60gf±20gf.cm / 100±20gf.cm
No. of pulses: 20

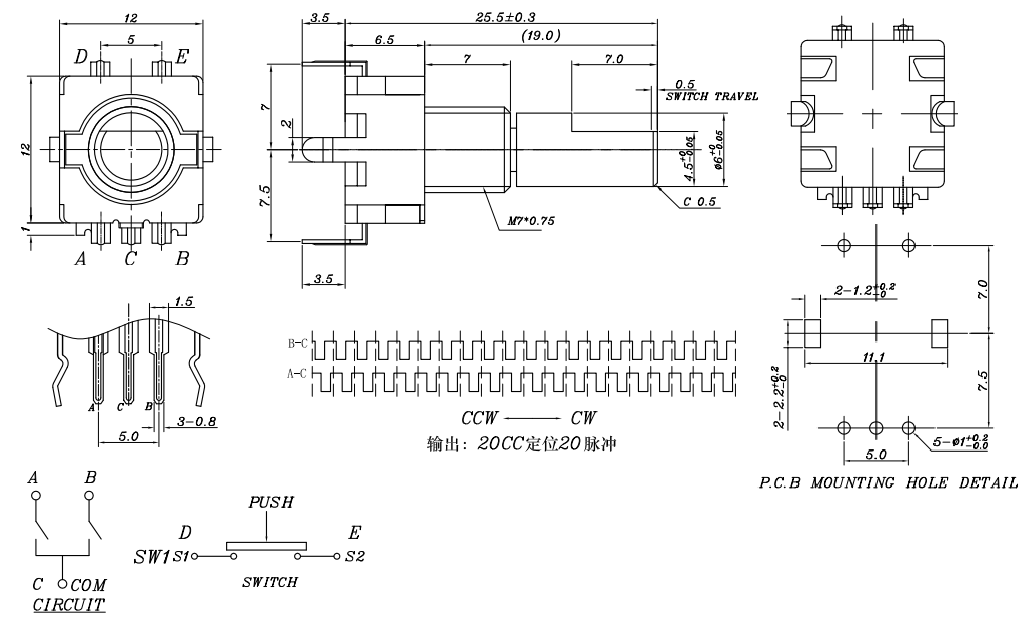

Drawing

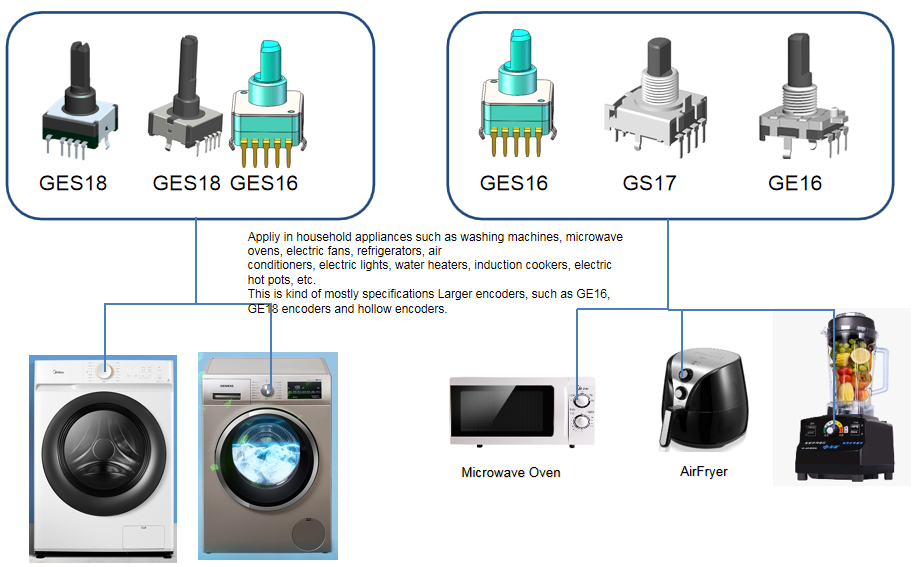

Application
Wide application of encoder,mainly used indigital electronic circuits. For example, products which require adjustment all need encoders. That is to say, most products that use traditional potentiometers can apply encoders instead. Encoder is expected to be widely used in automobiles,household appliances including the small appliance and white home appliances type, medical equipment, aerospace, military and other industry fields.
Our Advantages
1. Independent R&D, satifying service,normal sample and documents offered within 3 days.
2. Same quality as Pansonic and ALPS, improving technologu and service based on customer request.
3. Competitive price.
Tips
Chemical restriction in application
Since synthetic resins such as polycarbonate are used on the insulating shaft, encoder application should avoid the Environment of ammonia, amines, alkaline solutions, aromatic carbon, ketones, lipids, halogenated carbon, etc., and especially strong gas atmospheres.
Low temperature in application
For example, encoder also applys for car radios or car stereo equipment which is possible to work at low temperatures. You can order models easy to rotate even at low temperatures and necessarity.
Storage precautions
1.Please avoid the following environment: with high humidity, high temperature, corrosive gases and direct sunlight and use up the product as soon as possible before 6 months(calculated from shipment date).
2. After unsealing, wrap it in a polyethylene bag to block the outside air, store it under the above conditions and use it ASAP.
3. Do not stack too many switches.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
