A rotary encoder, also called a shaft encoder, is an electromechanical device that converts rotational position or amount of rotation into an analog or digital signal.
Brand:
GangyuanItem NO.:
GE041X1-SW-2V1-00Order(MOQ):
500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
MetalShipping Port:
Ningbo/ShenzhenLead Time：

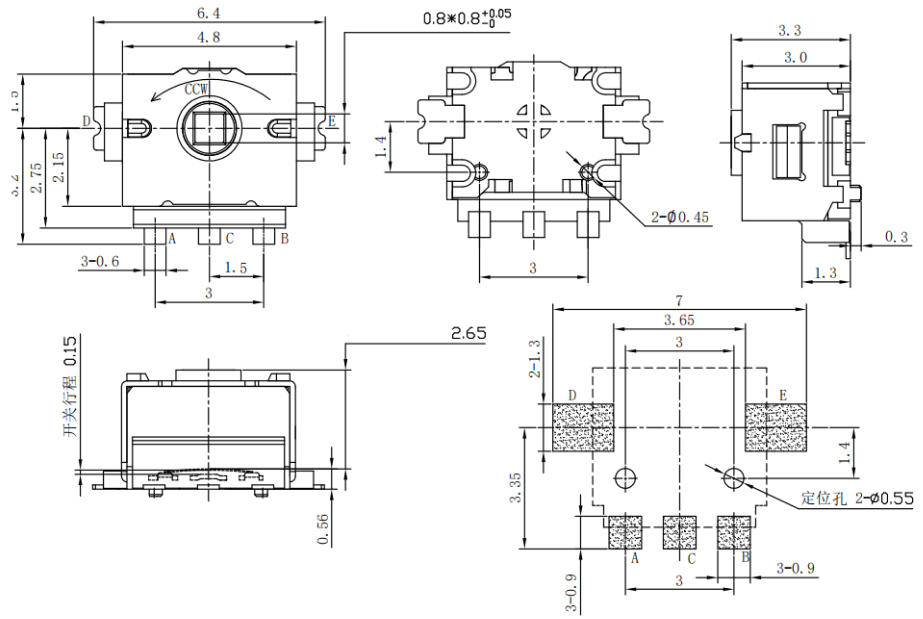

7-14 working days for paymentOutline (mm)
4.80mm x 3.70mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating

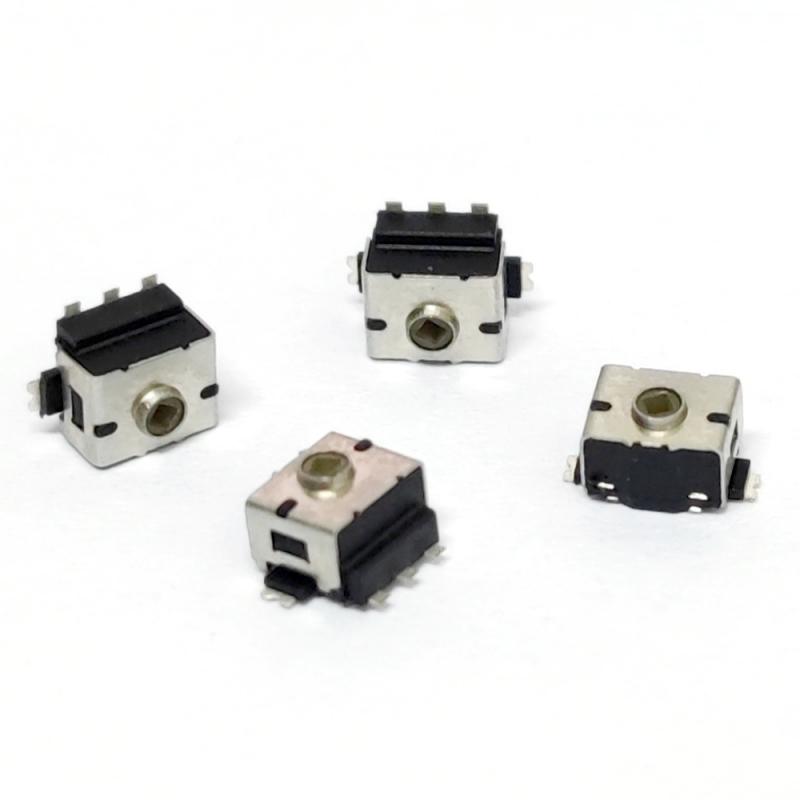

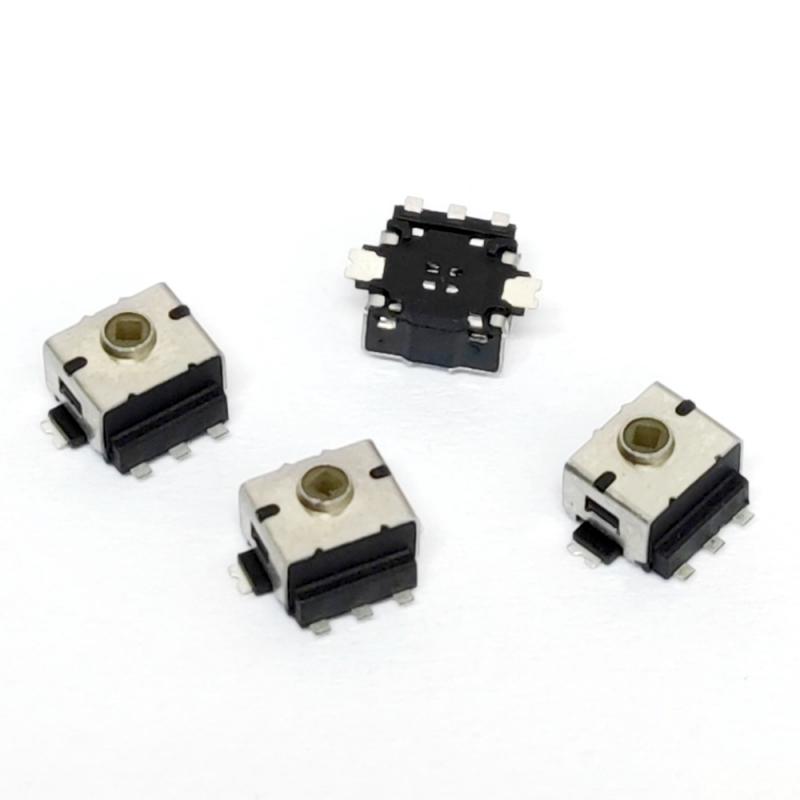

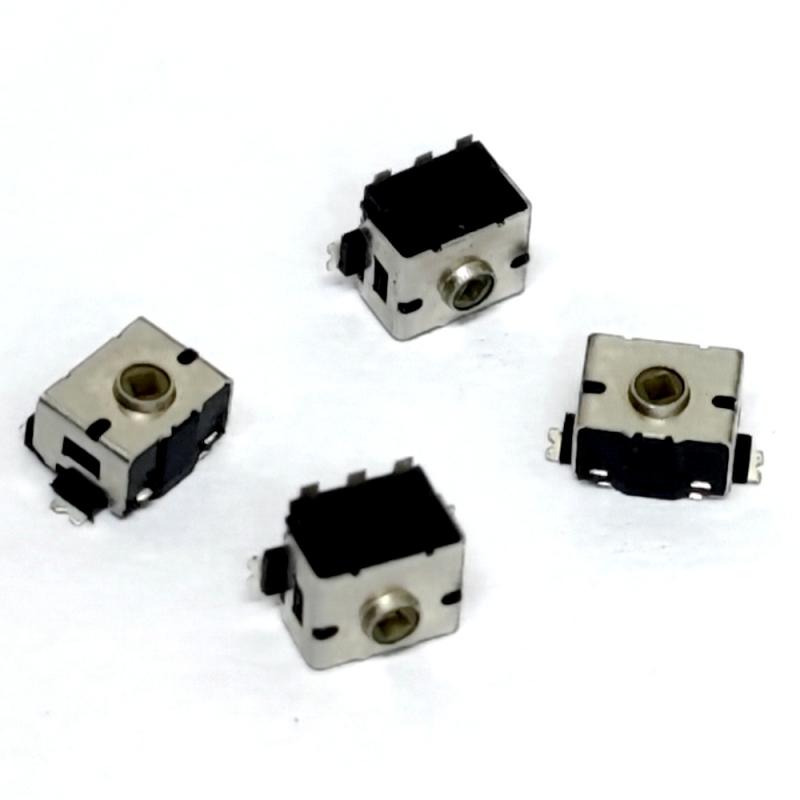

IP4XSmall SMD incremental rotary encoder with push button switch
Encoder manufacturers
Characteristics
Size: 4.8*3.7*3.3mm
Rated voltage: DC 5V
Sliding noise:t2≤2ms
Operating Force: 120±30gf
Number and position of detent: 12detents(Step angle:30°±2°)
Encoder types: 04mm size low-profile thin rotary encoder (incremental type) for microscopic current circuits, used in electronic equipment.
Encoder circuit

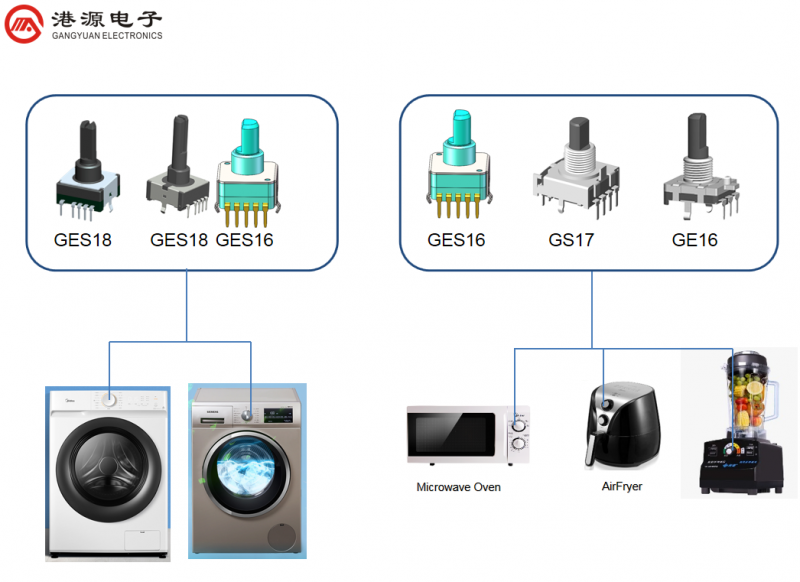

Product Application
Unique side button knob design, you can twist and rotate to turn pages, switch the interface to zoom in/out, control brightness, etc.
Product Advantage: Small size, high temperature resistance, easy patching, continuous fatigue life of up to 100,000 times

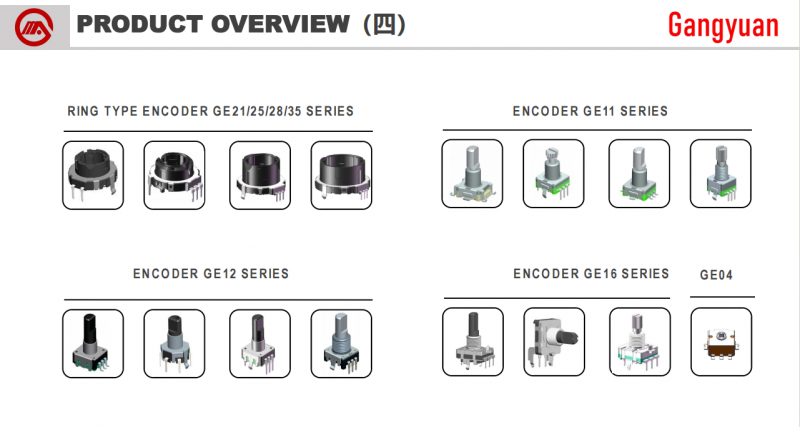

Similar options

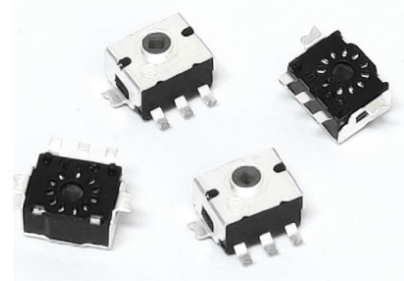

Incremental type SMD SMT no push button switch rotary encoder.
Factory
Gangyuan Electronics was established in 1994and has 30 yearsof manufacturing experience. For 30 years, it has been focusing on the research
and development and manufactureof tact switches, micro switches and other electronic switches. More than 2000 products.
The company's registered capital is 34.48 million RMB, and it has 3 modern standard workshops. Covers a total area of 63148㎡.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
This Series toggle switch provide a variety of switch functions, SPDT, DPDT, 3PDT, 4PDT. Also Different shapes of handles and accessories fit for different applications ,such as Telecommunications, Instrumentation, Networking and Medical equipment etc.

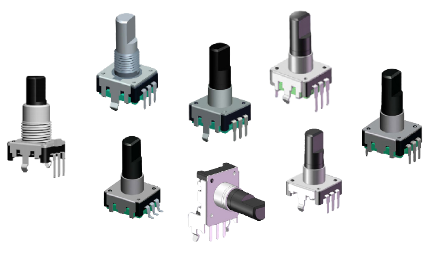

GY Rotary encoder is a device that can compile and analyze data signals and convert the data signals into storage, transmission, communication and other signals. To get an understanding, rotary encoder converts the rotatation of the angular displacement of the encoder and the linear displacement of the yardstick into electrical signals.
