A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to analog or digital output signals.
Brand:
GangyuanItem NO.:
GE1103F3F21/8-6V200Order(MOQ):
500Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time：

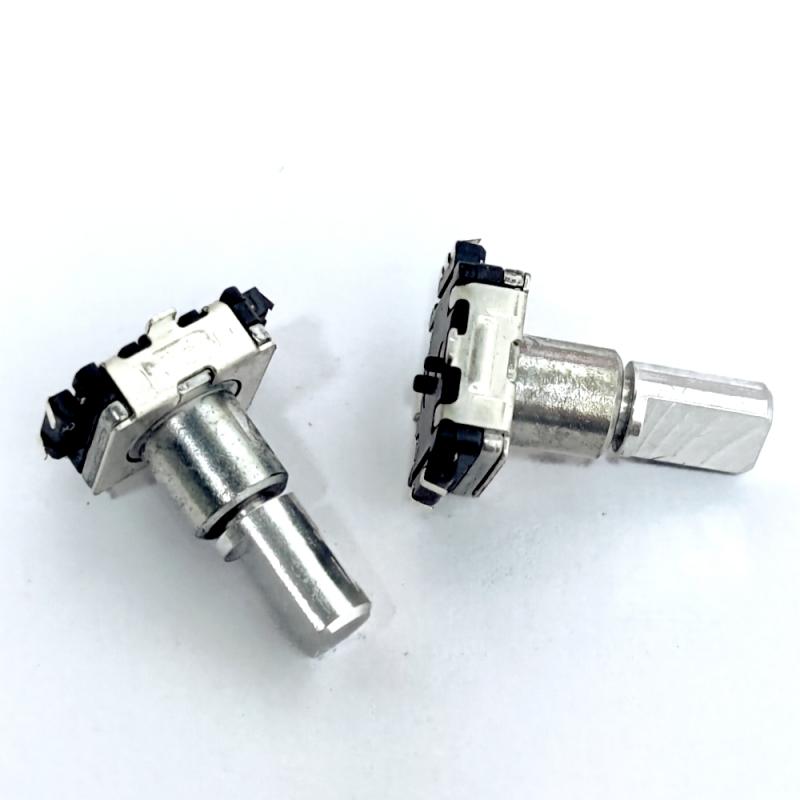

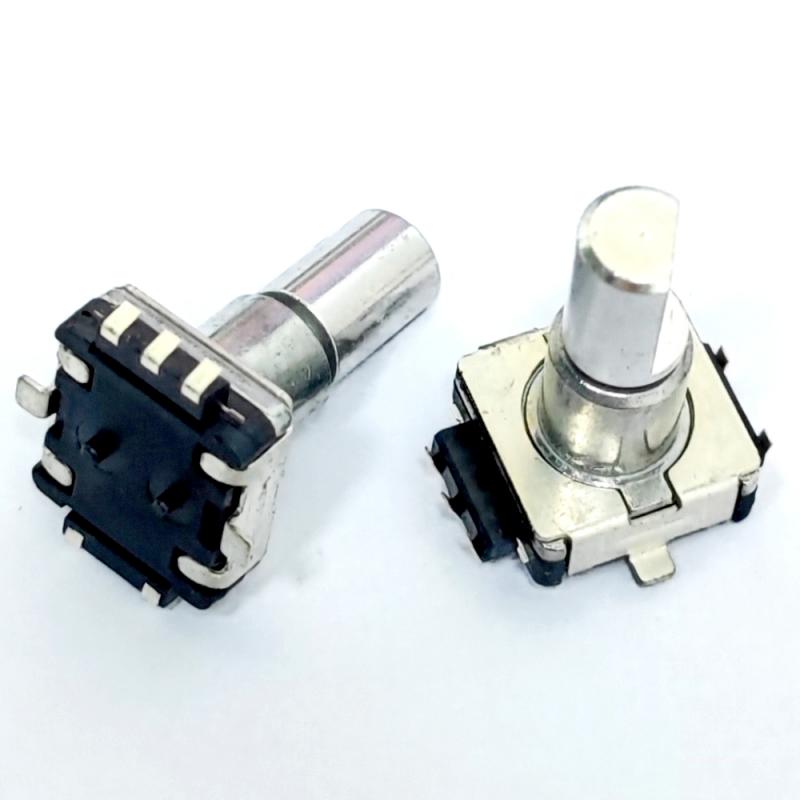

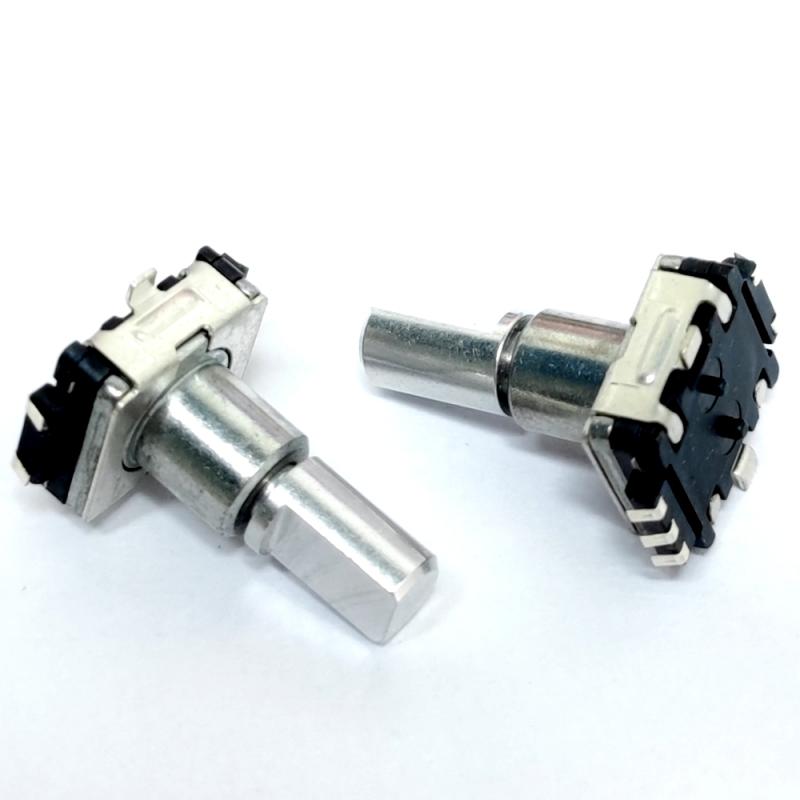

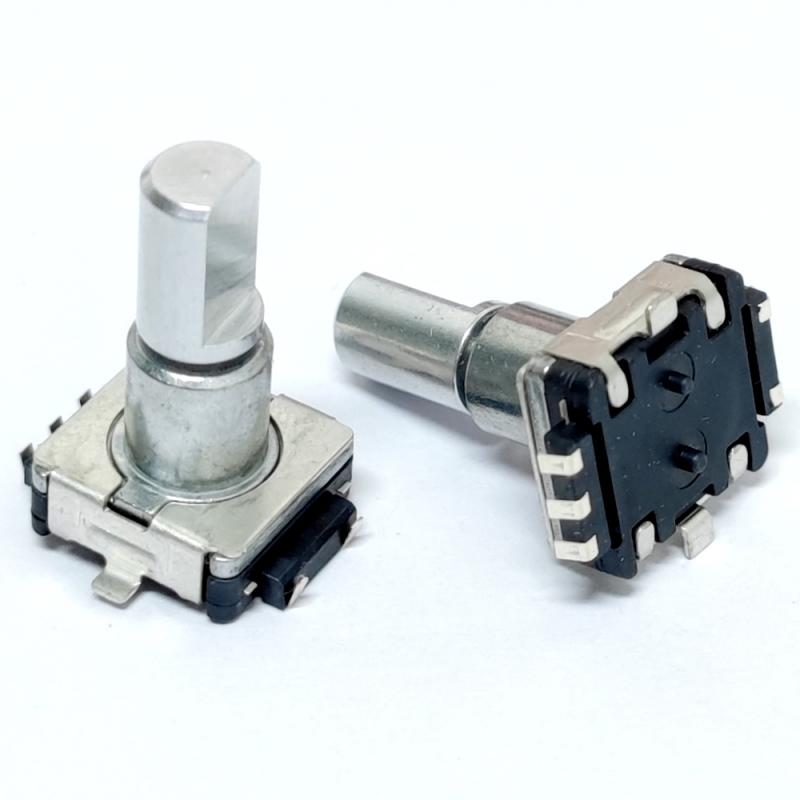

7-15 working days11mm size low-profile thin incremental rotary encoder
EC11 optical rotary encoder
Specification
Rated voltage: DC 5V
Resolution: 15 pulses/360°
Number and position of detent: 30detents(Step angle:12°±2°
With switch: Yes

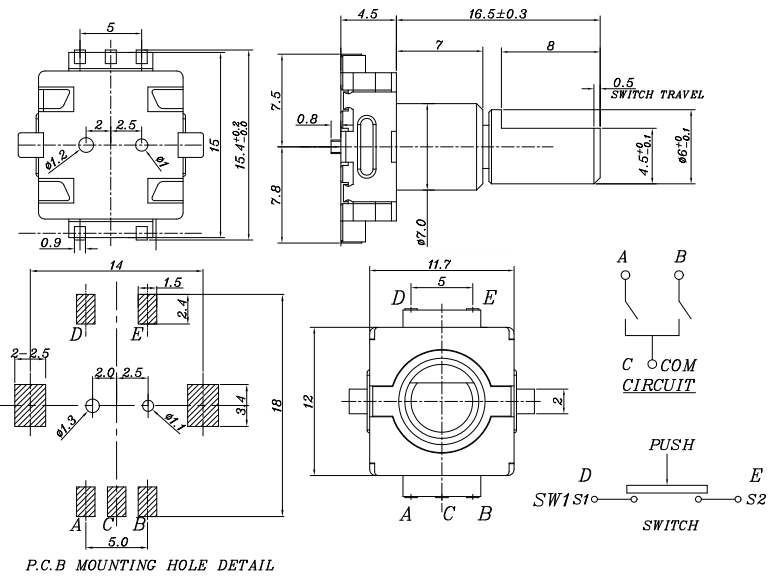

Drawing
Incremental encoder
A rotary incremental encoder may use mechanical, optical or magnetic sensors to detect rotational position changes.
The mechanical type is commonly employed as a manually operated "digital potentiometer" control on electronic equipment.
For example, modern home and car stereos typically use mechanical rotary encoders as volume controls.
Encoders with mechanical sensors require switch debouncing and consequently are limited in the rotational speeds they can handle.
Alpplication
Rotary encoders are used in a wide range of applications that require monitoring or control, or both, of mechanical systems,
including industrial controls, robotics, photographic lenses,[2] computer input devices such as optomechanical mice and trackballs,
controlled stress rheometers, and rotating radar platforms.
