Wenzhou Gangyuan Electronics Co.,Ltd.
This tact switch for automotive is divided into gears and no gears, with different hand feelings and a variety of illuminated color options.
Brand:
GangyuanItem NO.:
CH01Order(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
WhiteShipping Port:
Ningbo/ShenzhenLead Time：

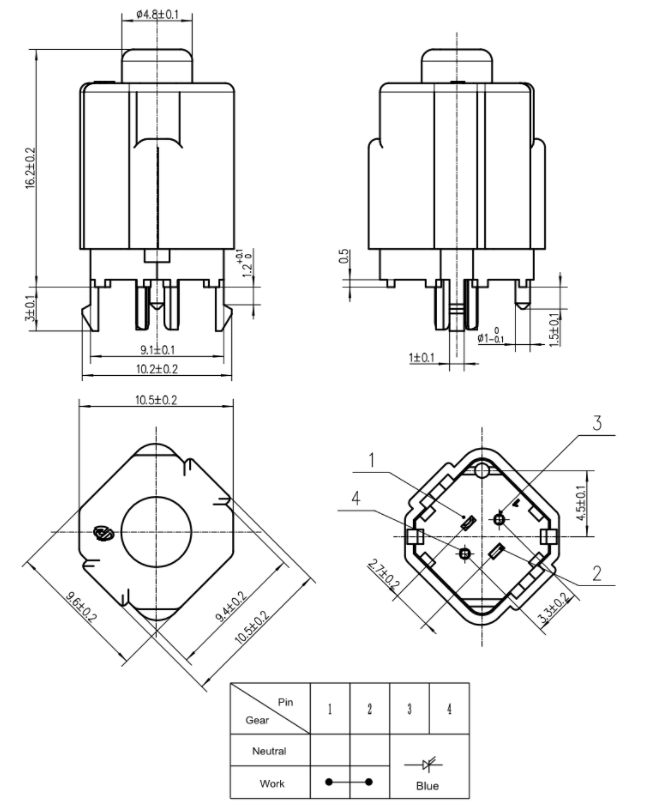

7-14 Working Days For PaymentOutline (mm)
10.00mm x 10.00mmMounting Type
Through Holelllumination
llluminatedIP Rating

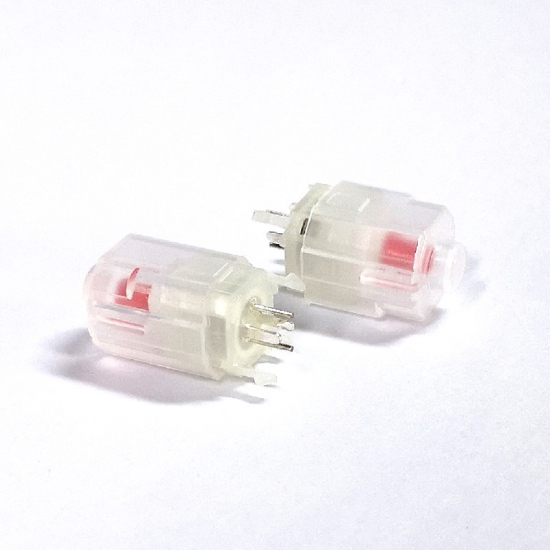

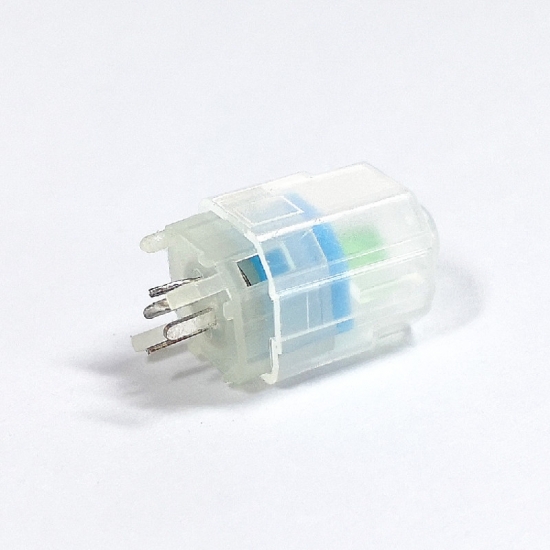

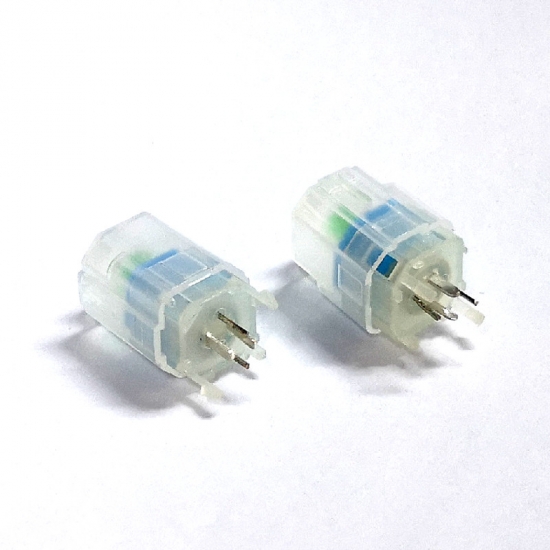

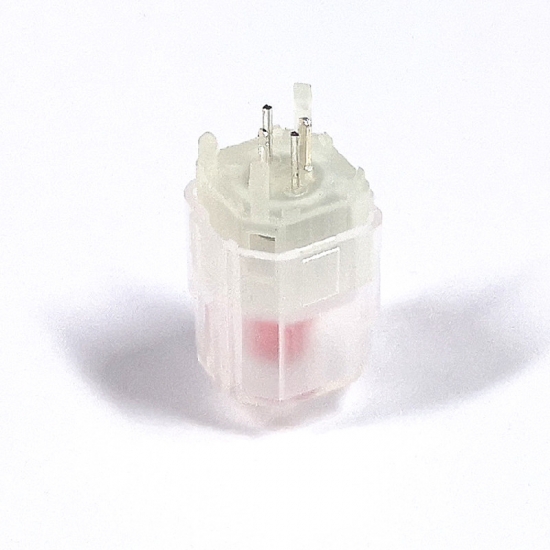

IP4X10*10mm Dip white push button with led tact switch
Product Description
|
Product Name
|
Push button switch
|
|
Voltage
|
DC3V~28V
|
|
Current
|
0.1A~0.5A
|
|
Operating force
|
7.5 N± 2N
|
|
Size
|
10x10mm
|
|
Life
|
≥50000 cycles
|
|
Pin
|
4 pin
|
Types of tact switch
① Waterproof tact switch.
② With led tact switch
④ SMD&DIP tact switch
⑤ Side horizontal tact switch
Application
Tact switches have a wide range of applications: household appliances, 3C (computers, communications, consumer electronics), office equipment, medical, security, personal care, automotive electronics, industrial control and other fields.
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
