Wenzhou Gangyuan Electronics Co.,Ltd.

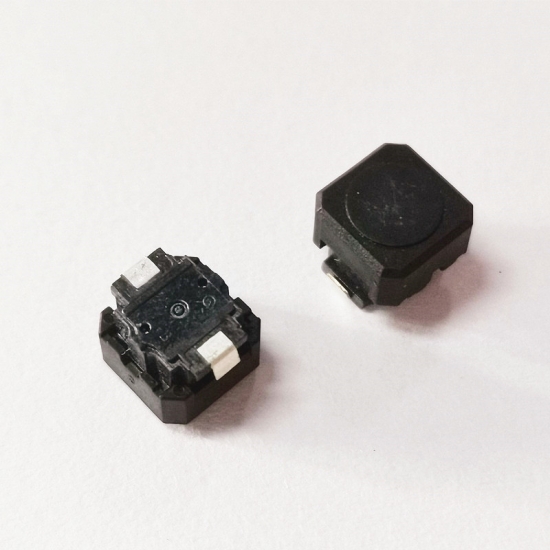

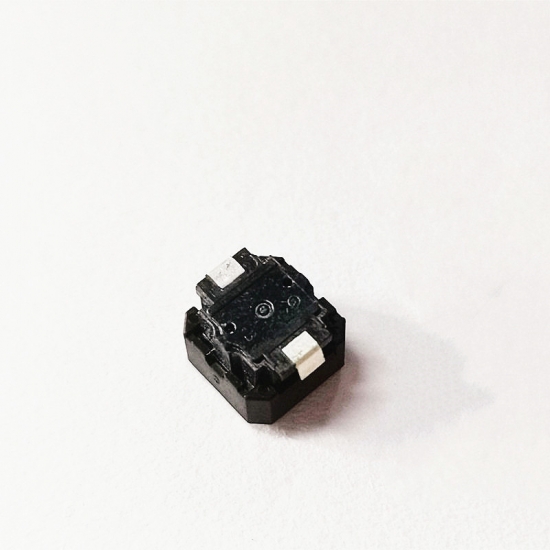

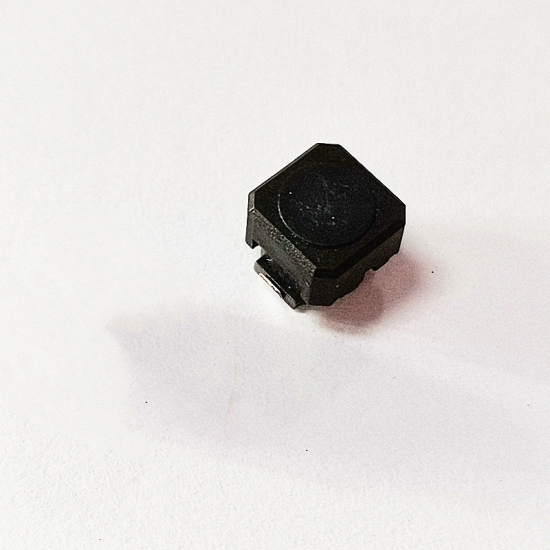

Its knob is square with metal feet
Brand:
GangyuanItem NO.:
KTD0622-0501M0301Order(MOQ):
100Payment:
EXWProduct Origin:
Zhejiang，ChinaColor:
BlackShipping Port:
Ningbo/shenzhenLead Time：
7-14 working days for paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4X
Miniature electronics tactile switch factory price
product description
|
Contact Resistance |
100mΩ Max |
|
Insulation Resistance |
100MΩ Min |
|
Operating Force |
350 ± 80 gf |
|
Travel |
1.05+0.2mm |
|
Return Force
|
30gf Min |
|
Stem Strength |
5 N min |

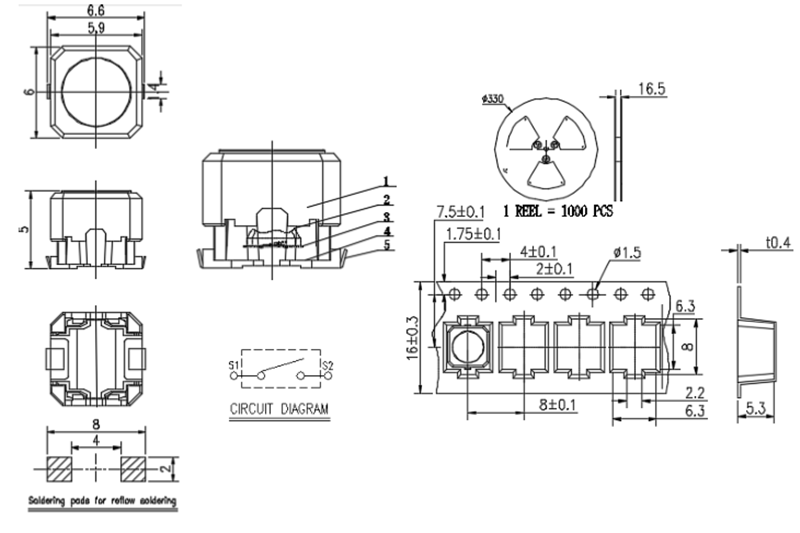

Dimension
Similar product
KTD0621-0501J0101 （ operating force：300 ± 90 gf）
KTD0621-0501B0101 （operating force：160 ± 70 gf）
KTD0621-0501C0101 （operating force：250 ± 70 gf）
