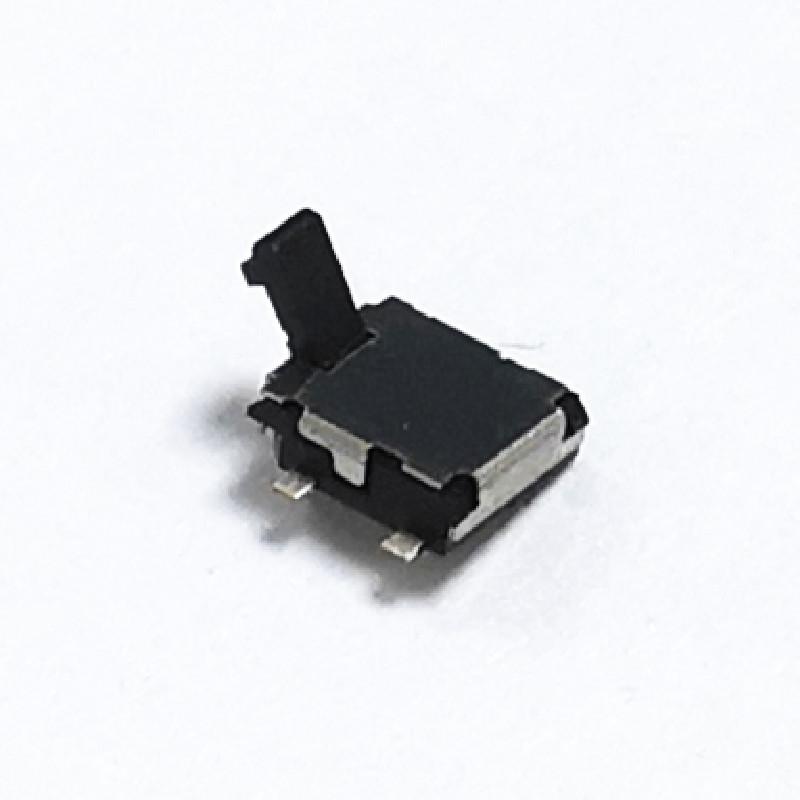

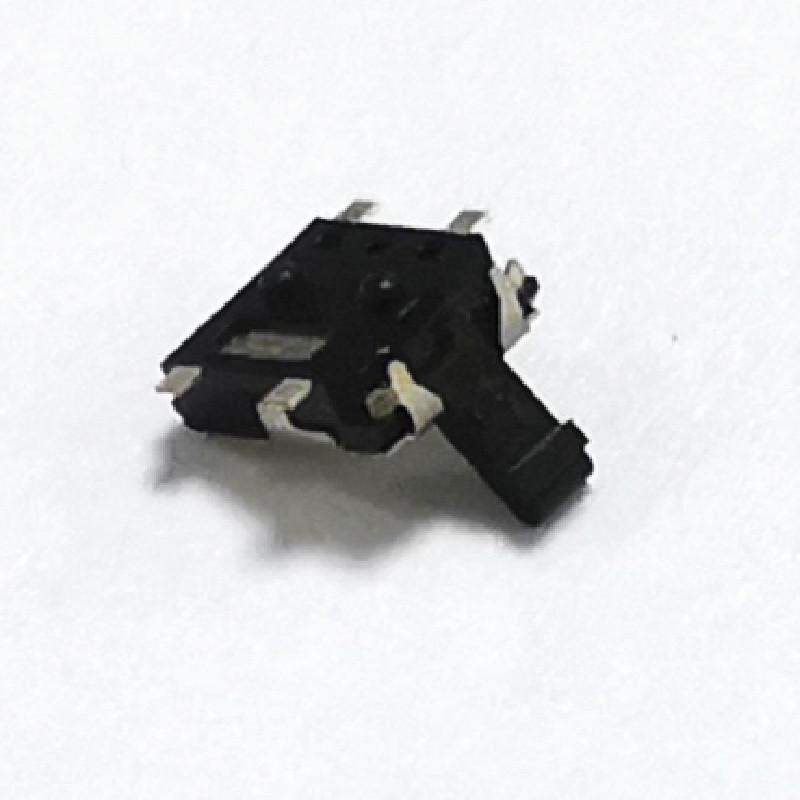

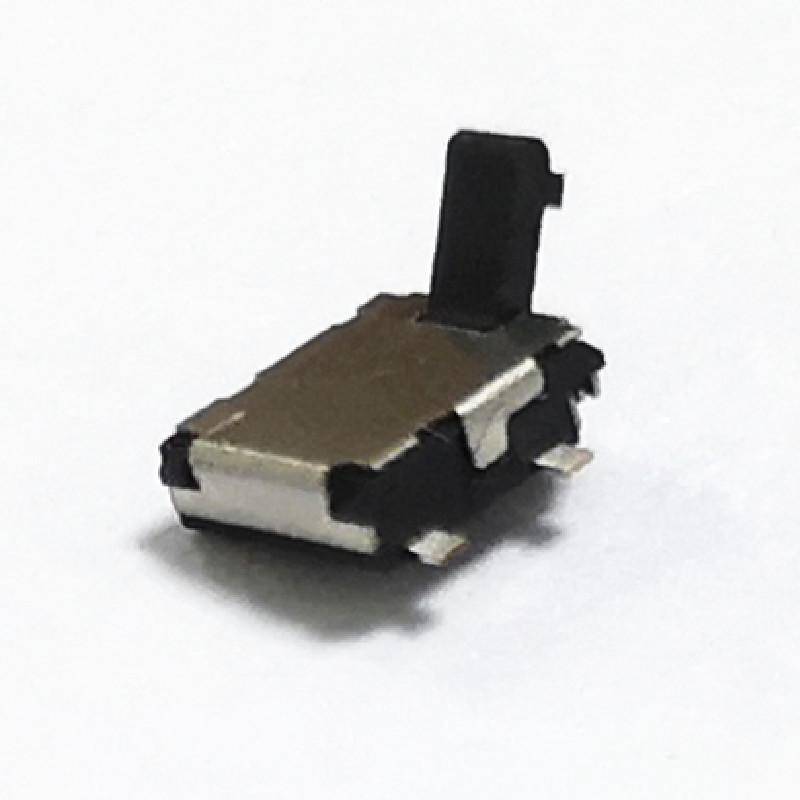

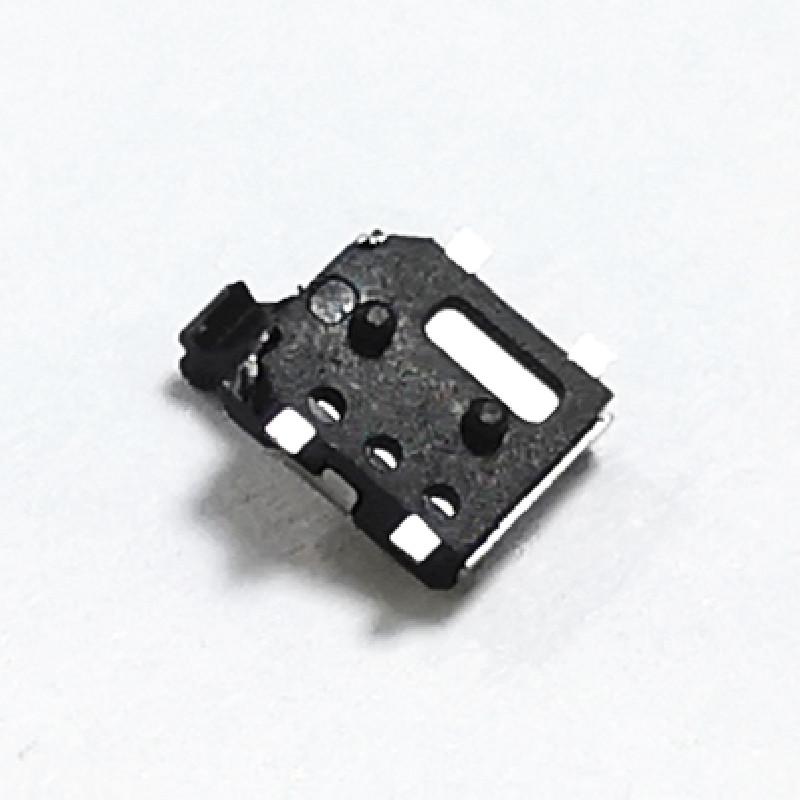

Sub-miniature Long travel detector switch

This detector switch is divided into with column and without column.

Brand:
Gangyuan
Item NO.:
KAM4236
Order(MOQ):
2500
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
WenZhou/Shenzhen
Lead Time：
7-14 Working Days For Payment

Product Detail

With Column positioned 50mA 12VDC detector switch

motion detector on off switch reflow detector switch manufacturer

Parameter

Contact Resistance: ≤200mΩ

Insulation Resistance: ≥100MΩ

Bounce: ON-3msec.max OFF-8msec.max

Operating Force:30±20gf

Full Travel: 1.5±0.3mm

Return Force:30±20gf min

Stem Strength: 20N.min.

Operation life: 200000

Soldering temperature: 350℃ Max

Continuous soldering time: 3 s Max

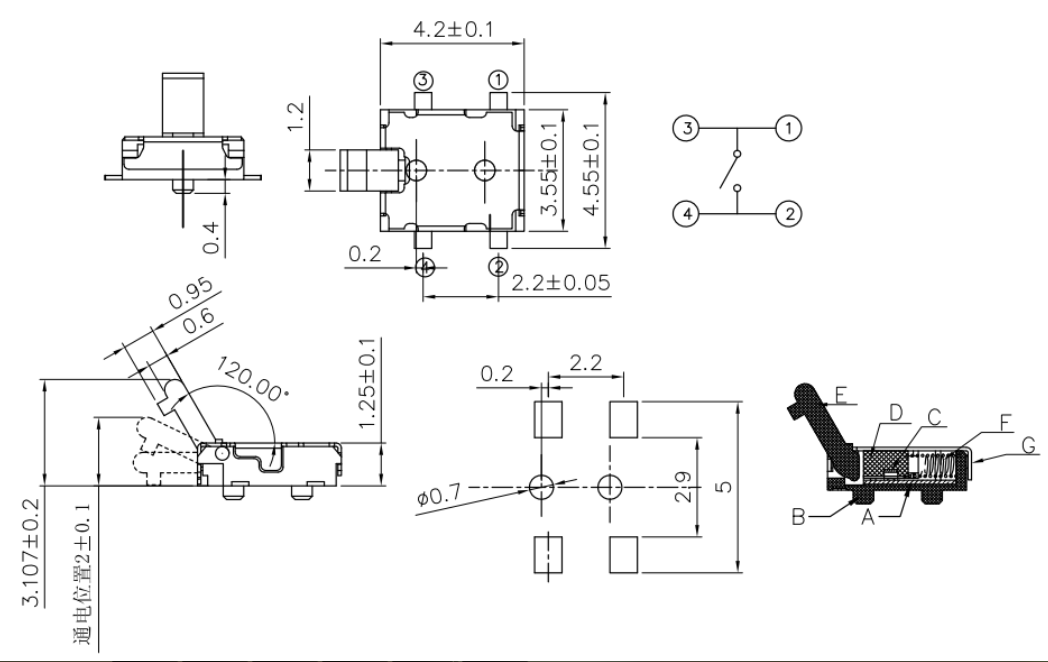

Drawing

Application

Mobile
Healthcare
Audio/TV
Automotive

SOLDERING CONDITIONS

1. Hand soldering

(1) Soldering temperature: 350℃ Max.

(2) Continuous soldering time: 3 s Max.

2. Automatic soldering

In case the automatic flow soldering is to be used

(1) Preheat -------------- 150℃ ~ 175℃, 40 ~ 80 sec

(2) Peak temperature ----- 260℃ (max)

(3) Soldering area temperature ------ 260℃, 1 ~ 4 sec, 2 times (max)

(4) After high temperature,the decay data about perfarmance will be±20%
