smd detector Switches are used to “detect” internal mechanical movements and convert human manual operations, such as the opening of a door , to electronic signals.
Brand:
GangyuanItem NO.:
GY-C-15B-LeftOrder(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
5.70mm x 5.45mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating

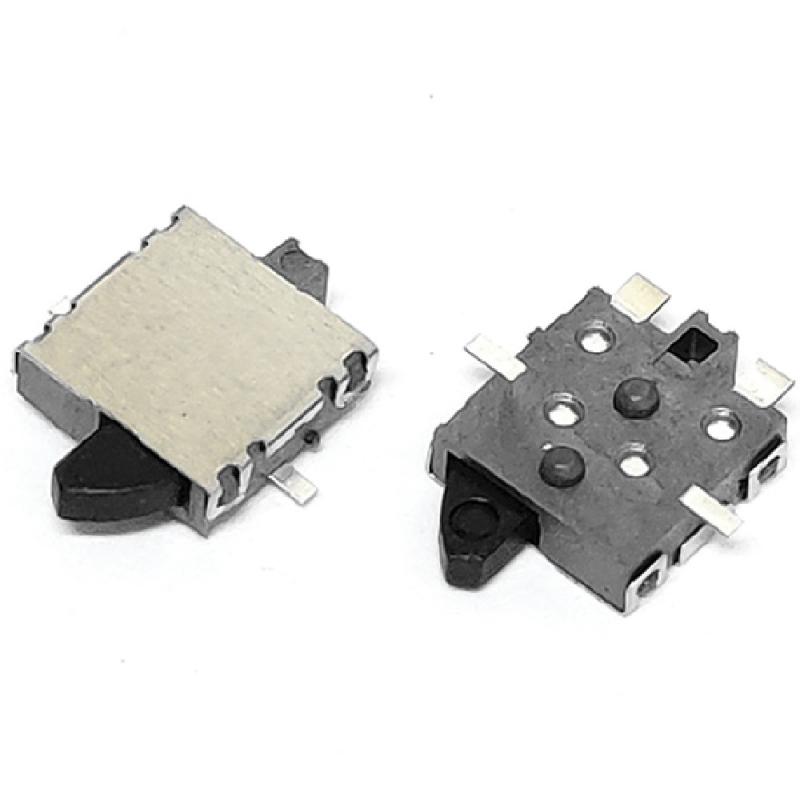

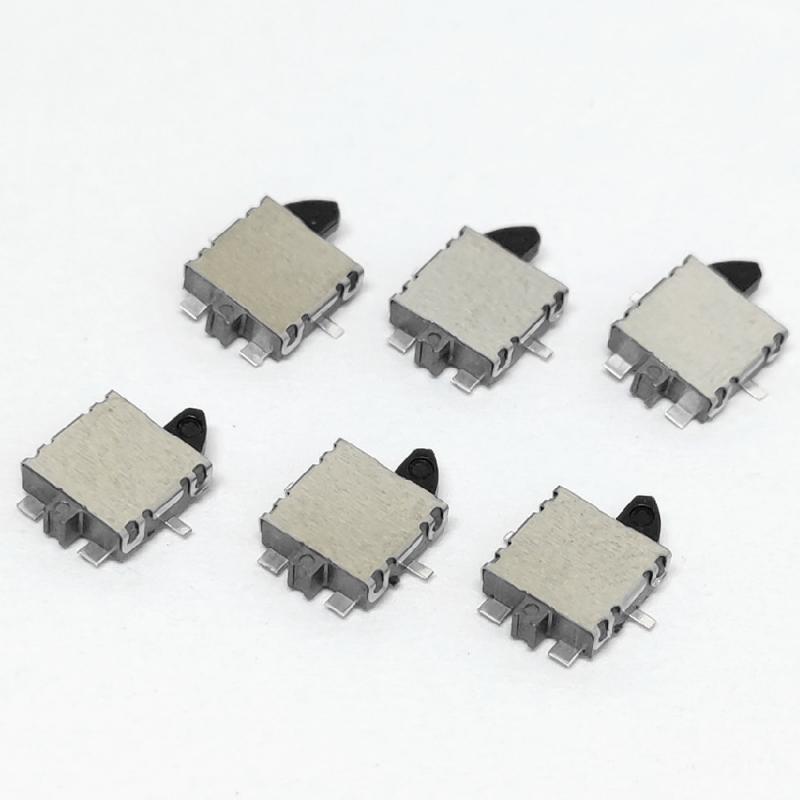

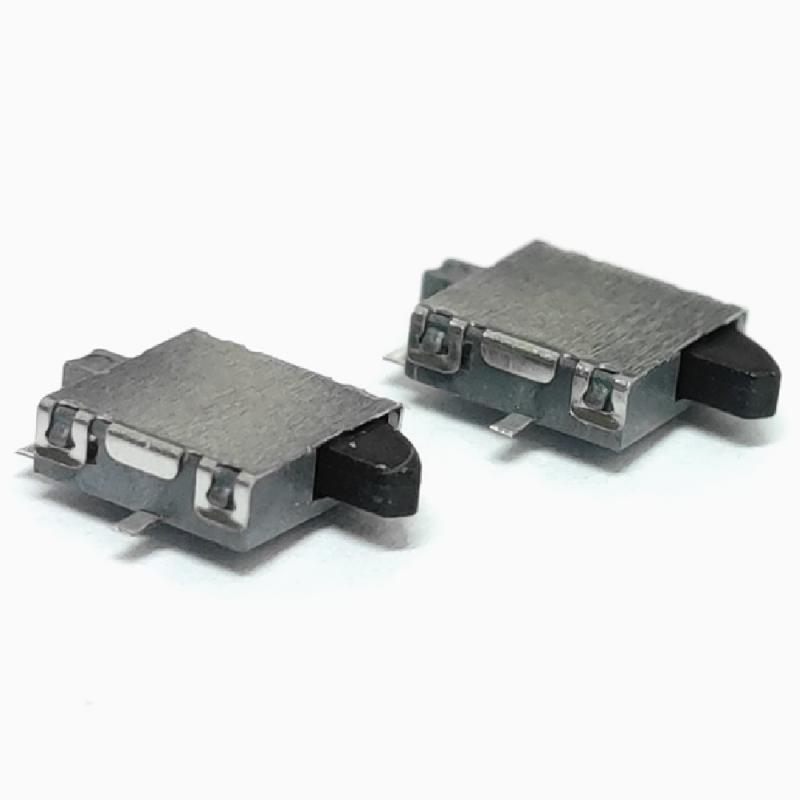

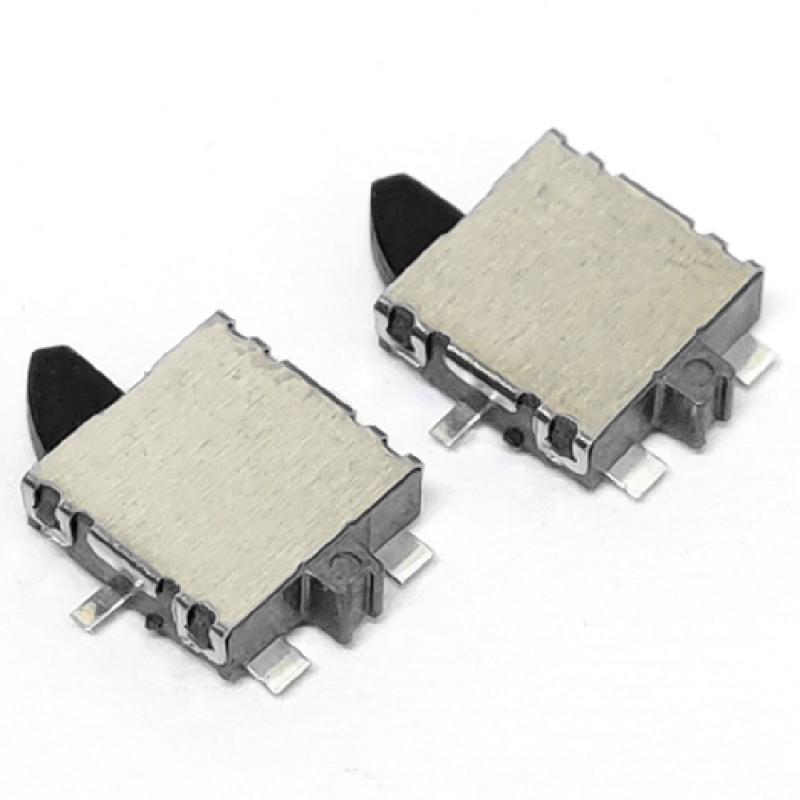

No IP Ratingwholesale 4 pin left side operation type motion detector switch
Switches manufacturer
Characteristics
Rating: DC12V 50mA
Contact resistance: ≥100MΩ
Insulation resistance:≤200mΩ
Electrical life: 50000 cycles
Operating force: 50gf±30gf
Travel: 2±0.5mm
Circuit type: Normally-open
Positioning: With boss
Terminal type: Flat terminal
Type: Leftside operation type or Rightside operation type

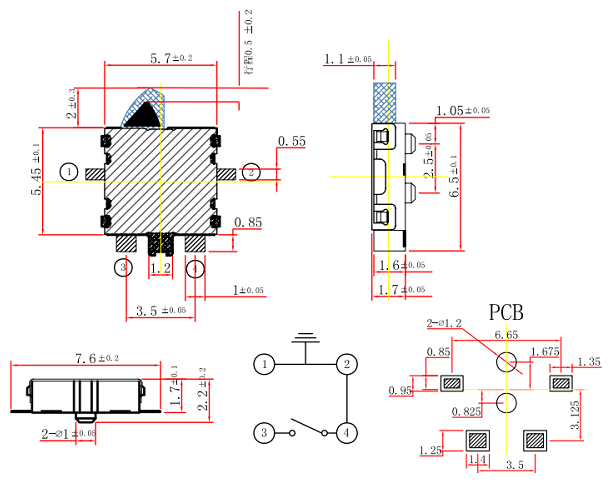

Dimentions
Recommended applications
Detection of media in portable electronic equipment
( Mobile phones / CD-ROM / DVD players / Digital still cameras / Heated tobacco )
Direction of Motion
Left-side operation type
Right-side operation type
Advantage
Gangyuan has been focusing on the production and development of miniaturized electronic components for 25 years.
1) Professional Developing Team - Long-term cooperation with world top 500 companies such as CANON, OMRON, etc.,
we totally understand the needs of industry benchmark customers;

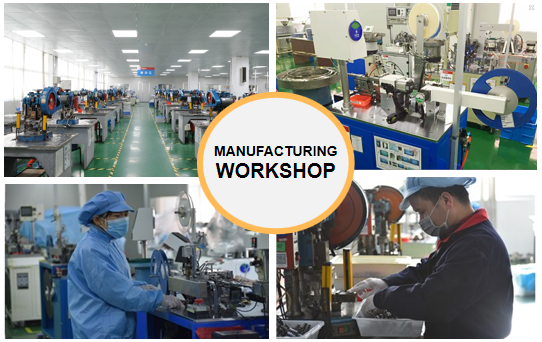

2) Automated manufacturing - Using raw materials imported from Japan and South Korea； More than 85% of products
are manufactured automatically to ensure stable product quality and reliable delivery guarantee;
3) Over 2000 models - Reach categories and wide application range; Meet customer one-stop procurement, reduce costs；
Keep the product comprehensive cost leading;
4) Quick response pre-sales and after-sales service team - Technical specialists follow up throughout the process, online customer service；
The establishment of a multi-site localized service base provide customers with quick response service support；
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
3.8x7.5mm motion detector switch smd detector switches factory mini electric switch for Samsung Panasonic, super mini, long using life. use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
Private mold 4 long pin with push button Motion Detector Switch white color, Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
4 terminal smd detector switches manufacturer super mini,Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
The detector switch is an electromechanical device used to detect the internal mechanical motion or circuit state of the device.
2 pins dip not smt solder terminal motion detector switch
4 terminal smd detector switches manufacturer super mini,Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
The detector switch is a switch that is connected with other circuit elements to detect the parameters of the element or circuit (such as current, voltage, etc.). The detector switch has an induction function.
This detector switch is divided into with column and without column.
