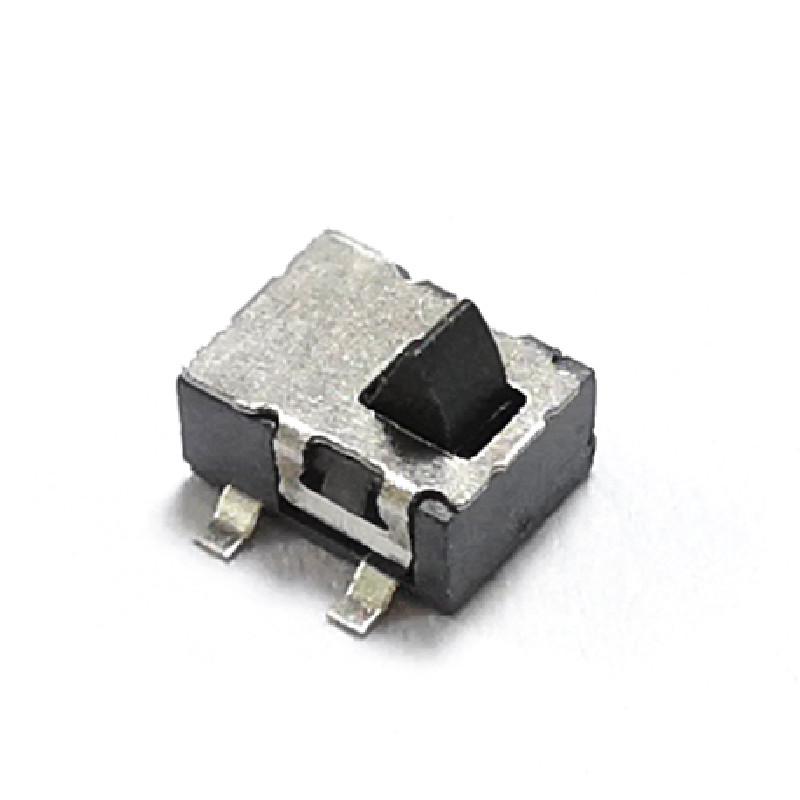

The detector switch is a switch that is connected with other circuit elements to detect the parameters of the element or circuit (such as current, voltage, etc.). The detector switch has an induction function.
Brand:
GangyuanItem NO.:
KAM4736K-4L0375Order(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
ChinaColor:
BlackShipping Port:
Ningbo/ShenzhenLead Time:
7-14 Working Days For PaymentInduction function smart push button detector switch
DC12V 50mA detector switch
Product Parameter
● Product Name: Detector switch
● Full Travel: 1.0±0.5mm
● Rating: 12VDC 50mA
● Solder temperature: 245±5℃
● Operating Temperature: -20℃~+85℃
● Operating Force: 50±20 gf
●Operating life: 50,000 cycles

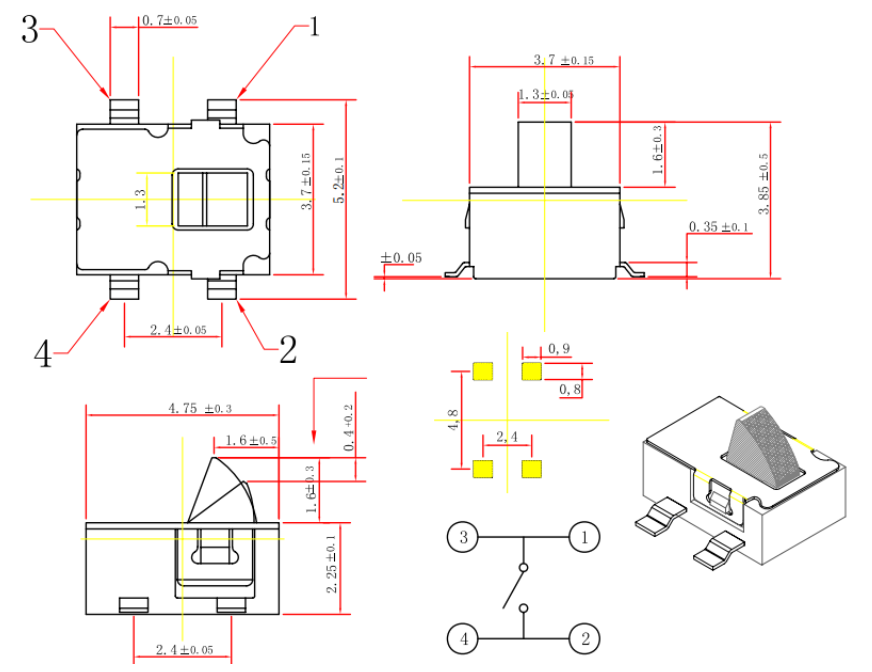

Product Drawing
The Application of Detector Switch
The scope of application of the detector switch is also very wide: the AV direction is mainly used in: cameras and game consoles. The car direction includes car CD, ETC and car space ICT direction DSC, PC mobile optical drive, smart phone.
The Role of the Detector Switch
1. Contact output type
2. Photoelectric coupling output type
3. DC 3-wire type:
a. Voltage output type
b. Current output type
4. DC 2-wire type
FAQ
1. Q: Are you switch manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6. Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
