Minn Detector Switches are used to “detect” internal mechanical movements and convert human manual operations, such as the opening of a door , to electronic signals.
Brand:
GangyuanItem NO.:
KFC-V-108Order(MOQ):
500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：

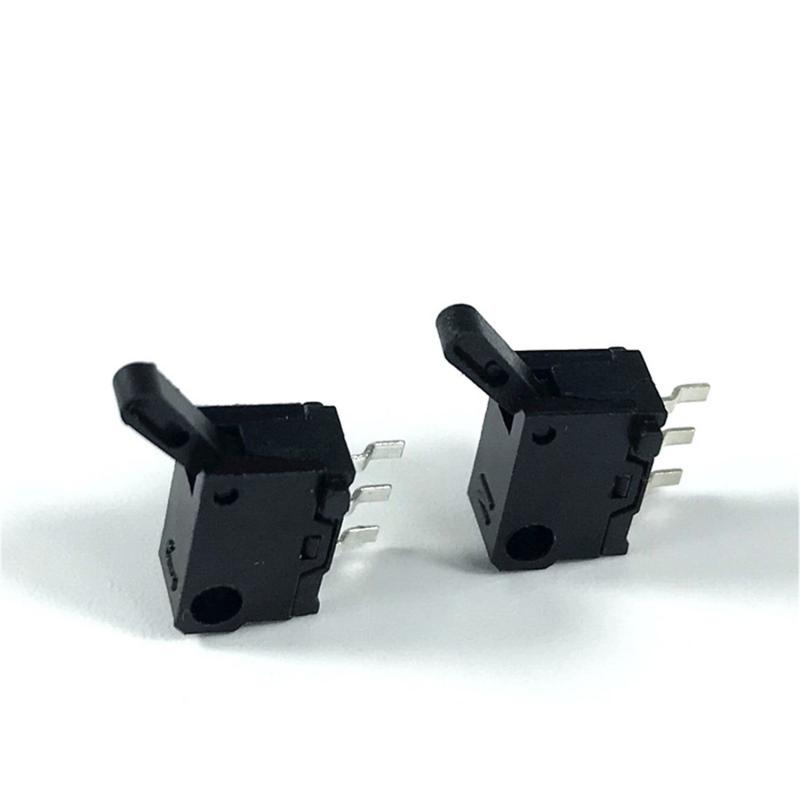

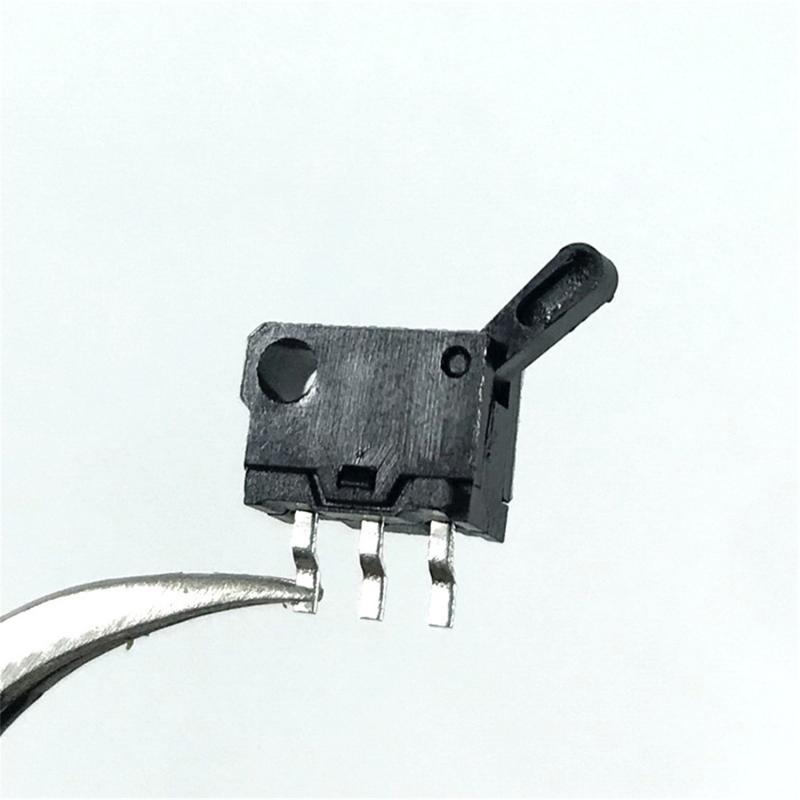

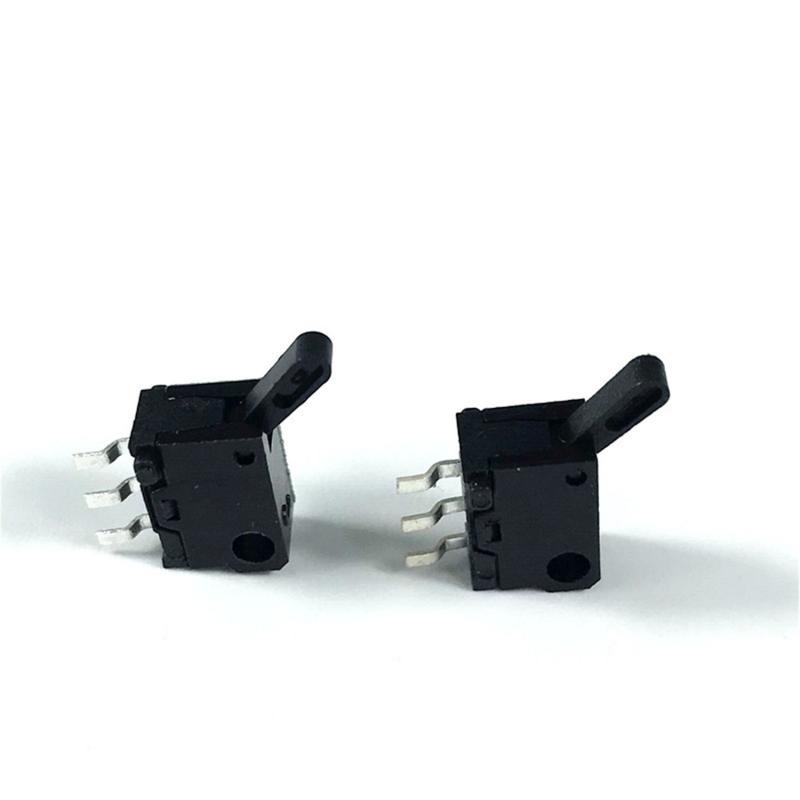

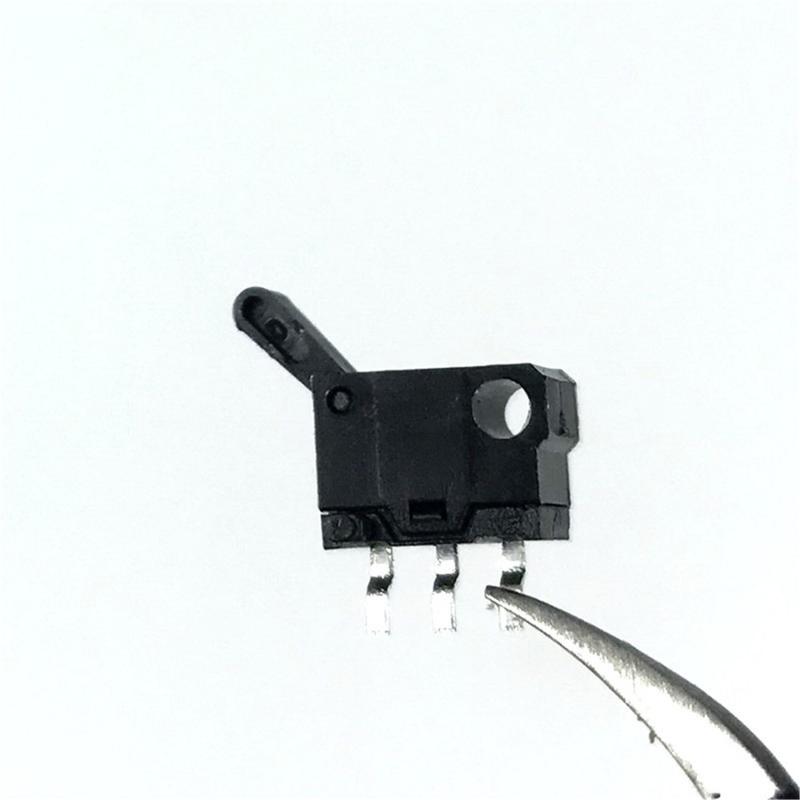

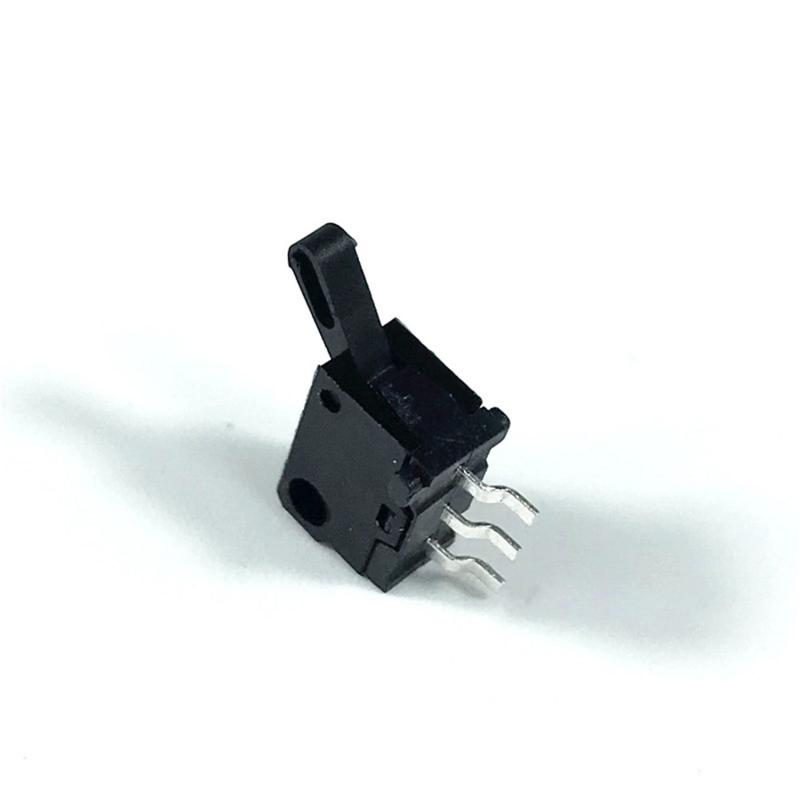

7-14 working days for paymentspdt 3 terminals micro detector switch with lever actuator
Compact and light weight with 3-mm long stroke
Characteristics
Max. Current: 0.1A
Max. Voltage: DC 30V
Operating force: 0.3-0.7N
Electrical life: 50000 Cycles
Storage Temperature: 20℃~+70℃
Working Temperature: -10℃~60℃

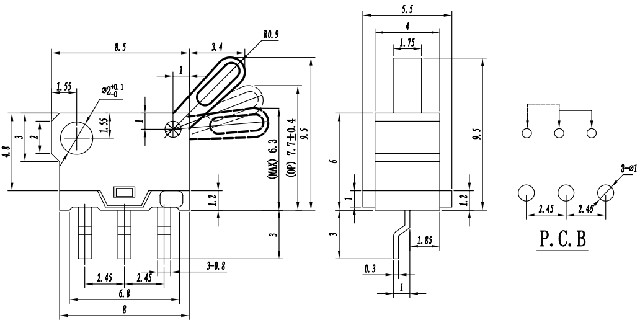

Mounting Holes

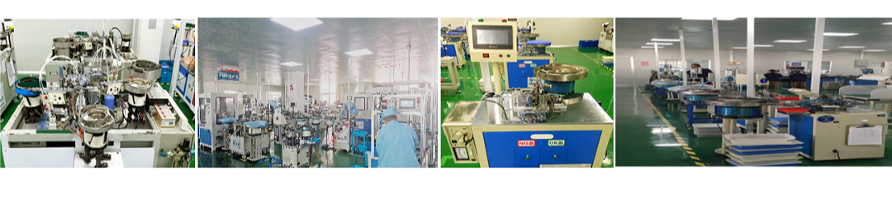

Automatic equipment
Automatic production equipment ( 202 Sets )
Automatic testing equipment ( 36 Sets )
detector switch
smd detector switch / detector switch smd smt 4 pin
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.

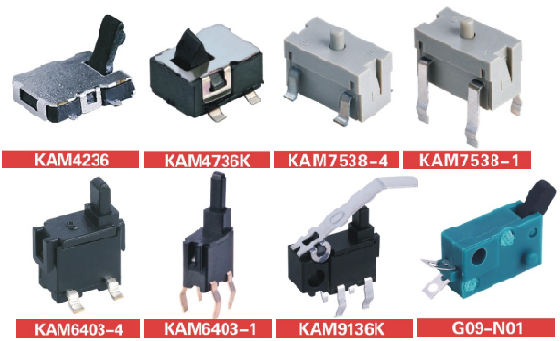

Categories
3.8x7.5mm motion detector switch smd detector switches factory mini electric switch for Samsung Panasonic, super mini, long using life. use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
Private mold 4 long pin with push button Motion Detector Switch white color, Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
4 terminal smd detector switches manufacturer super mini,Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
The detector switch is an electromechanical device used to detect the internal mechanical motion or circuit state of the device.
smd detector Switches are used to “detect” internal mechanical movements and convert human manual operations, such as the opening of a door , to electronic signals.
2 pins dip not smt solder terminal motion detector switch
4 terminal smd detector switches manufacturer super mini,Use for automotive Electronics, FP-TV HD Audio/DVD Player, PC and peripherals.
The detector switch is a switch that is connected with other circuit elements to detect the parameters of the element or circuit (such as current, voltage, etc.). The detector switch has an induction function.
