Wenzhou Gangyuan Electronics Co.,Ltd.
The micro-tact switch is mainly composed of a switch button, contacts, contact reeds and a shell. Its working principle is based on the conversion of mechanical force and electrical signals, and the circuit is turned on and off by operating the switch button.
Brand:
GangyuanItem NO.:
KAN0649-0731C0101-22Order(MOQ):
10pcs samplePayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-15 working days for paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4Xtact switch manufacturersurface mount horizontal smd tact switch 6*6
Basic Information
Type: Square button 6x6mm tactile switch
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Life: 100,000cycles
Product height: 7.3mm
Working principle of push button tact switch
1. Initial state: When not pressed, the contacts are in the disconnected state, the circuit is disconnected, and the device stops working.
2. Press the button: When the button is pressed, the distance between the contacts is reduced, so that the circuit forms a path.
3. Current passes: After the circuit forms a path, the current begins to flow and the device starts working.
4. Release the button: When the button is released, the force of the spring restores the button to its original position, the distance between
the contacts increases, the circuit is disconnected, and the device stops working.

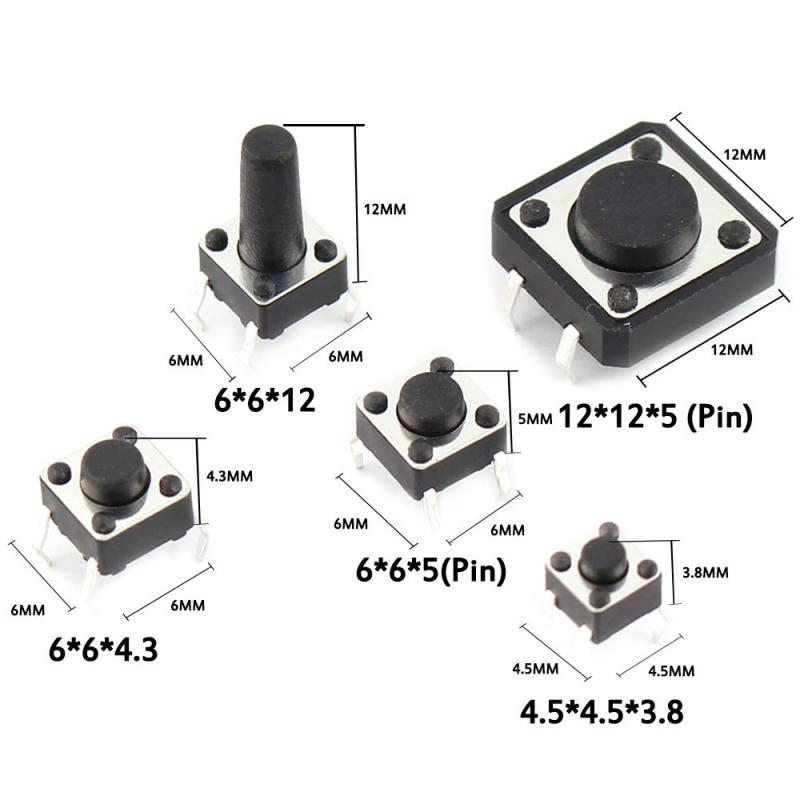

Tact Switch Dimension

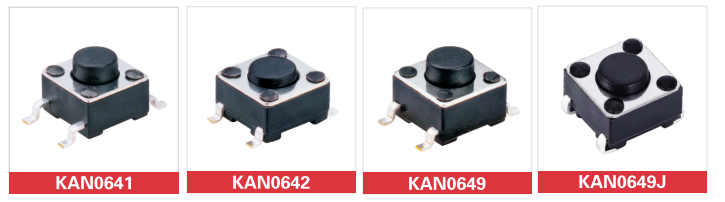

Different foot spacing options
Wholesales 6x6mm smd push tact switch
KAN0641: 10mm Pin
KAN0642: 8mm Pin
KAN0649: 9mm Pin
KAN0649J: 6.7mm Pin
