The core component of a mini tact switch is a metal dome, which is usually located at the bottom of the switch.
Brand:
GangyuanItem NO.:
KAN0651-0501COrder(MOQ):
10pcs samplePayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-15 working days for paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

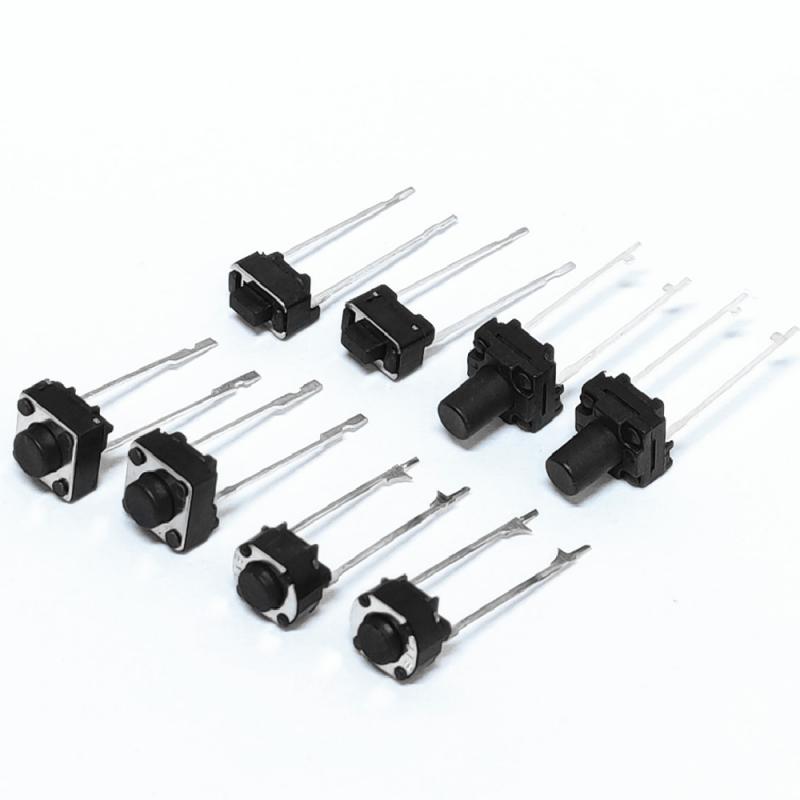

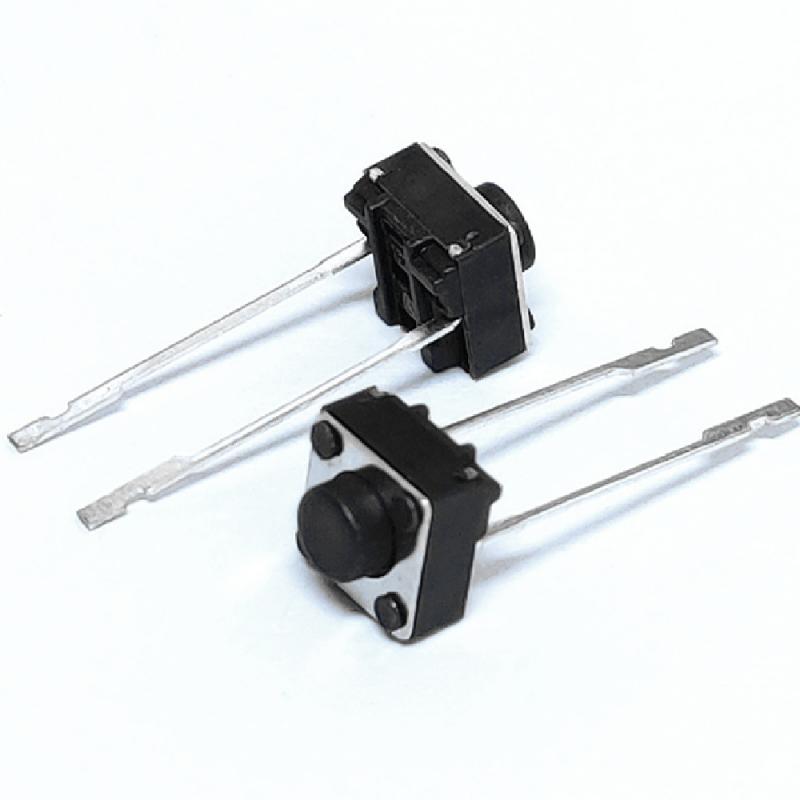

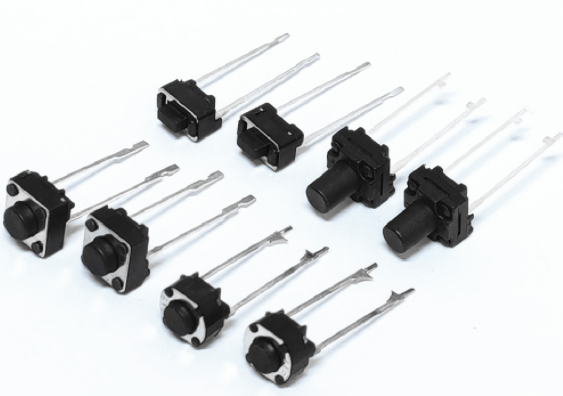

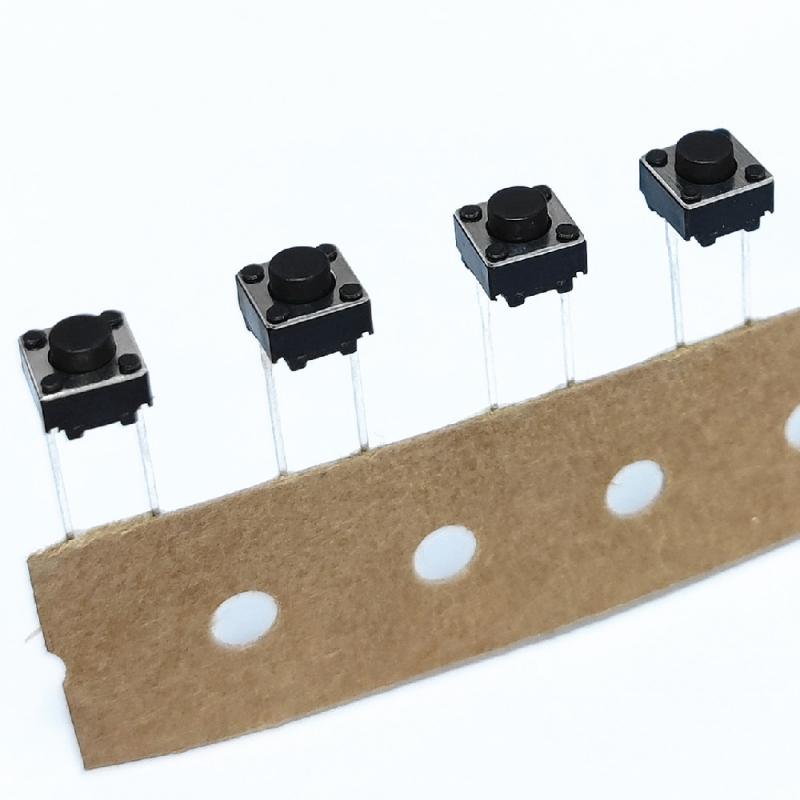

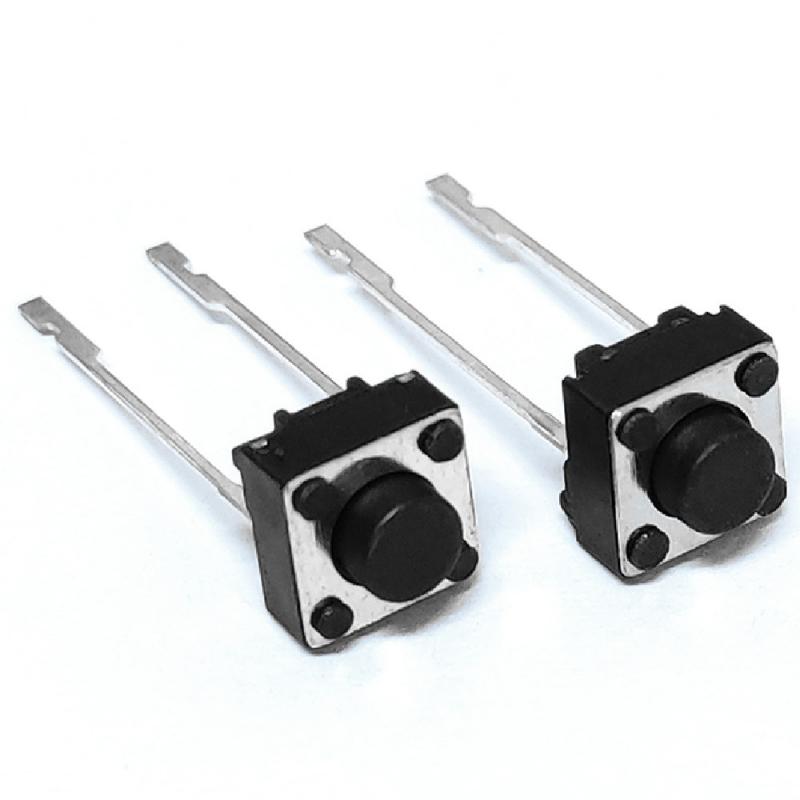

IP4XFactory various height push button 2 pin 6MM tact switch
Basic Information
Type: Microswitch Square Dip tactile switch
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Life: 80,000cycles
Product height: 5mm
What is a tact switch ?
The core component of a tact switch is a metal spring, which is usually located at the bottom of the switch.
When we touch the switch with our fingers or other objects, the spring will be deformed by pressure, so that the circuit is closed, the current can pass,
and the device is activated. Once the finger or object is removed, the spring will return to its original state due to its own elasticity, the circuit is disconnected,
and the device stops working. This process is the rebound process of the tact switch.

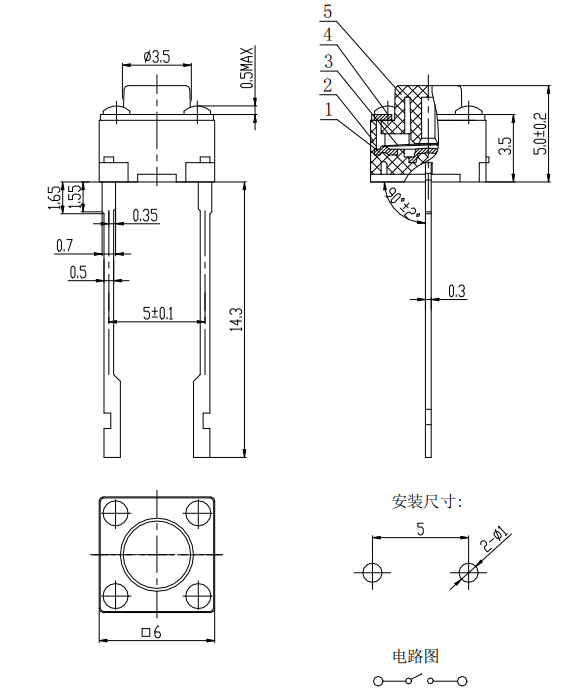

Tact Switch Dimension
Application of Tactile Switches
Tactile switches are widely used in various electronic products due to their convenient operation and good user experience. For example:
(1) Household appliances: such as TV remote controls, lamps, fans, etc.
(2) Consumer electronics: such as mobile phones, tablets, headphones, etc.
(3) Office equipment: such as calculators, printers, copiers, etc.
(4) Industrial control: such as control panels, security systems, etc.
In these applications, the rebound characteristics of the touch switch ensure the quick response and efficient operation of the equipment.
More references
momentary tact switch
6mm 2 pin tact siwtch
3.5mm 2 pin tact switch
6x6mm waterproof dip tact switch
2pin round tact switch
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
