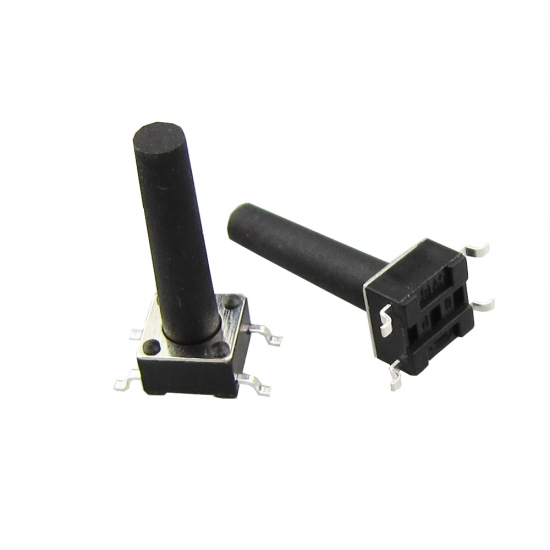

Nice Quality SMD Tact Switch 6*6mm KAN0641

Item: KAN0641

Size: 6*6*H (4.3-18mm)

Rating: 12VDC 50mA

Operating life: 60,000/ 80,000/ 100,000 cycles

Operating force: 100gf, 160gf, 260gf

MOQ: 1000

Brand:
Gangyuan
Item NO.:
KAN0641
Order(MOQ):
1000
Payment:
EXW, FOB, DDP and etc.
Product Origin:
Zhengjiang
Color:
Black
Shipping Port:
Shenzhen, Ningbo
Lead Time：
7-15 working days depends on real Qty

Product Detail

Basic Information

Contact Resistance	≤100mΩ
Insulation Resistance	≥100MΩ
Full Travel	0.25±0.1mm
Stem Strength	20N.min.
Operating force	100gf, 160gf, 260gf
Operating life	60,000/ 80,000/ 100,000 cycles
Rating	12VDC 50mA

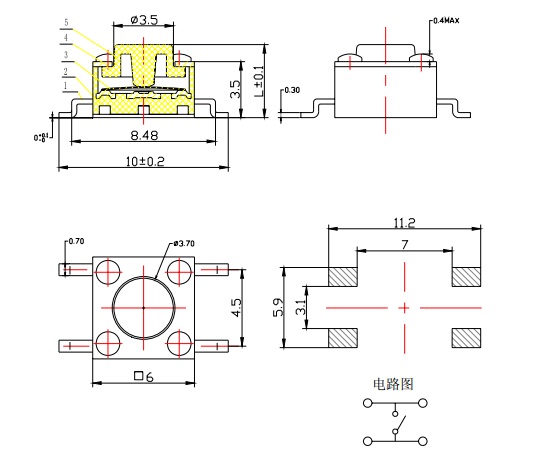

Drawing

Appliance

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
