The waterproof tact switch is a functional electronic switch. When in use, you only need to press the switch button lightly to turn on the switch. The internal structure of the switch relies on the metal spring to bounce under force to achieve on and off.
Brand:
GangyuanItem NO.:
KAN0616 SeriesOrder(MOQ):
10pcs samplesPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-15 working daysOutline (mm)
6.00mm x 6.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

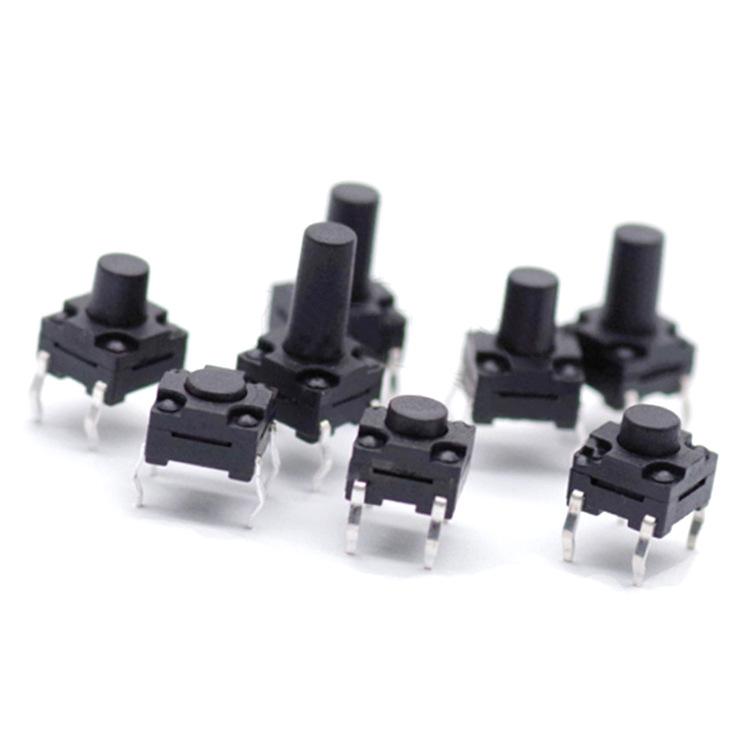

IP67Black Dip 6x6mm IP67 micro push button tact switch
Basic Information
Type: Ip67 waterproof tact switch
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Life: 100,000cycles
Product height: 4.3mm-13mm
Benefits
• Compact size 6x6mm
• Various operating heights
• Multiple options for operating force
• Waterproof Level
• Rohs Compliant and compatible

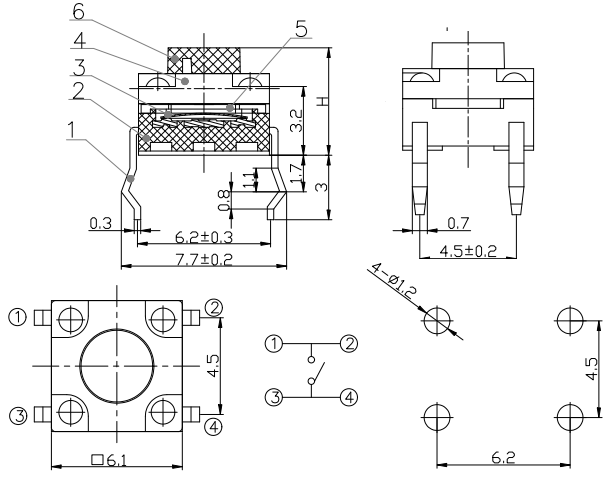

4pin tact switch datasheet
Packing
| Model | Inner Packing | Carton Size | Quantity(PCS) | N.W | G.W |
| KAN0616 (4.3H-5.5H) | 1000pcs/bag,20box/carton | 45*35*28 CM | 60000 | 18KG | 20KG |
|
KAN0616 (6H-13H) |
1000pcs/bag,20box/carton |
45*35*28 CM |
40000 | 13KG | 15KG |
What is a waterproof switch ？
The waterproof tact switch is an electronic switch with waterproof function. It uses a triggering method that can be operated with a light press.
It has the characteristics of waterproof, dustproof, wear-resistant, and long life. It is widely used in outdoor equipment, industrial control, automotive
electronic equipment, etc.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.

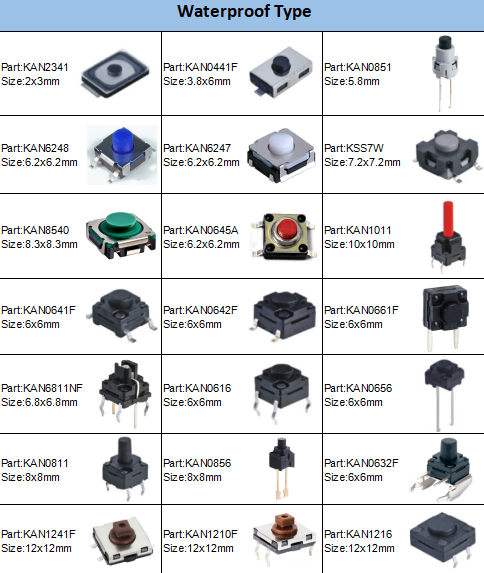

Categories
KAN0656: DC 12v 50mA, smd, water resistance type tact switch.
KAN0616: Dip switch, water resistance IP67, 6*6mm mini tact switch.
KAN0611: DC 12v 50mA, 6*6mm, 4 pins tact switch.
6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch.
12V IP67 waterproof switch push button tact switch china, 4pin dip tact switch, 100,000/200,000 cycles for optional,use for Kitchen appliances, smart toilet covers. Small appliances, white electricity, black electricity require a variety of operational switches for waterproof construction.
This kind of switch is silent, often used in car industry.
Item: KAN0641 Size: 6*6*H (4.3-18mm) Rating: 12VDC 50mA Operating life: 60,000/ 80,000/ 100,000 cycles Operating force: 100gf, 160gf, 260gf MOQ: 1000
KAN0673: 6×6mm, side horizontal type tact switch.
