Home Switch Tactile switch 68 series tact switch SMT Led Tact Switch
6.7*6.7mm 4 pin tact switch 6.7*6.7mm 4 pin tact switch 6.7*6.7mm 4 pin tact switch 6.7*6.7mm 4 pin tact switch

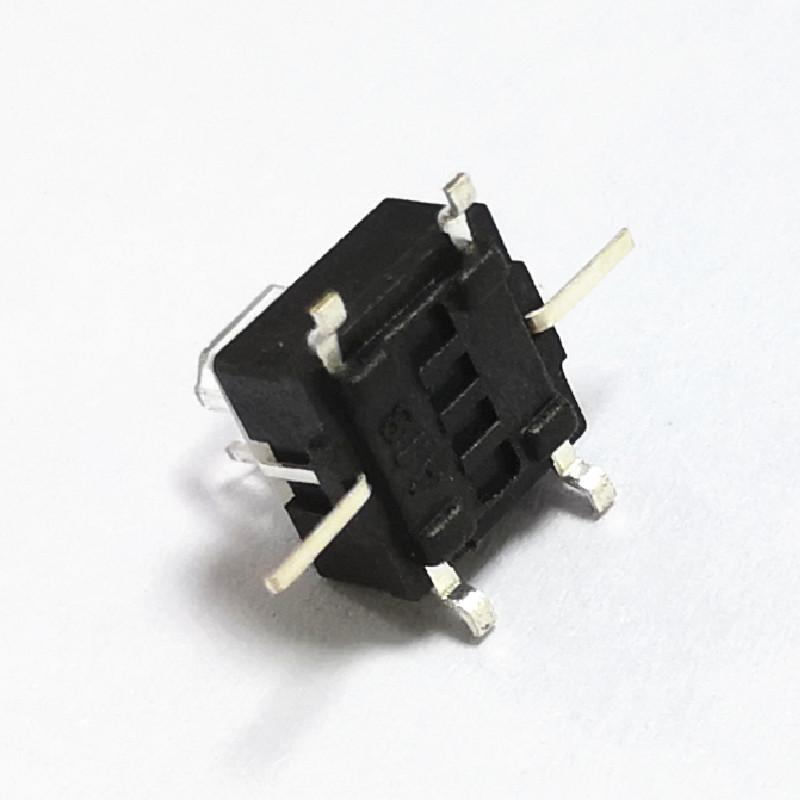

SMT Led Tact Switch

FUNCTION: N.O. momentary action; TERMINALS: SMT

  • Brand:

    Gangyuan

  • Item NO.:

    KAN6841A-0581C-084

  • Payment:

    100% T/T Before Production

  • Product Origin:

    Zhejiang, China (Mainland)

  • Color:

    Black and White

  • Shipping Port:

    Ningbo/Shenzhen

  • Lead Time：

    7-14 Working Days For Payment

  • Outline (mm)

    6.80mm x 6.80mm

  • Mounting Type

    Surface Mount

  • lllumination

    llluminated

  • IP Rating

    IP4X
Contact Us

  • Product Detail

Several LED colors and bi-color options tact switch

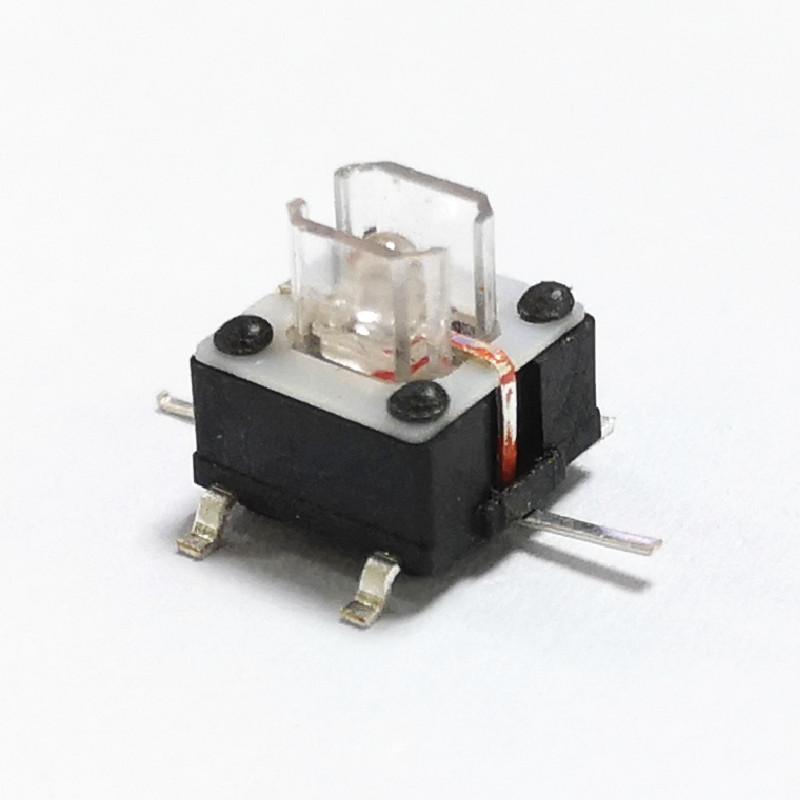

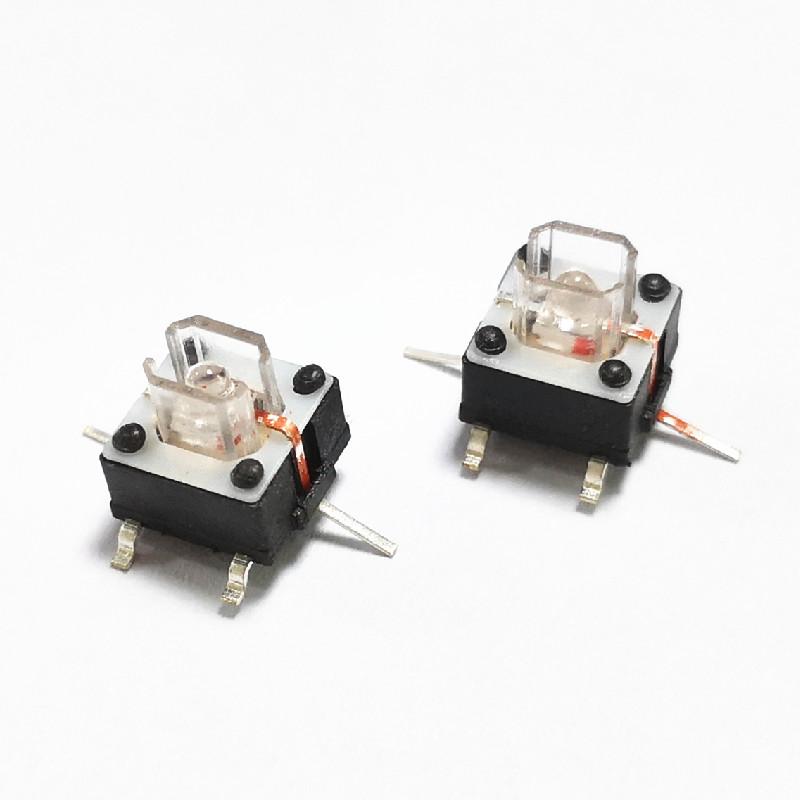

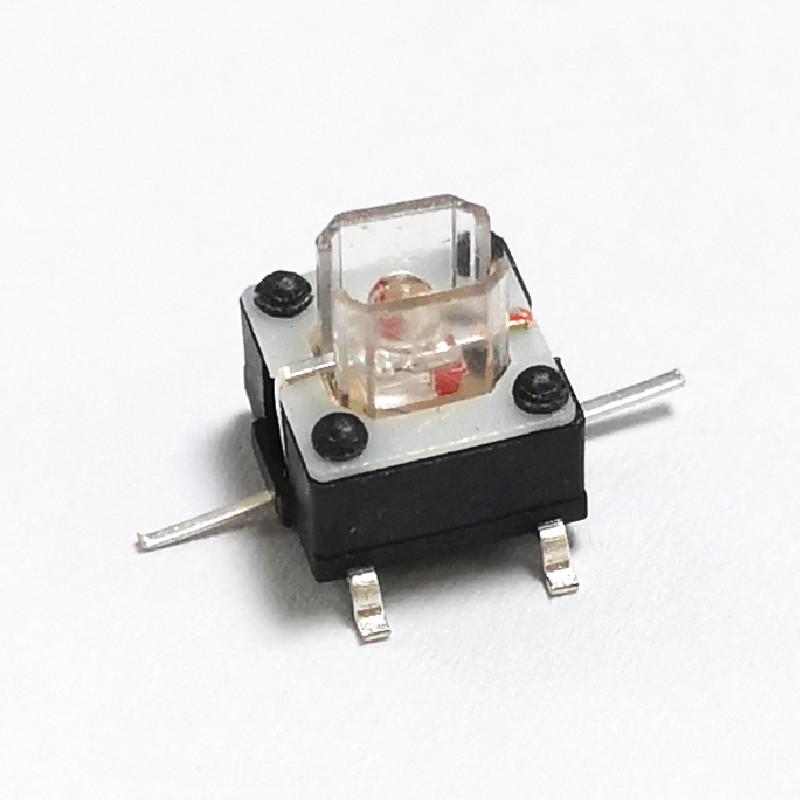

Gullwing illuminated tact switch


Parameter


push button tact switch led


Contact Resistance: ≤0.03Ω

Insulation Resistance: ≥100MΩ

Operating Force: 250±30gf

Life: 80000 cycles

Full Travel: 0.25±0.1mm

Compressive strength: AC 250V 50Hz/1min

Stem Strength: 20N.min

LED light color: red, orange, yellow, green, blue, bi-color, etc.


Drawing



Related led tact siwtch

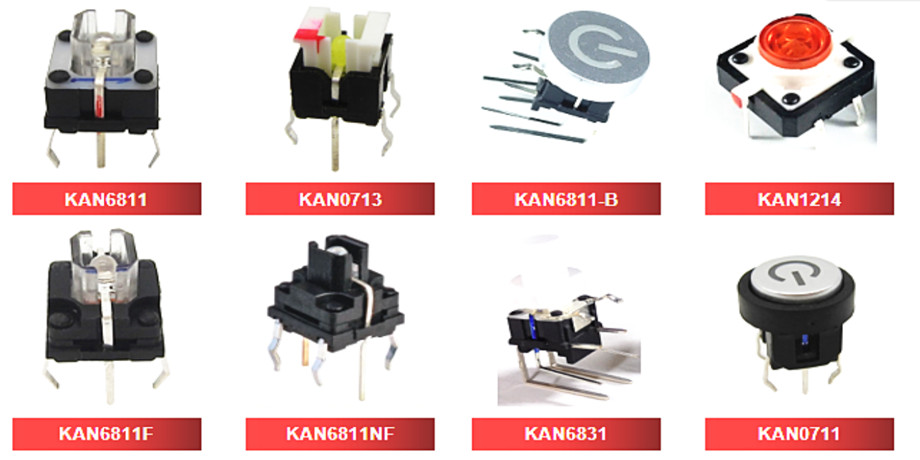

Led tact switch type


  • Vertical through hole models
  • SMT models
  • Right angle through hole models
  • Waterproof models


Typical Applications


• Consumer electronics

• Server/storage

• Medical devices

• Test/Measurement/Instrumentation

• Audio/Video

• Computers/Peripherals

• Security
