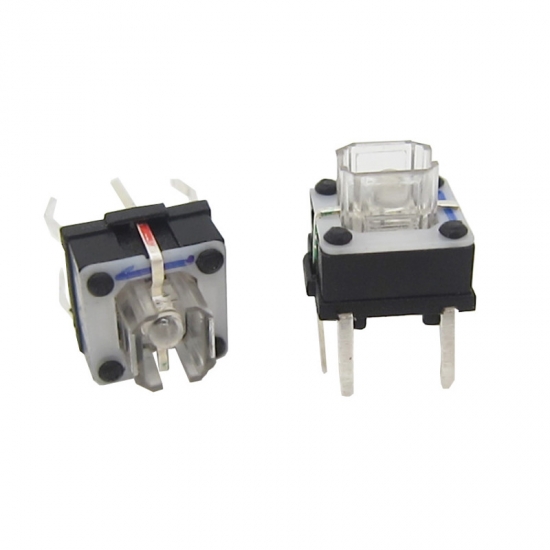

smd tact switch with led light

5 way 6.8x6.8mm 12vdc illumin min small tact switch with led light

Brand:
Gangyuan
Item NO.:
KAN6811-0580E
Order(MOQ):
10pcs
Payment:
100% T/T Before Production
Color:
black and white
Shipping Port:
Ningbo/Shenzhen
Lead Time：
3 working days for payment

Outline (mm)
6.80mm x 6.80mm
Mounting Type
Through Hole
lllumination
llluminated
IP Rating
IP4X

Product Detail

5 way 6.8x6.8mm 12vdc illumin min small tact switch with led light

Basic Information

Product name	LED Tactile Switch
Operation force	200gf
Full travel	0.25±0.1mm
Return force	0.4N MIN
low resistance	-30±2℃,96h
Heat resistance	80±2℃,96h
Sulfuration resistance	72h,40±2℃
Salt Mist	8h±1h,35℃±2℃
Operation life	500,000 cycles

Dimension

led tact switch.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact s

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
