led tact switch

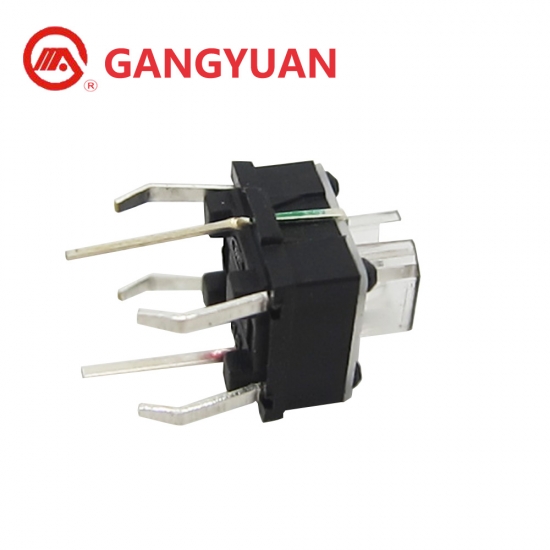

Manufacturing colorful 4 pin led push on push off tact switch

Brand:
Gangyuan
Item NO.:
KAN6811-0580E100-93
Order(MOQ):
10pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black and white
Shipping Port:
Ningbo/Shenzhen
Lead Time：
14 working days for payment

Outline (mm)
6.80mm x 6.80mm
Mounting Type
Through Hole
lllumination
llluminated
IP Rating
IP4X

Product Detail

Manufacturing colorful 4 pin led push on push off tact switch

Basic Information

Model No.:	KAN6811-0580E100-93 GP
Dimension:	6.8*6.8mm
Operating force:	100gf±50gf
Life cycles:	1,000,000 times
DC rating:	12V DC, 50mA (effective value)
Full travel :	0.25±0.10 mm

Dimension

illuminated tact switches.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact s

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
